GCRL 80 SW NADELLA

Brand - NADELLA
Item Number - GCRL 80 SW NADELLA
Also Known As - GCRL80SW
Category - Cam Followers with Cylindrical Outer Ring

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 80 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 30 mm
Diameter (L) - 100 mm
Dimension (B1) - 37 mm
Dimension (B2) - 63 mm
Threading (G) - M30x1.5
Dimension (G1) - 32 mm
Dimension (C) - 35 mm
Dimension (C1) - 1 mm
Dimension (dA) - 68 mm
Dimension (B3) - 61 mm
Dimensoin (r) - 1 mm
Dimension (W) - 14 mm
Dimension (P) - 30 mm
Dimension of Eccentric Bearing (de) - 42 mm
Dimension of Eccentric Bearing (k) - 3 mm
Dimension of Eccentric Bearing (M) - 50 mm
Dimension of Eccentric Bearing (Be) - 27 mm
Dimension of Eccentric Bearing (Pe) - 20.6 mm
Load Coefficient (Cw) - 58000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 50000 N
Static Load Coefficient for Cam Followers without Stud (For) * - 93000 N
Speed Limit with Grease - 900 RPM
Weight - 2.074 kg
Clamping Torque - 450 Nm

Description of Prefix:
GCRL - Cam Followers with Cylindrical Outer Ring

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - No Seal

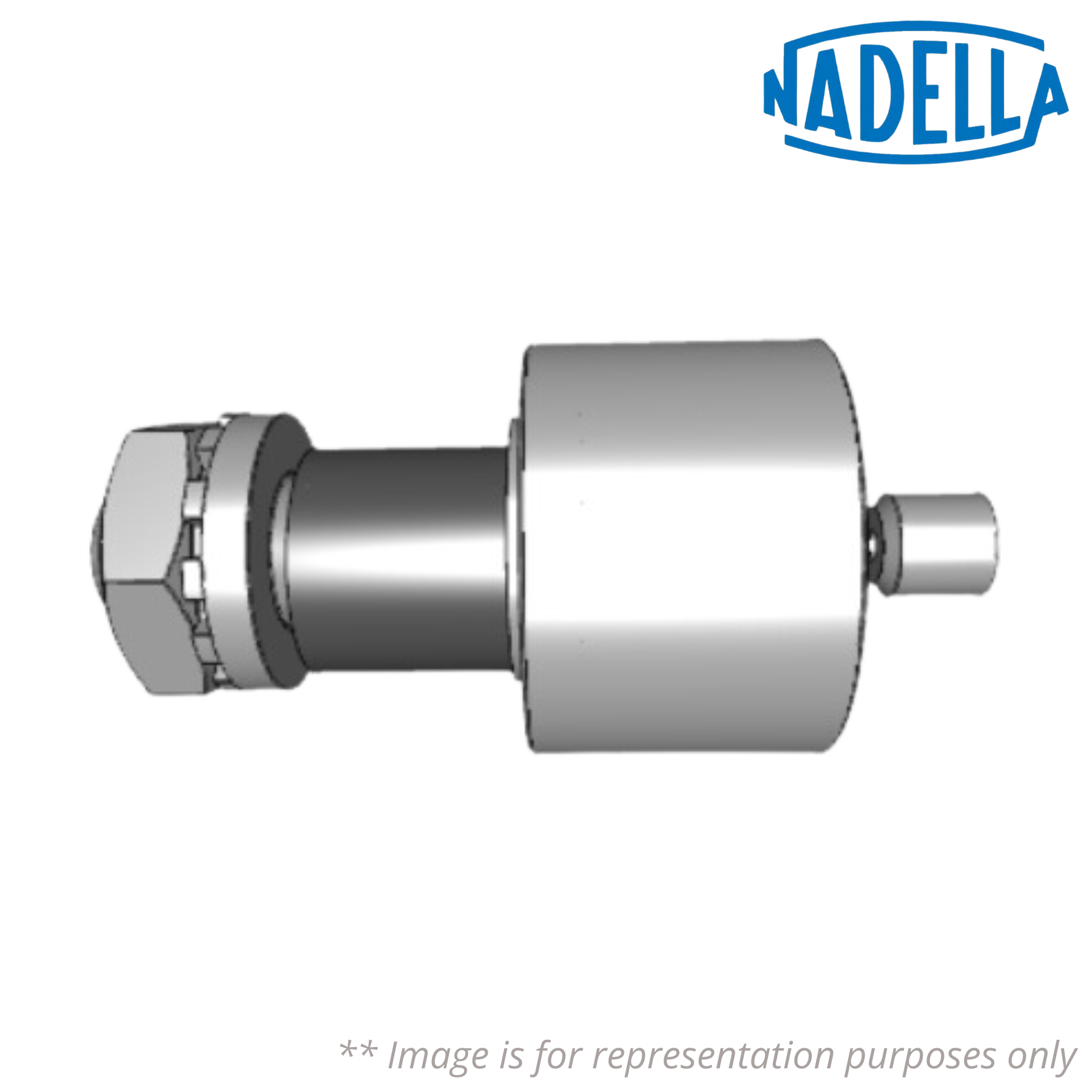

♦♦ Images are for representation purposes only
