GCRL 30 EEM NADELLA

Brand - NADELLA
Item Number - GCRL 30 EEM NADELLA
Also Known As - GCRL30EEM
Category - Cam Followers with Cylindrical Outer Ring

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 30 mm
Hole diameter for assembly of concentric cam follower without stud (d1) - 12 mm
Diameter (L) - 40 mm
Dimension (B1) - 15.2 mm
Dimension (B2) - 25 mm
Threading (G) - M12x1.5
Dimension (G1) - 13 mm
Dimension (C) - 14 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 24.8 mm
Dimension (B3) - 21 mm
Dimensoin (r) - 0.6 mm
Dimension (W) - 6 mm
Dimension (P) - 12 mm
Dimension of Eccentric Bearing (de) - 16 mm
Dimension of Eccentric Bearing (k) - 1 mm
Dimension of Eccentric Bearing (Be) - 11 mm
Dimension of Eccentric Bearing (Pe) - 9.5 mm
Load Coefficient (Cw) - 13000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 7900 N
Static Load Coefficient for Cam Followers without Stud (For) * - 15000 N
Speed Limit with Grease - 2600 RPM
Weight - 0.118 kg
Clamping Torque - 26 Nm

Description of Suffixes and Prefixes:
GCRL - Cam Follower with Cylindrical Outer Ring
EEM - Metal Seal

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - Metal Seal

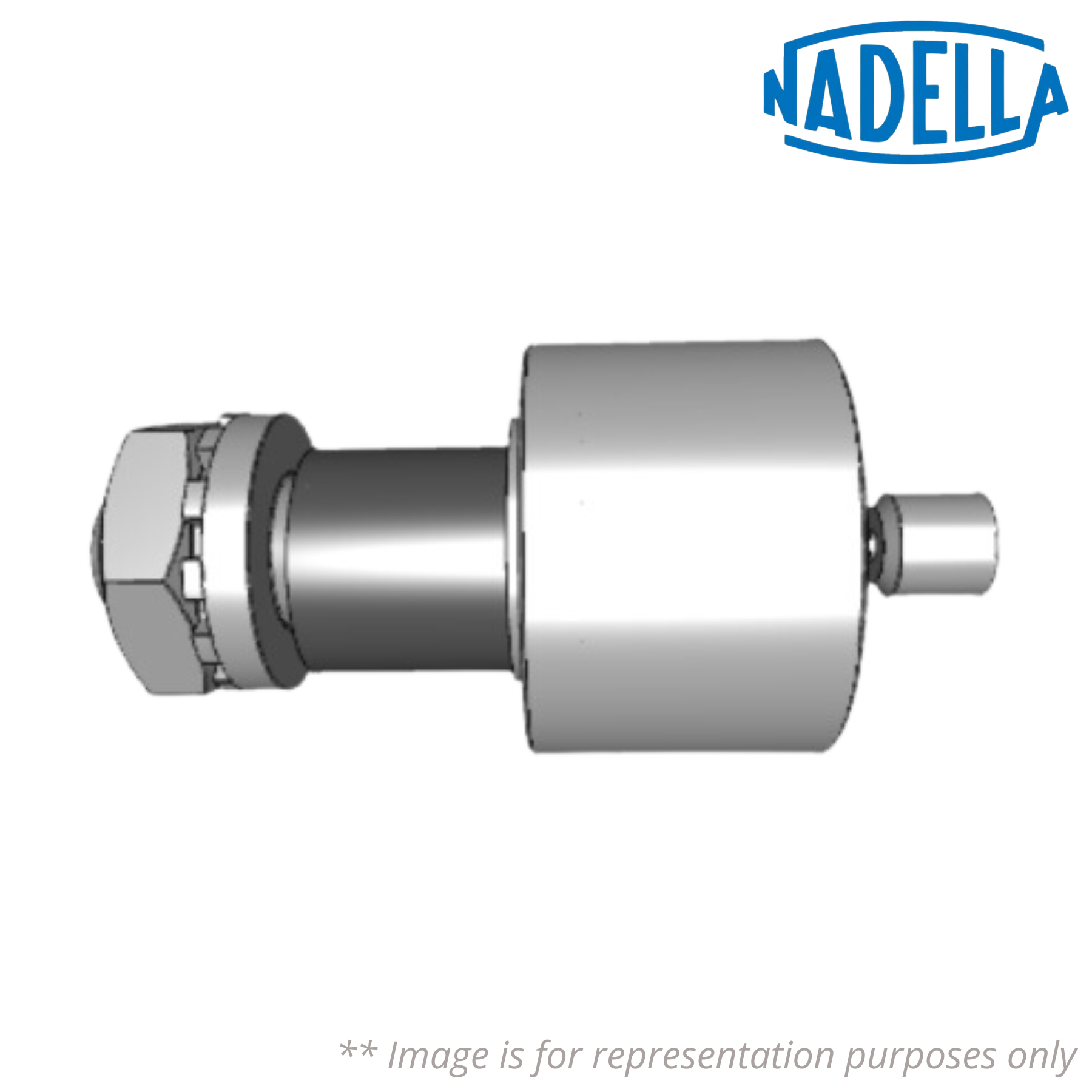

♦♦ Images are for representation purposes only
