Description
Brand - NADELLA

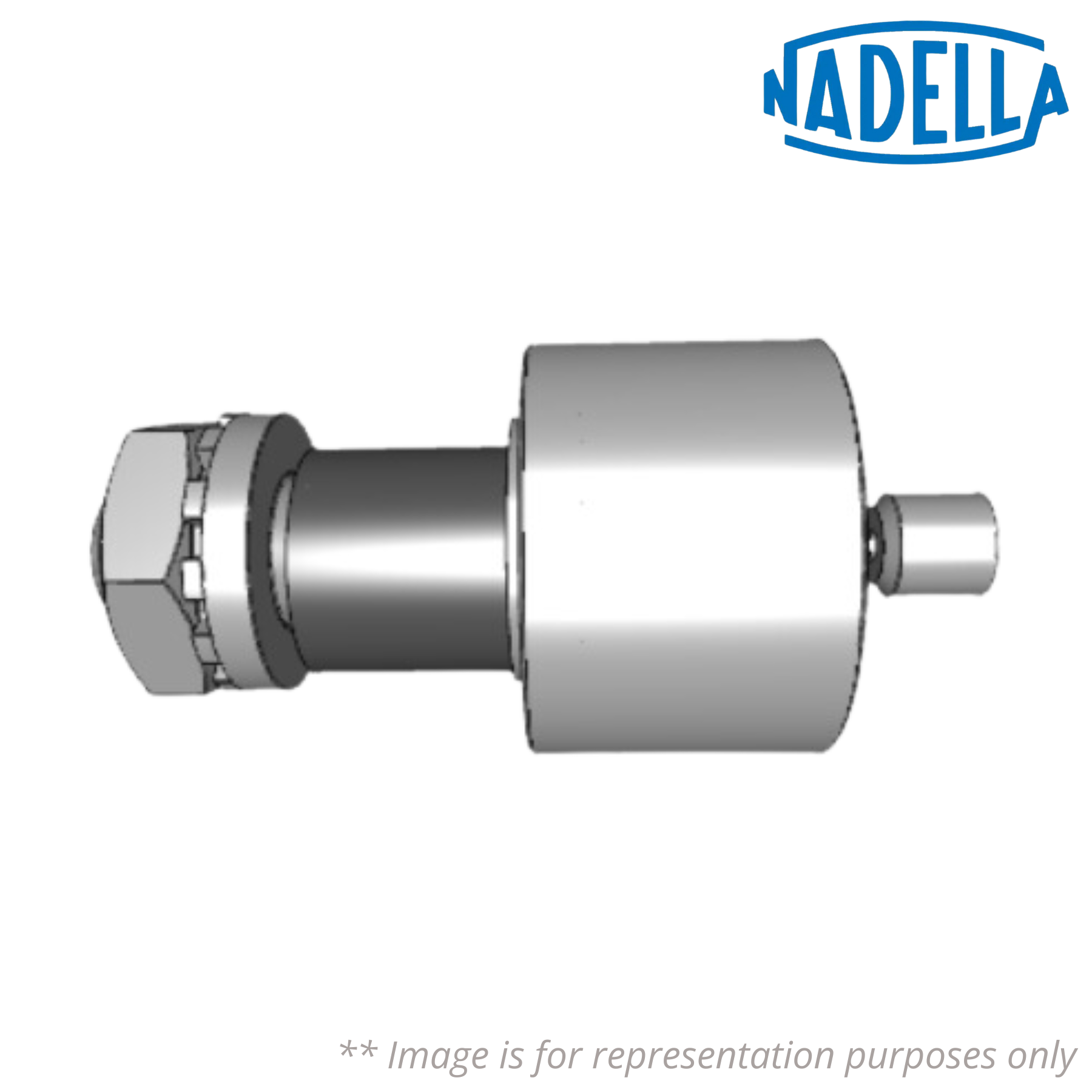

Item Number - GCRL 16 EE SW NADELLA
Also Known As - GCRL16EESW
Category - Cam Followers Cylindrical Outer Ring
Outer Diameter (D) mm - 16
Hole Diameter (d1) mm - 6
L (mm) - 28
B1 (mm) - 12.2
B2 (mm) - 16
Threading (G) mm - M6x1
G1 (mm) - 8
C (mm) - 11
C1 (mm) - 0.6
dA (mm) - 13.3
B3 (mm) - 10.4
r (mm) - 0.3
W (mm) - 4
P (mm) - 6.4
Eccentric bearing (de) mm - 9
Eccentric bearing (k) mm - 0.5
Eccentric bearing (Be) mm - 8
Eccentric bearing (Pe) mm - 5.6
Load Coefficient (Cw) N - 4900
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 1200
Static Load Coefficient for Cam Followers without Stud (For) N - 2300
Speed Limit with Grease (min-1) - 5000
Weight (kg) - 0.024
Clamping Torque (Nm) - 3
Seal - Plastic Seal
