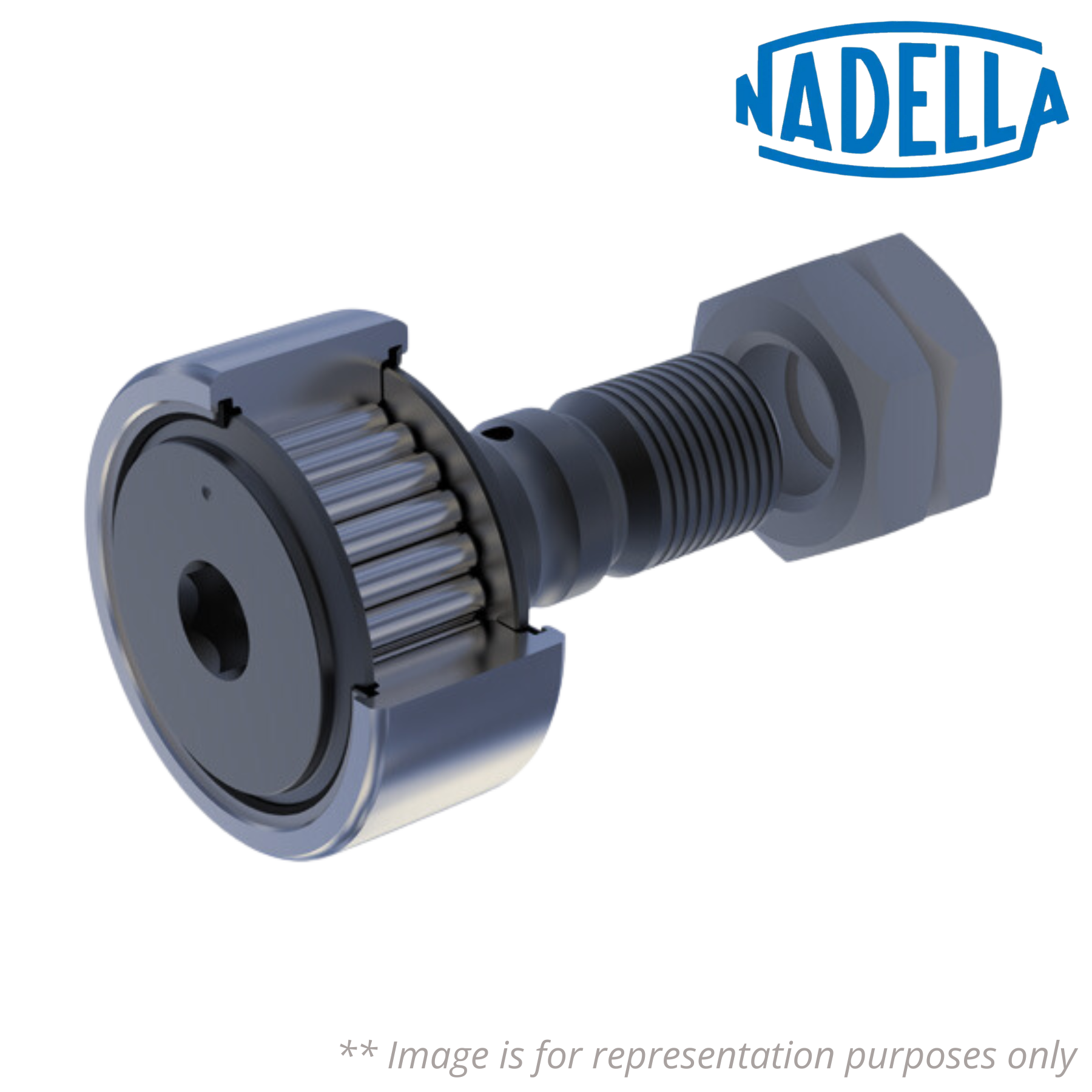

GCR 47 EEM SW NADELLA

Brand - NADELLA
Item Number - GCR 47 EEM SW NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR47EEMSW

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 47 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 20 mm
Dimension (L) - 66 mm
Dimension (B1) - 25.6 mm
Dimension (B2) - 40.5 mm
Threading (G) - M20x1.5
Dimension (G1) - 21 mm
Dimension (C) - 24 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 38.7 mm
Dimension (B3) - 35 mm
Dimension (r) - 1 mm
Dimension (Rp) * - 1200 mm
Dimension (W) - 14 mm
Dimension(P) - 20 mm

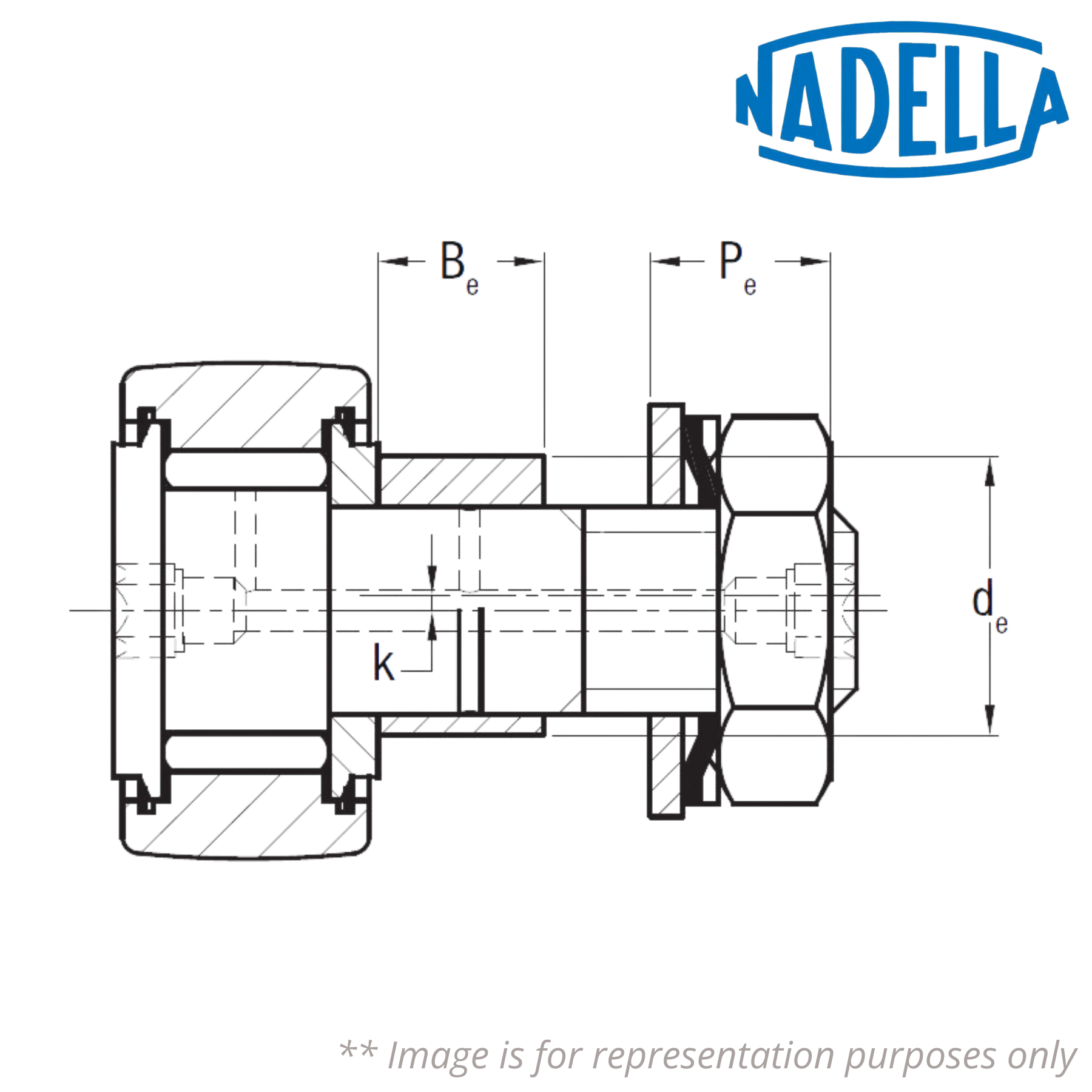

Dimension of Eccentric Bearing (de) ** - 27 mm
Dimension of Eccentric Bearing (k) - 2 mm
Dimension of Eccentric Bearing (Be) - 17.5 mm
Dimension of Eccentric Bearing (Pe) **** - 14.4 mm
Load Coefficient (Cw) - 27000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 22000 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 35000 N
Speed Limit with Grease - 1500 RPM
Weight - 0.5 kg
Clamping Torque - 120 Nm

Description of Suffixes and Prefixes:
GCR - Cam Followers with Stud with Eccentric Collar
EEM - Metal Seal

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** Hole diameter for assembly of the eccentric cam follower without stud: de H7
*** Fr and For load for cam follower without stud, with no eccentric collar
**** GCR eccentric cam followers with stud are supplied with eccentric bearing already fitted, clamping nut, cogged washer and support surface washer

• Seal - Metal Seal

♦♦ Images are for representation purposes only
