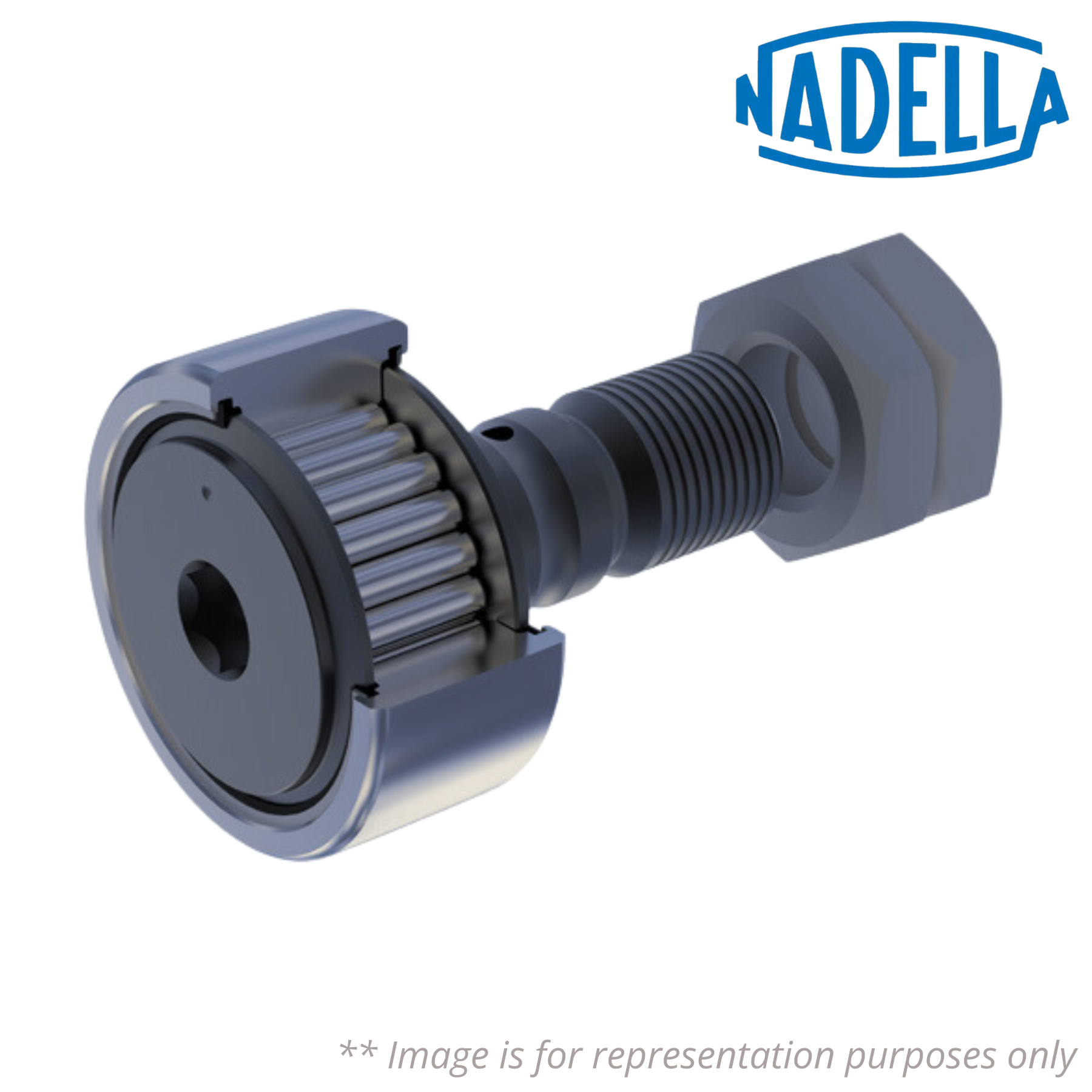

GCR 35 EEM SW NADELLA

Brand - NADELLA
Item Number - GCR 35 EEM SW NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR35EEMSW

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 35 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 16 mm
Dimension (L) - 52 mm
Dimension (B1) - 19.6 mm
Dimension (B2) - 32.5 mm
Threading (G) - M16x1.5
Dimension (G1) - 17 mm
Dimension (C) - 18 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 28.8 mm
Dimension (B3) - 26 mm
Dimension (r) - 0.6 mm
Dimension (Rp) * - 800 mm
Dimension (W) - 10 mm
Dimension(P) - 16 mm
Dimension of Eccentric Bearing (de) ** - 21 mm
Dimension of Eccentric Bearing (k) - 1.5 mm
Dimension of Eccentric Bearing (Be) - 14 mm
Dimension of Eccentric Bearing (Pe) **** - 12.2 mm
Load Coefficient (Cw) - 18000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 14000 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 23000 N
Speed Limit with Grease - 2100 RPM
Weight - 0.22 kg
Clamping Torque - 64 Nm

Description of Suffixes and Prefixes:
GCR - Cam Followers with Stud with Eccentric Collar
EEM - Metal Seal

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** Hole diameter for assembly of the eccentric cam follower without stud: de H7
*** Fr and For load for cam follower without stud, with no eccentric collar
**** GCR eccentric cam followers with stud are supplied with eccentric bearing already fitted, clamping nut, cogged washer and support surface washer

• Seal - Metal Seal

♦♦ Images are for representation purposes only
