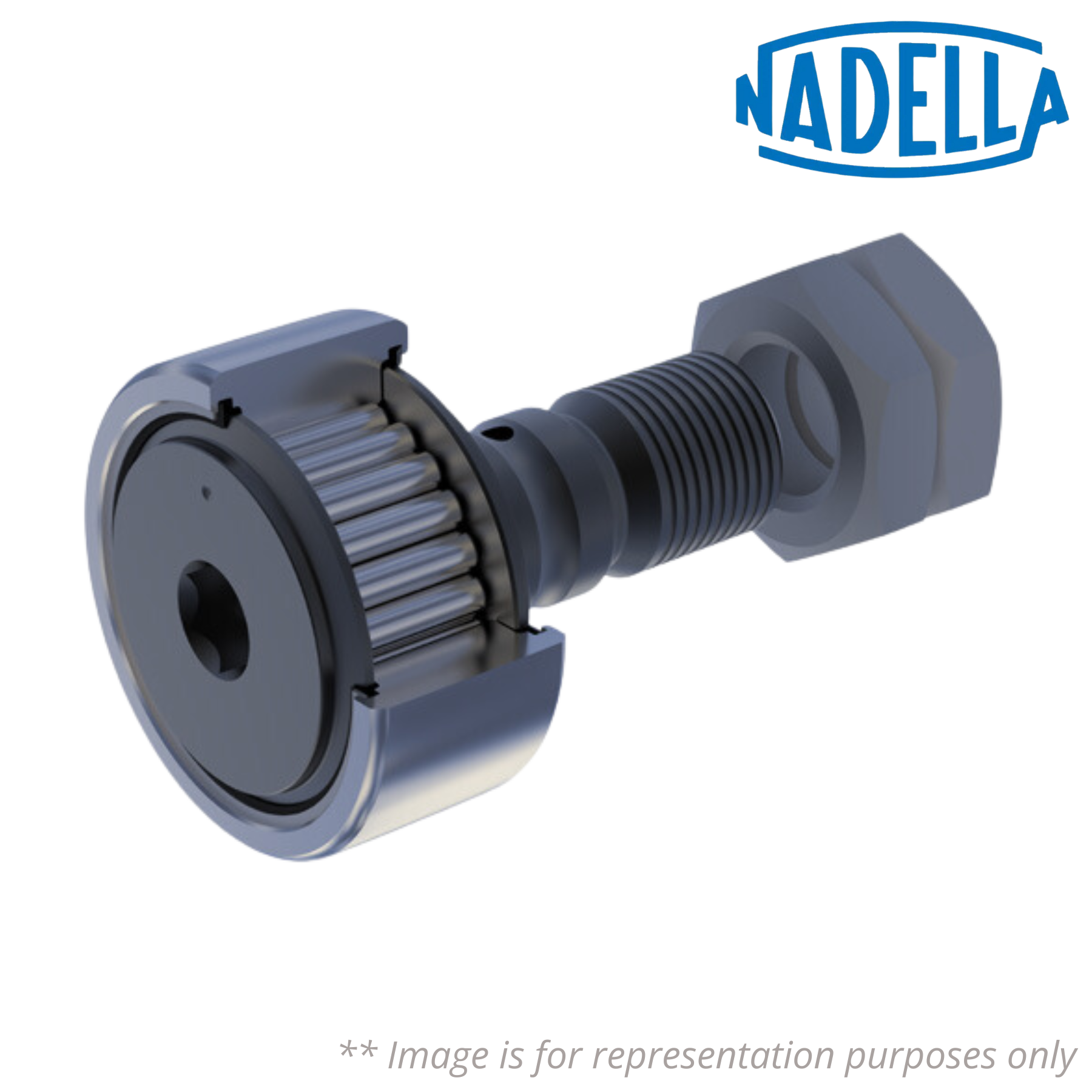

GCR 26 EE NADELLA

Brand - NADELLA
Item Number - GCR 26 EE NADELLA
Category - Cam Followers with Stud (Eccentric Collar)
Also Known As - GCR26EE

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 26 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 10 mm
Dimension (L) - 36 mm
Dimension (B1) - 13.2 mm
Dimension (B2) - 23 mm
Threading (G) - M10x1.25
Dimension (G1) - 12 mm
Dimension (C) - 12 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 20.8 mm
Dimension (B3) - 18 mm
Dimension (r) - 0.3 mm
Dimension (Rp) * - 600 mm
Dimension (W) - 4 mm
Dimension(P) - 10 mm

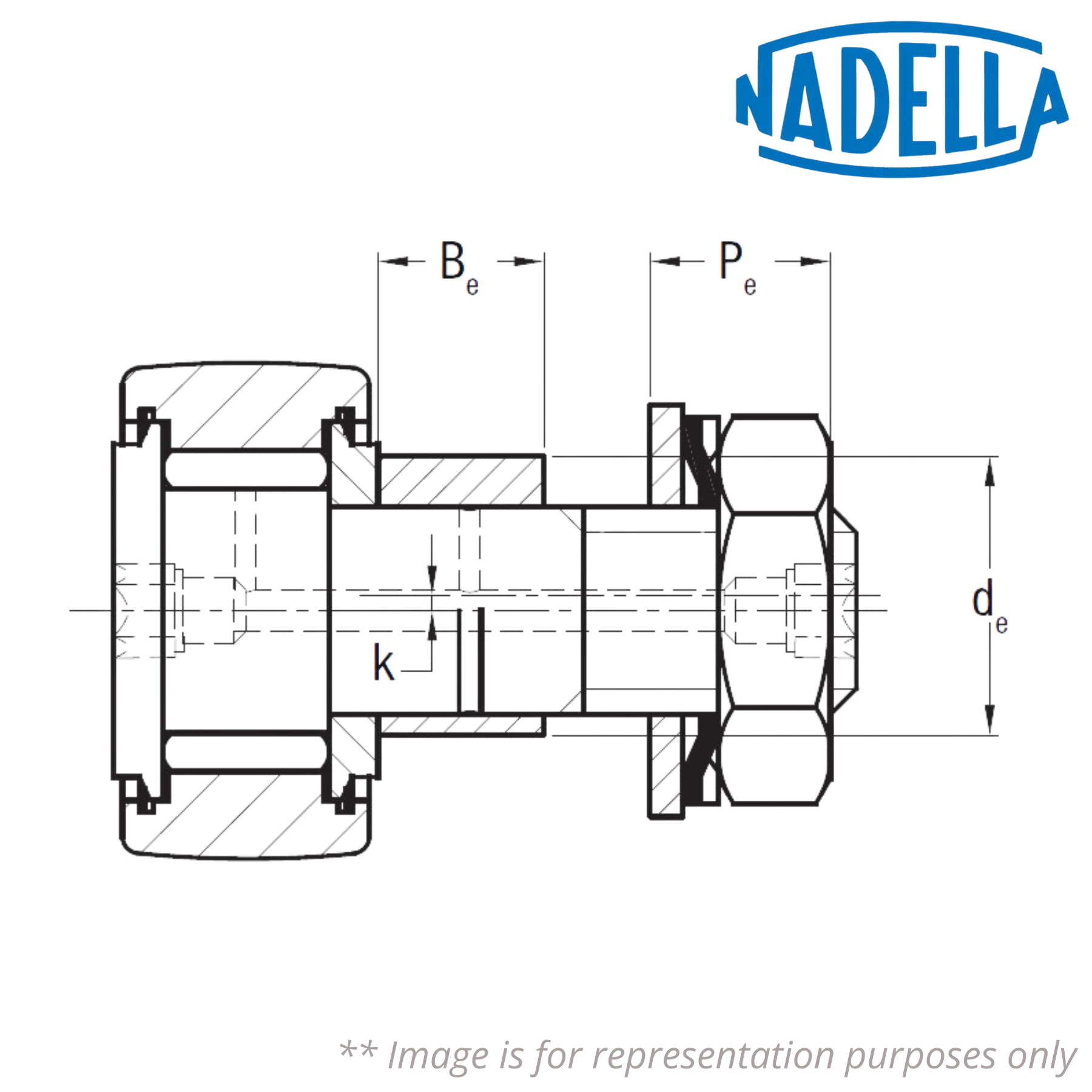

Dimension of Eccentric Bearing (de) ** - 14 mm
Dimension of Eccentric Bearing (k) - 1 mm
Dimension of Eccentric Bearing (Be) - 11 mm
Dimension of Eccentric Bearing (Pe) **** - 7.9 mm
Load Coefficient (Cw) - 8600 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 5300 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 9800 N
Speed Limit with Grease - 3000 RPM
Weight - 0.08 kg
Clamping Torque - 20 Nm

Description of Suffixes and Prefixes:
GCR - Cam Followers with Stud with Eccentric Collar
EE - Plastic Seal

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** Hole diameter for assembly of the eccentric cam follower without stud: de H7
*** Fr and For load for cam follower without stud, with no eccentric collar
**** GCR eccentric cam followers with stud are supplied with eccentric bearing already fitted, clamping nut, cogged washer and support surface washer

• Seal - Plastic Seal

♦♦ Images are for representation purposes only
