GCL 85 EE SW NADELLA

Brand - NADELLA
Item Number - GCL 85 EE SW NADELLA
Also Known As - GCL85EESW
Category - Concentric Cam Followers with Stud

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 85 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 30 mm
Dimension (L) - 100 mm
Dimension (B1) - 37 mm
Dimension (B2) - 63 mm
Threading (G) - M30x1.5
Dimension (G1) - 32 mm
Dimension (C) - 35 mm
Dimension (C1) - 1 mm
Dimension (dA) - 68 mm
Dimension (B3) - 61 mm
Dimension (r) - 1 mm
Dimension (W) - 14 mm
Dimension (P) - 30 mm
Load Coefficient (Cw) - 61000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 50000 N
Static Load Coefficient for Cam Followers without Stud (For) * - 93000 N
Speed Limit with Grease - 900 RPM
Weight - 2.235 kg
Clamping Torque - 450 Nm

Description of Suffixes and Prefixes:
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring
EE - Plastic Seal

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - Plastic Seal

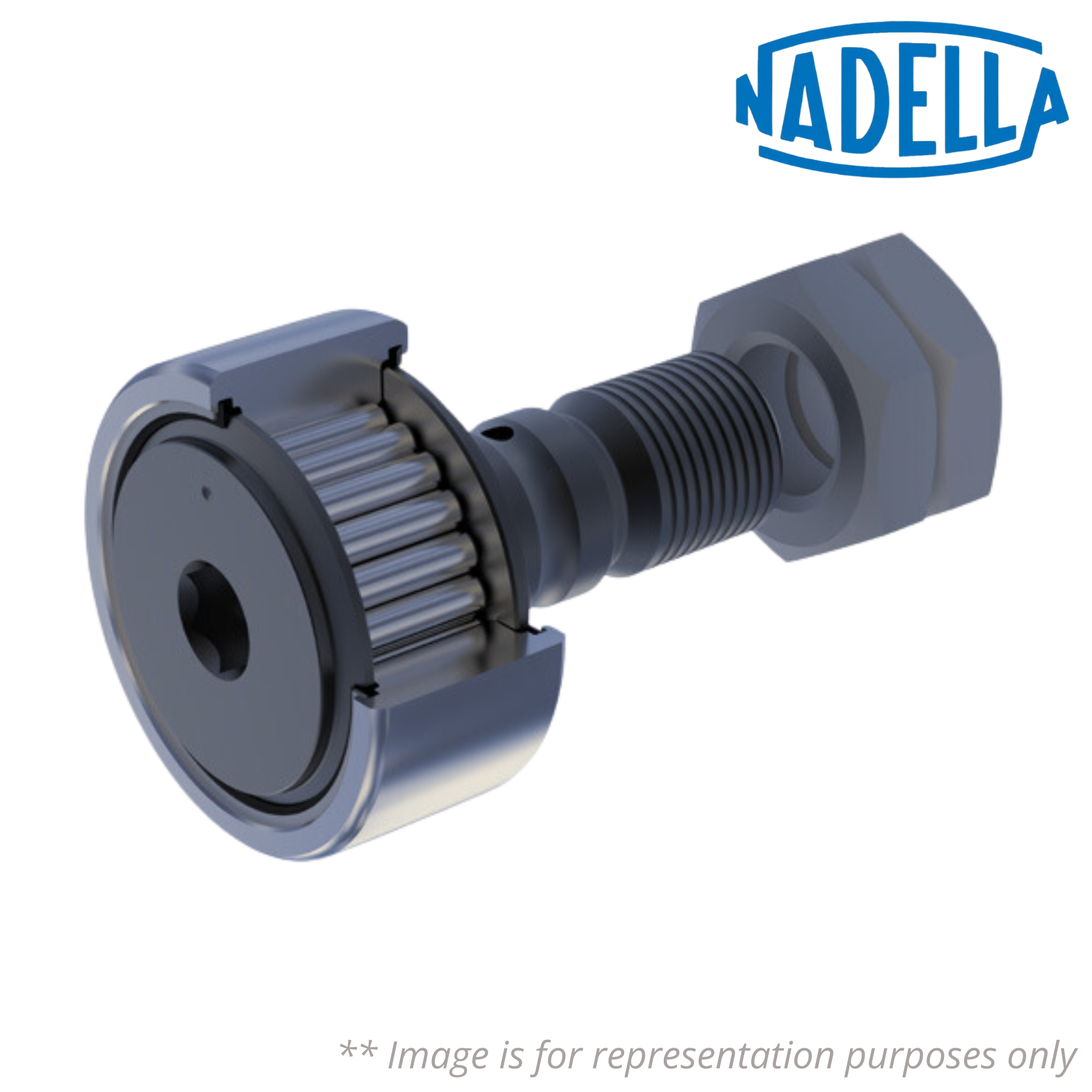

♦♦ Images are for representation purposes only
