GCL 72 SW NADELLA

Brand - NADELLA
Item Number - GCL 72 SW NADELLA
Also Known As - GCL72SW
Category - Concentric Cam Followers with Stud

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 72 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 24 mm
Dimension (L) - 80 mm
Dimension (B1) - 30.6 mm
Dimension (B2) - 49.5 mm
Threading (G) - M24x1.5
Dimension (G1) - 25 mm
Dimension (C) - 29 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 52 mm
Dimension (B3) - 45 mm
Dimension (r) - 1 mm
Dimension (W) - 12 mm
Dimension (P) - 24 mm
Load Coefficient (Cw) - 46000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 31000 N
Static Load Coefficient for Cam Followers without Stud (For) * - 58000 N
Speed Limit with Grease - 1200 RPM
Weight - 1.278 kg
Clamping Torque - 220 Nm

Description of Prefix:
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - No Seal

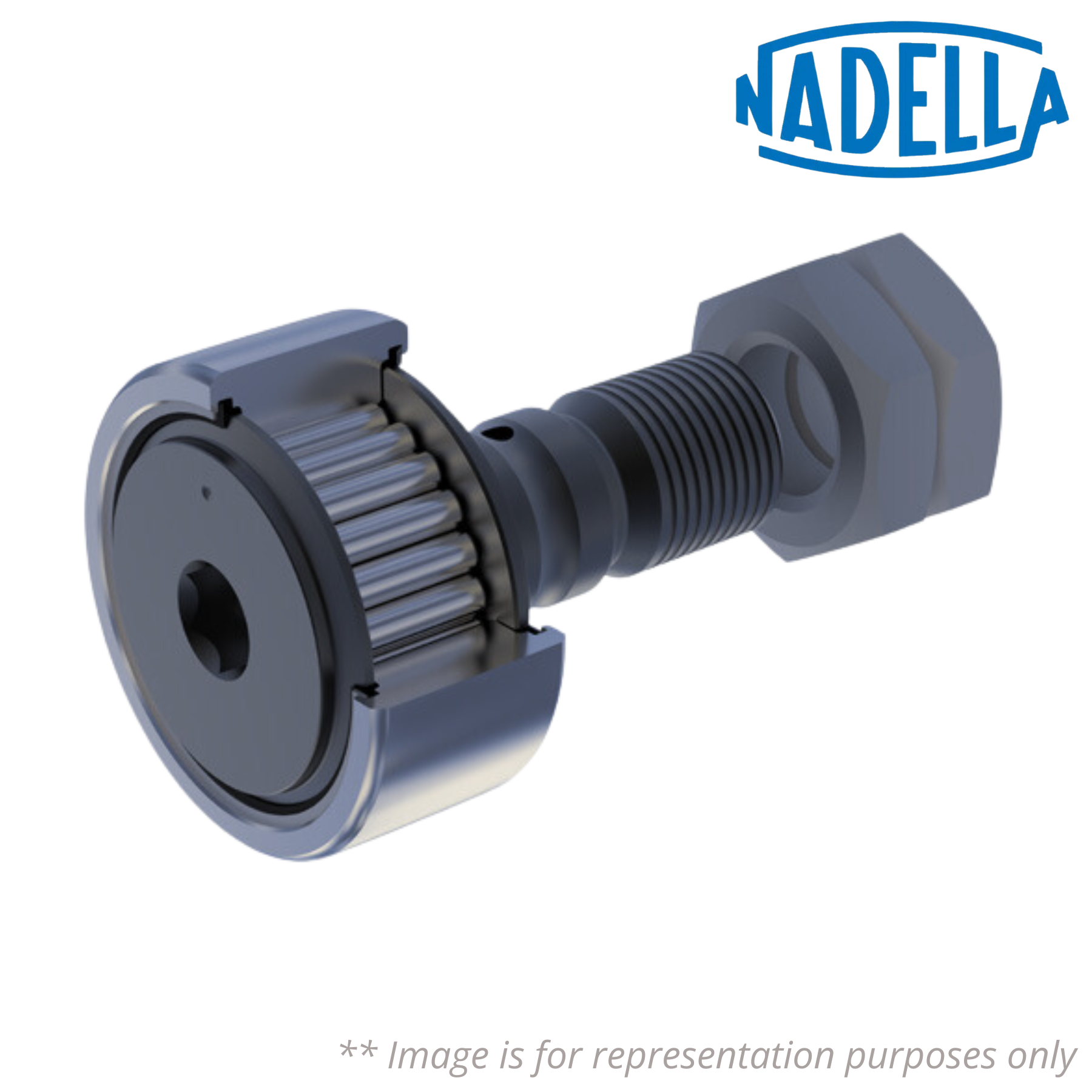

♦♦ Images are for representation purposes only
