GCL 62 EEM SW NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GCL 62 EEM SW NADELLA
Also Known As - GCL62EEMSW
Category - Concentric Cam Followers with Stud

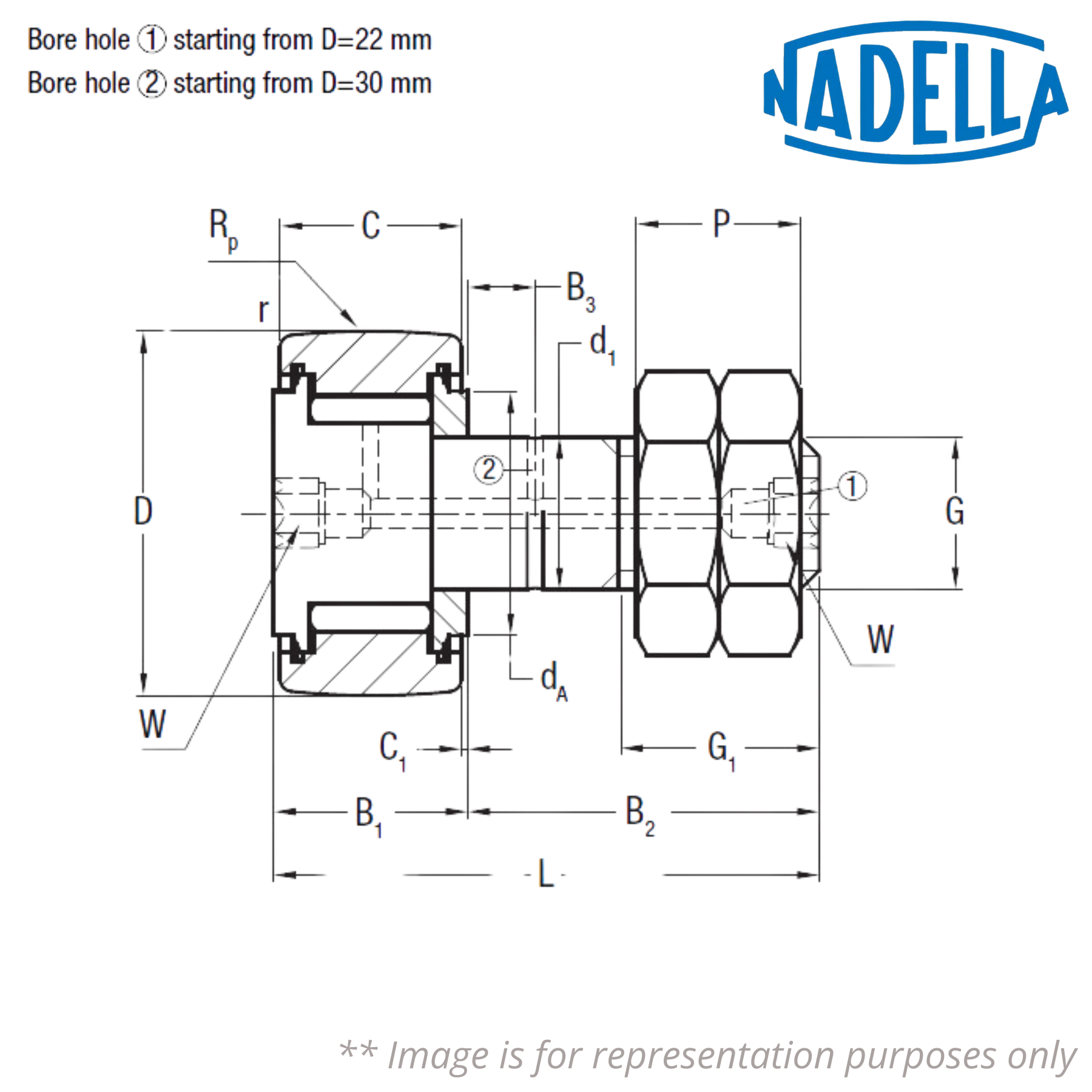

Outer Diameter (D) mm - 62
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 24
L (mm) - 80
B1 (mm) - 30.6
B2 (mm) - 49.5
Threading G (mm) - M24x1.5
G1 (mm) - 25
C (mm) - 29
C1 (mm) - 0.8
dA (mm) - 52
B3 (mm) - 45
r (mm) - 1
W (mm) - 12
P (mm) - 24
Load Coefficient (Cw) N - 42000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 31000
Static Load Coefficient for Cam Followers without Stud (For) N - 58000
Speed Limit with Grease (min-1) - 1200
Weight (kg) - 1.035
Clamping Torque (Nm) - 220

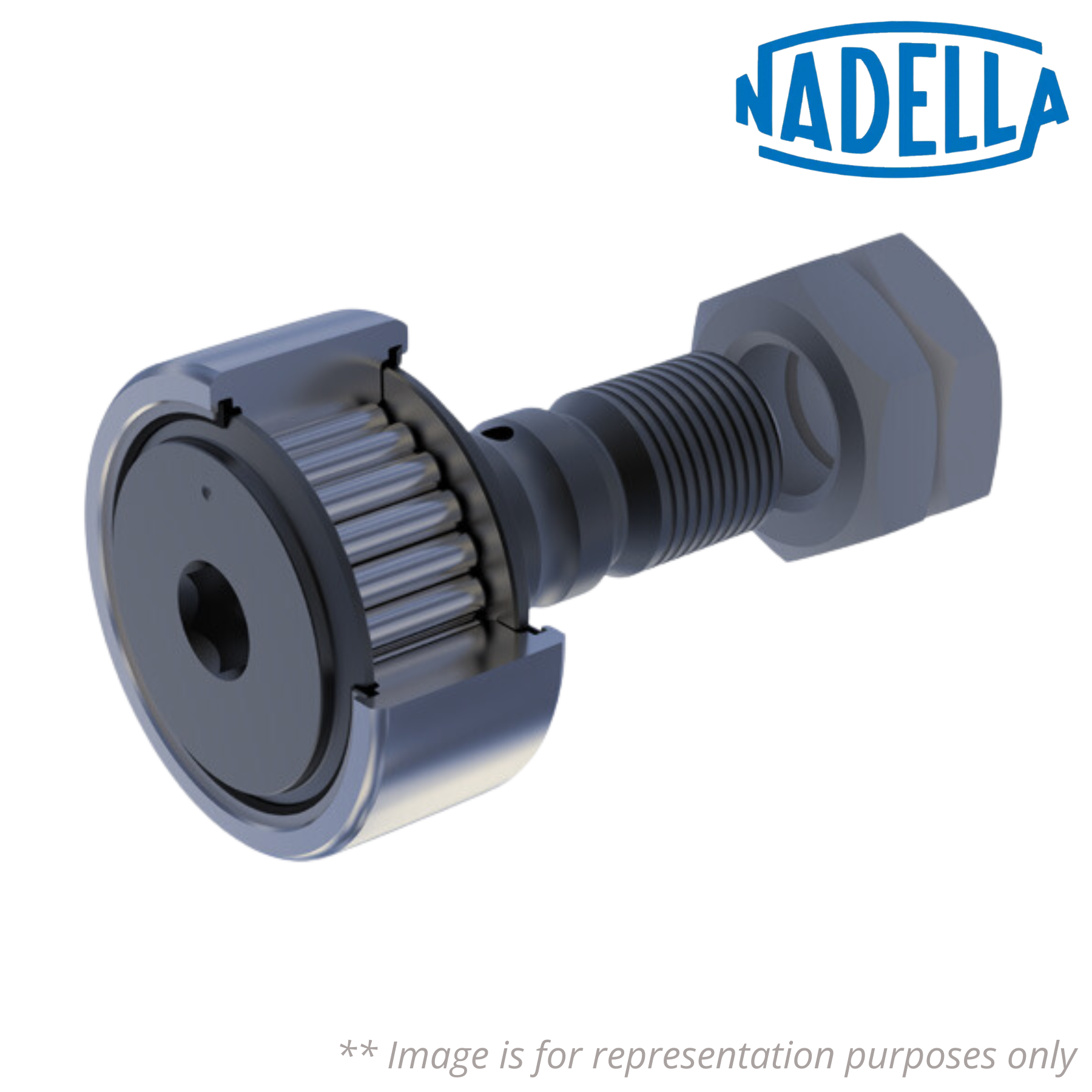

GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring
Seal - Metal Seal
