GCL 47 NADELLA

Brand - NADELLA
Item Number - GCL 47 NADELLA
Also Known As - GCL47
Category - Concentric Cam Followers with Stud

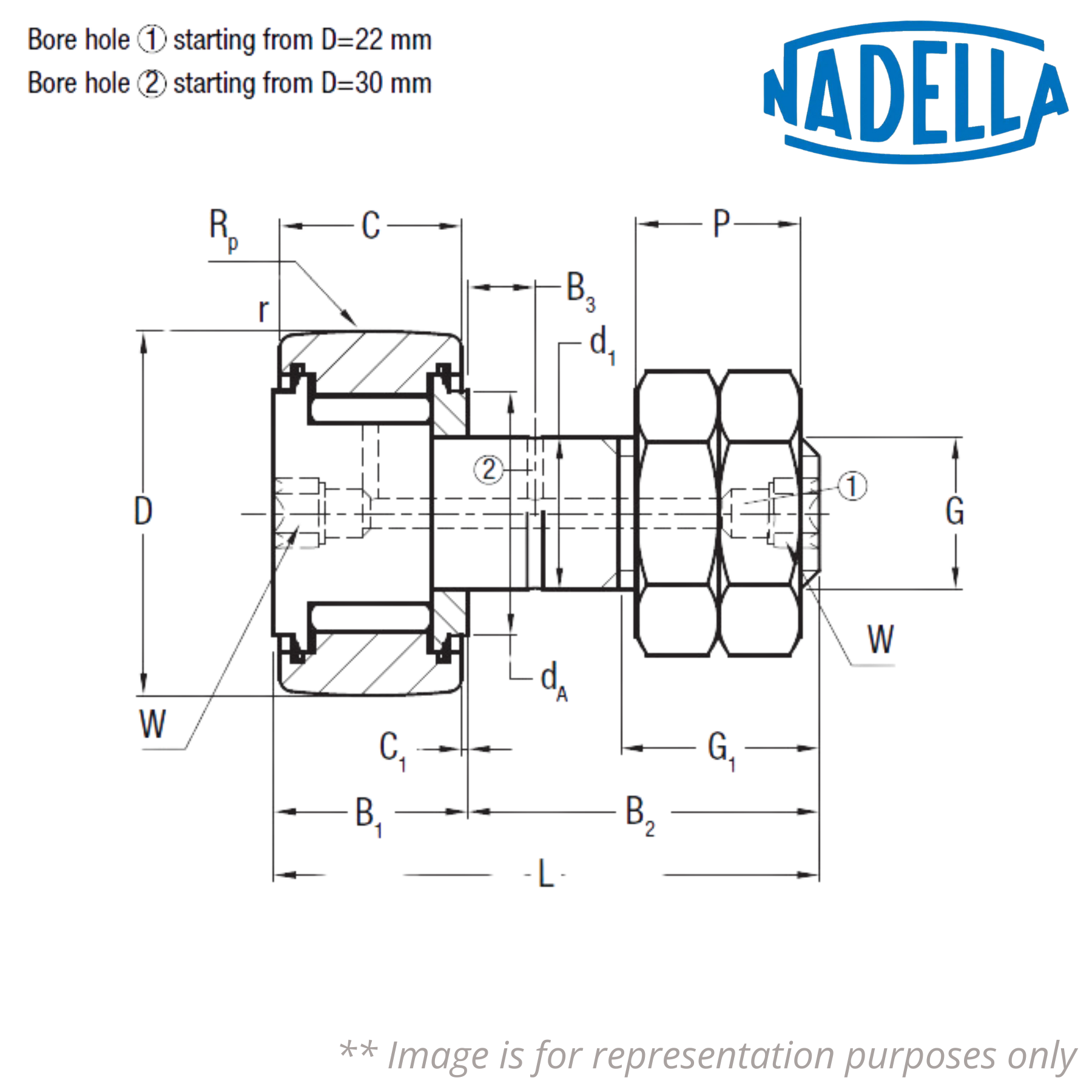

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 47 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 20 mm
Dimension (L) - 66 mm
Dimension (B1) - 25.6 mm
Dimension (B2) - 40.5 mm
Threading (G) - M20x1.5
Dimension (G1) - 21 mm
Dimension (C) - 24 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 38.7 mm
Dimension (B3) - 35 mm
Dimension (r) - 1 mm
Dimension (W) - 14 mm
Dimension (P) - 20 mm
Load Coefficient (Cw) - 27000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 22000 N
Static Load Coefficient for Cam Followers without Stud (For) * - 35000 N
Speed Limit with Grease - 1500 RPM
Weight - 0.5 kg
Clamping Torque - 120 Nm

Description of Prefix:
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - No Seal

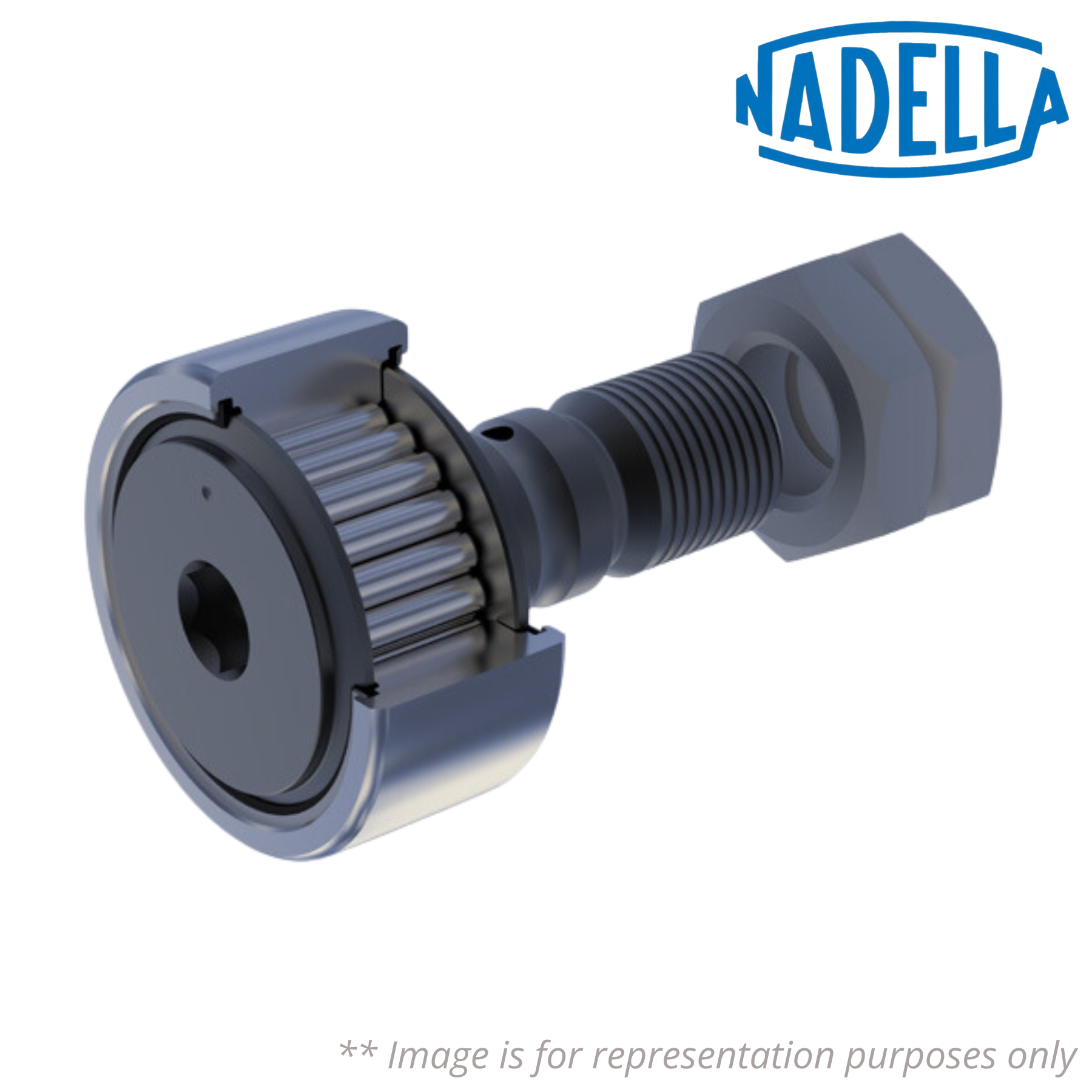

♦♦ Images are for representation purposes only
