GCL 40 SW NADELLA

Brand - NADELLA
Item Number - GCL 40 SW NADELLA
Also Known As - GCL40SW
Category - Concentric Cam Followers with Stud

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 40 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 18 mm
Dimension (L) - 58 mm
Dimension (B1) - 21.6 mm
Dimension (B2) - 36.5 mm
Threading (G) - M18x1.5
Dimension (G1) - 19 mm
Dimension (C) - 20 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 33.8 mm
Dimension (B3) - 31 mm
Dimension (r) - 1 mm
Dimension (W) - 12 mm
Dimension (P) - 18 mm
Load Coefficient (Cw) - 22000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 19000 N
Static Load Coefficient for Cam Followers without Stud (For) * - 34000 N
Speed Limit with Grease - 1800 RPM
Weight - 0.321 kg
Clamping Torque - 90 Nm

Description of Prefix:
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - No Seal

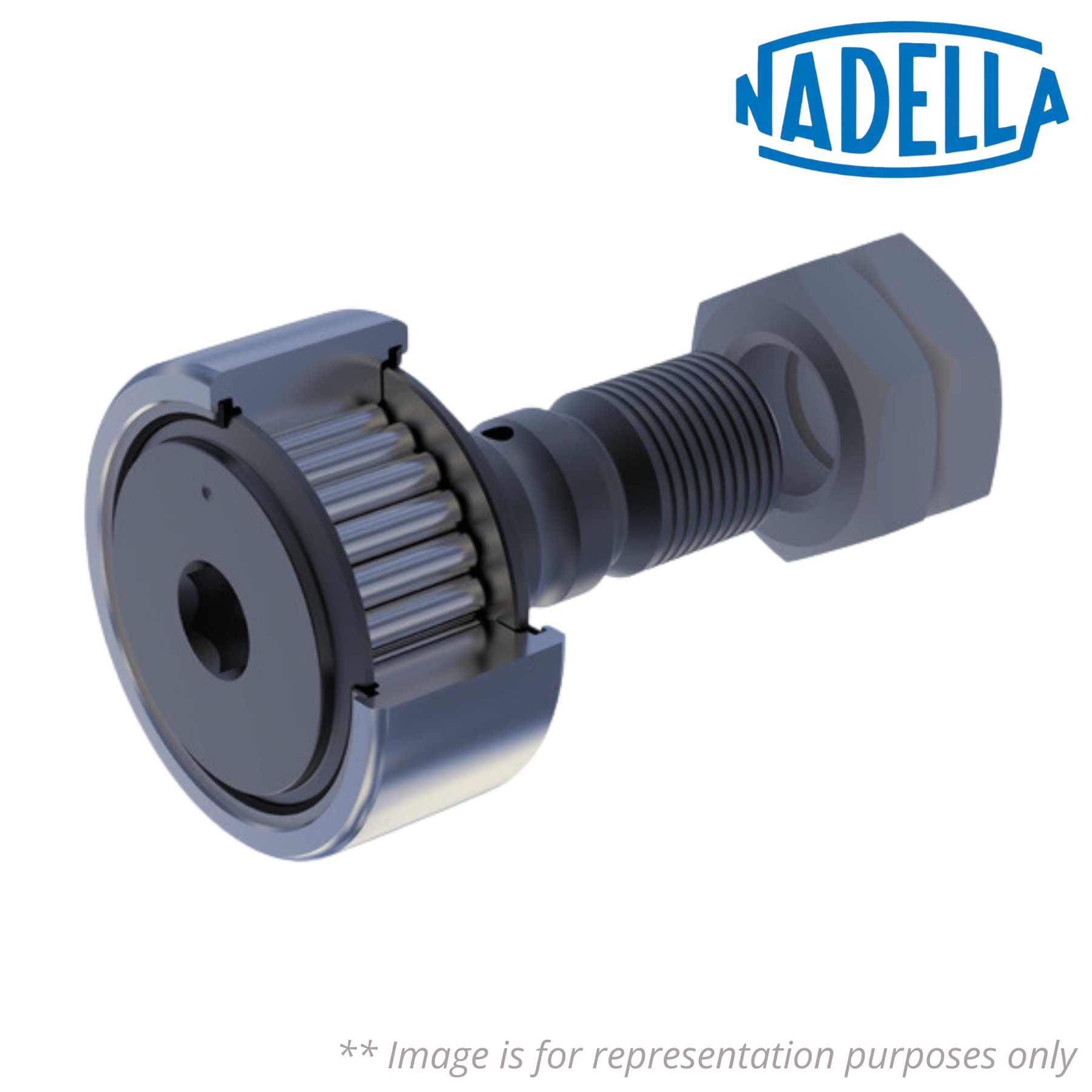

♦♦ Images are for representation purposes only
