GCL 32 NADELLA

Brand - NADELLA
Item Number - GCL 32 NADELLA
Also Known As - GCL32
Category - Concentric Cam Followers with Stud

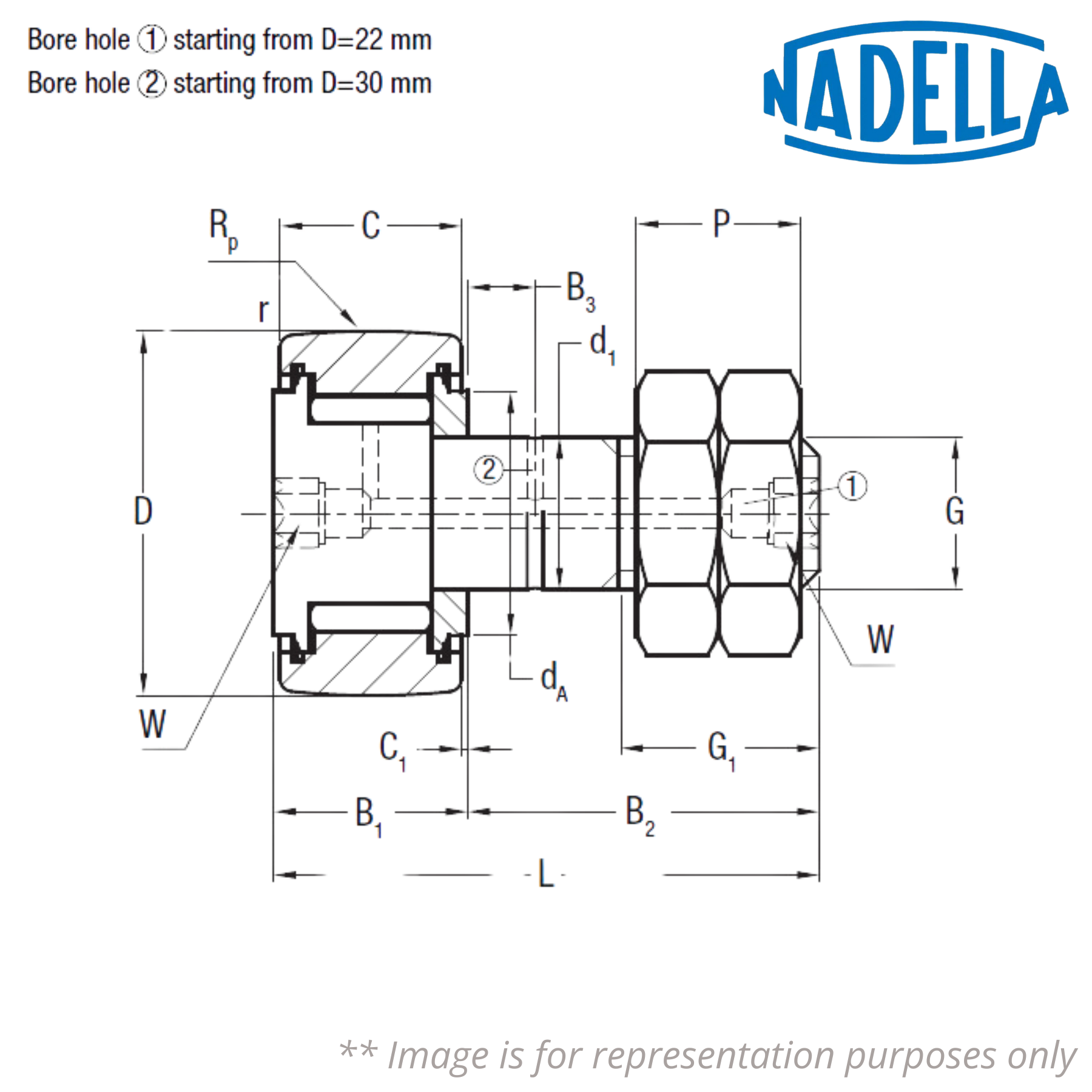

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 32 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 12 mm
Dimension (L) - 40 mm
Dimension (B1) - 15.2 mm
Dimension (B2) - 25 mm
Threading (G) - M12x1.5
Dimension (G1) - 13 mm
Dimension (C) - 14 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 24.8 mm
Dimension (B3) - 21 mm
Dimension (r) - 0.6 mm
Dimension (W) - 6 mm
Dimension (P) - 12 mm
Load Coefficient (Cw) - 13000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 7900 N
Static Load Coefficient for Cam Followers without Stud (For) * - 15000 N
Speed Limit with Grease - 2600 RPM
Weight - 0.126 kg
Clamping Torque - 26 Nm

Description of Prefix:
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - No Seal

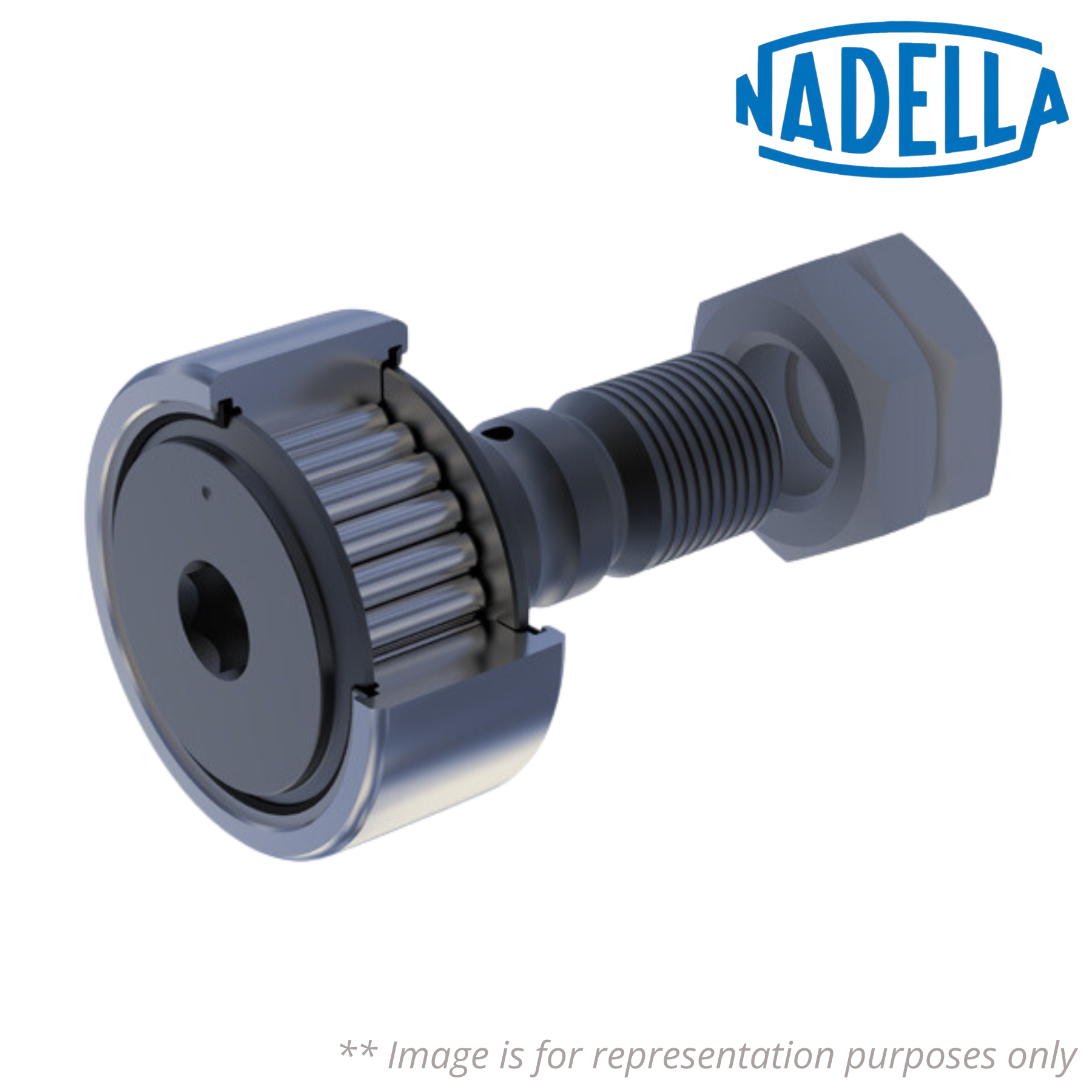

♦♦ Images are for representation purposes only
