GCL 22 EE SW NADELLA

Brand - NADELLA

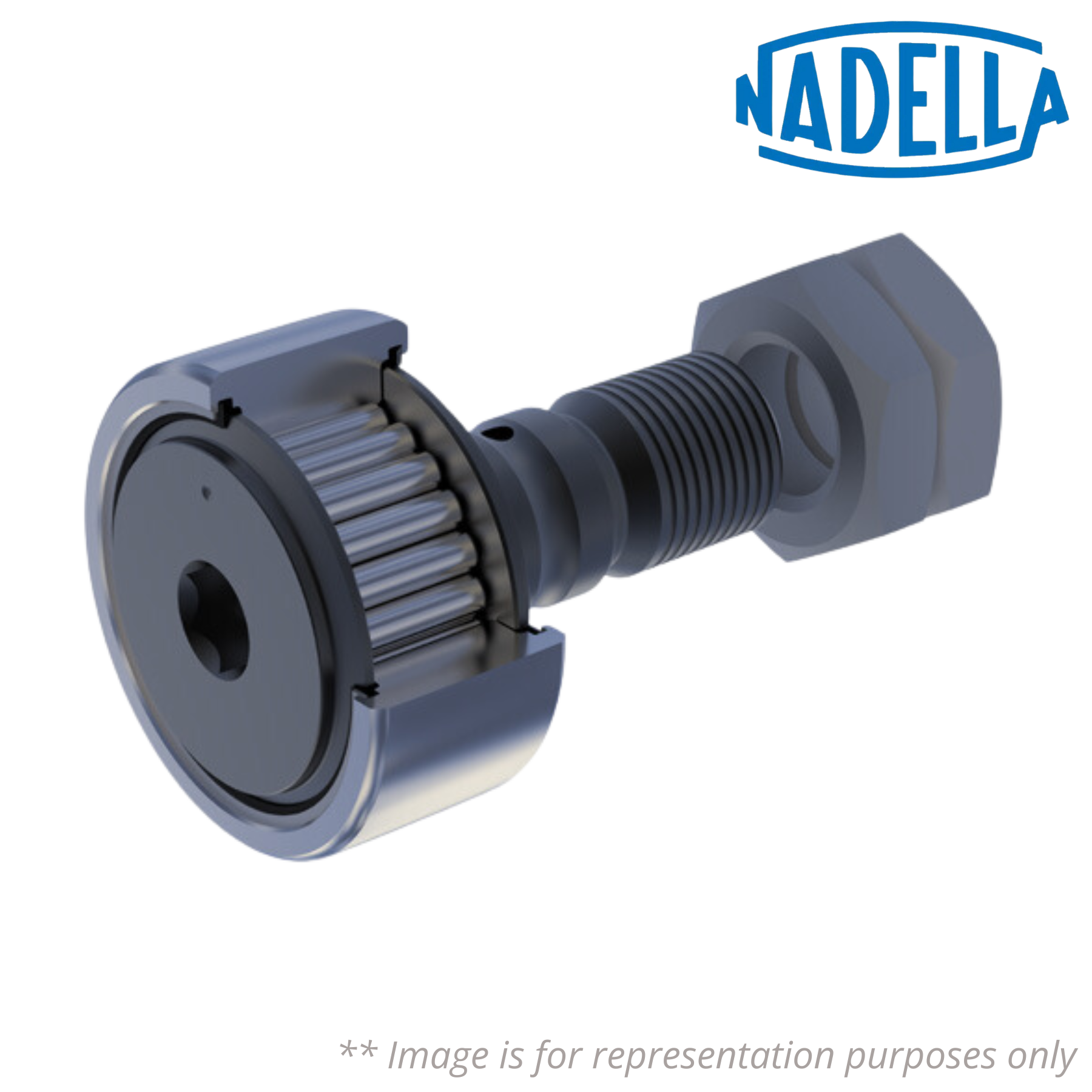

Item Number - GCL 22 EE SW NADELLA
Also Known As - GCL22EESW
Category - Concentric Cam Followers with Stud

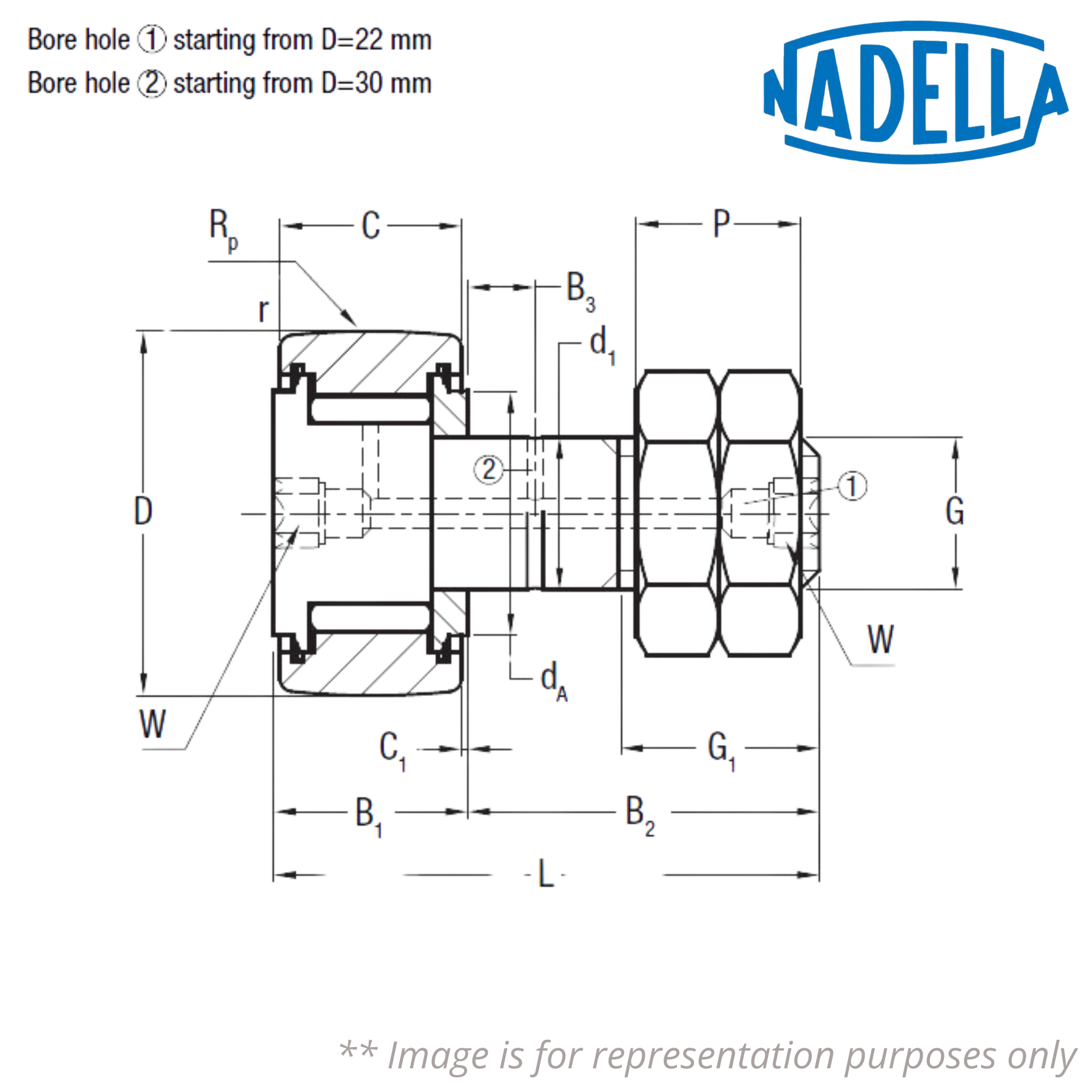

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 22 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 10 mm
Dimension (L) - 36 mm
Dimension (B1) - 13.2 mm
Dimension (B2) - 23 mm
Threading (G) - M10x1.25
Dimension (G1) - 12 mm
Dimension (C) - 12 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 18.2 mm
Dimension (B3) - 15.5 mm
Dimension (r) - 0.3 mm
Dimension (W) - 4 mm
Dimension (P) - 10 mm
Load Coefficient (Cw) - 6900 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 5300 N
Static Load Coefficient for Cam Followers without Stud (For) * - 9400 N
Speed Limit with Grease - 3400 RPM
Weight - 0.057 kg
Clamping Torque - 20 Nm

Description of Suffixes and Prefixes:
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring
EE - Plastic Seal

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - Plastic Seal

♦♦ Images are for representation purposes only
