GCL 16 EEM NADELLA

Brand - NADELLA
Item Number - GCL 16 EEM NADELLA
Also Known As - GCL16EEM
Category - Concentric Cam Followers with Stud

Principal Dimensions & Load Ratings (Metric):

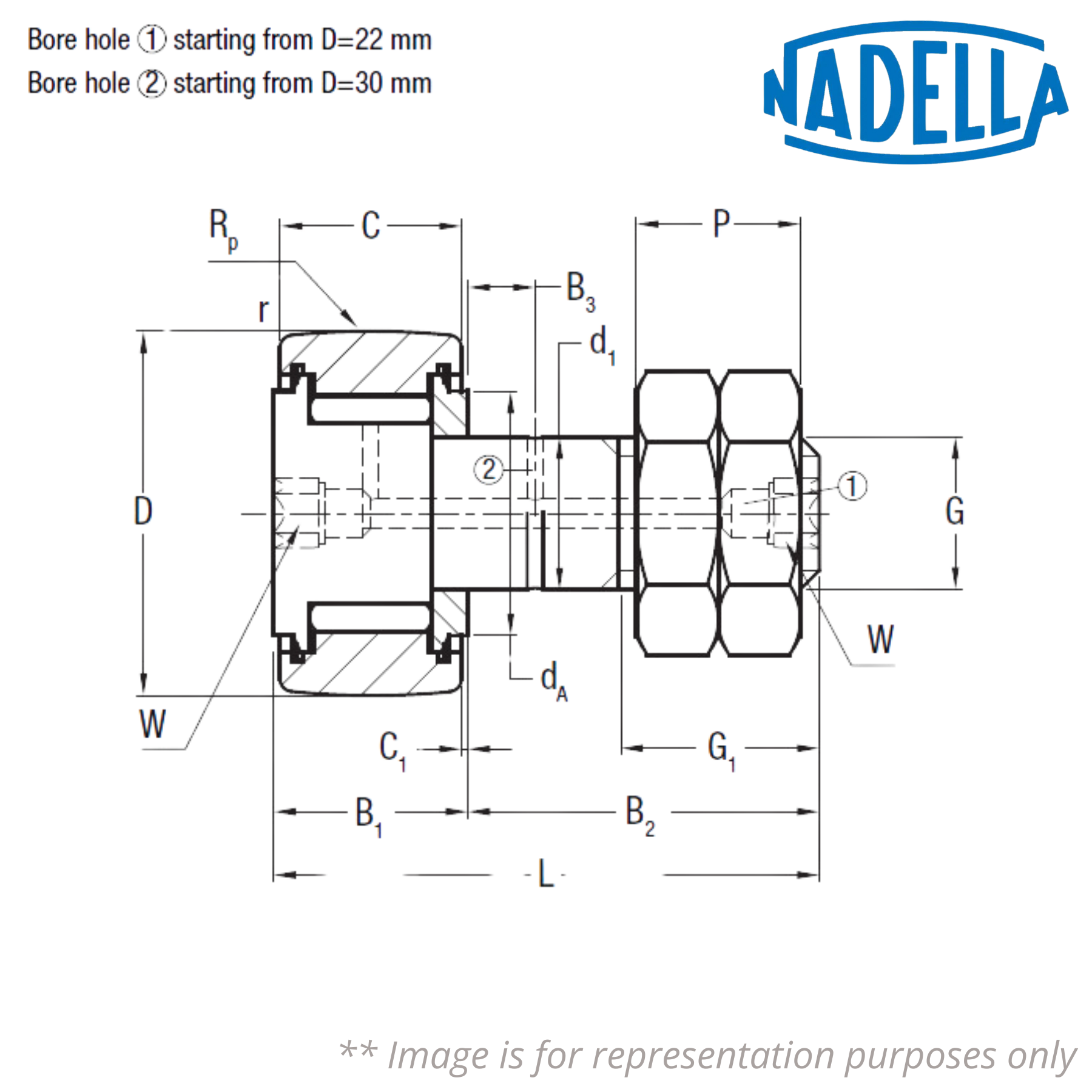

Outer Diameter (D) - 16 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 6 mm
Dimension (L) - 28 mm
Dimension (B1) - 12.2 mm
Dimension (B2) - 16 mm
Threading (G) - M6x1
Dimension (G1) - 8 mm
Dimension (C) - 11 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 13.3 mm
Dimension (B3) - 10.4 mm
Dimension (r) - 0.3 mm
Dimension (W) - 4 mm
Dimension (P) - 6.4 mm
Load Coefficient (Cw) - 4900 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) * - 1200 N
Static Load Coefficient for Cam Followers without Stud (For) * - 2300 N
Speed Limit with Grease - 5000 RPM
Weight - 0.024 kg
Clamping Torque - 3 Nm

Description of Suffixes and Prefixes:
GCL - Concentric Cam Follower with Stud Cylindrical Outer Ring
EEM - Metal Seal

Other salient points to be noted:
* Fr and For load for cam follower without stud, with no eccentric collar

• Seal - Metal Seal

♦♦ Images are for representation purposes only
