Description
Brand - NADELLA
Item Number - GC13 NADELLA
Category - Cam Followers with Stud
Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (D) - 13 mm
Hole Diameter (d1) * - 5 mm
Dimension (L) - 22.5 mm
Dimension (B1) - 9.5 mm
Dimension (B2) - 13 mm
Threading (G) - M5x0.8
Dimension (G1) - 7 mm
Dimension (C) - 9 mm
Dimension (C1) - 0.25 mm
Dimension (dA) - 10.3 mm
Dimension (r) - 0.2 mm
Convex Radius (R) ** - 130 mm
Dimension (P) - 5.4 mm
Load Coefficients (Cw) - 3200 N
Dynamic Load Coefficients (Fr) - 900 N
Static Load Coefficients (For) - 1700 N
Speed Limit with Grease - 6000 RPM
Weight - 0.011 kg
Clamping Torque - 1.8 Nm
Description of Prefix:
GC - Concentric Cam Follower with Stud with Convex Outer Ring
Other salient points to be noted:
* Hole diameter for assembly d1 H7
** Convex radius for GC version
• The concentric cam followers with stud in the GC Mini series are supplied with two clamping nuts

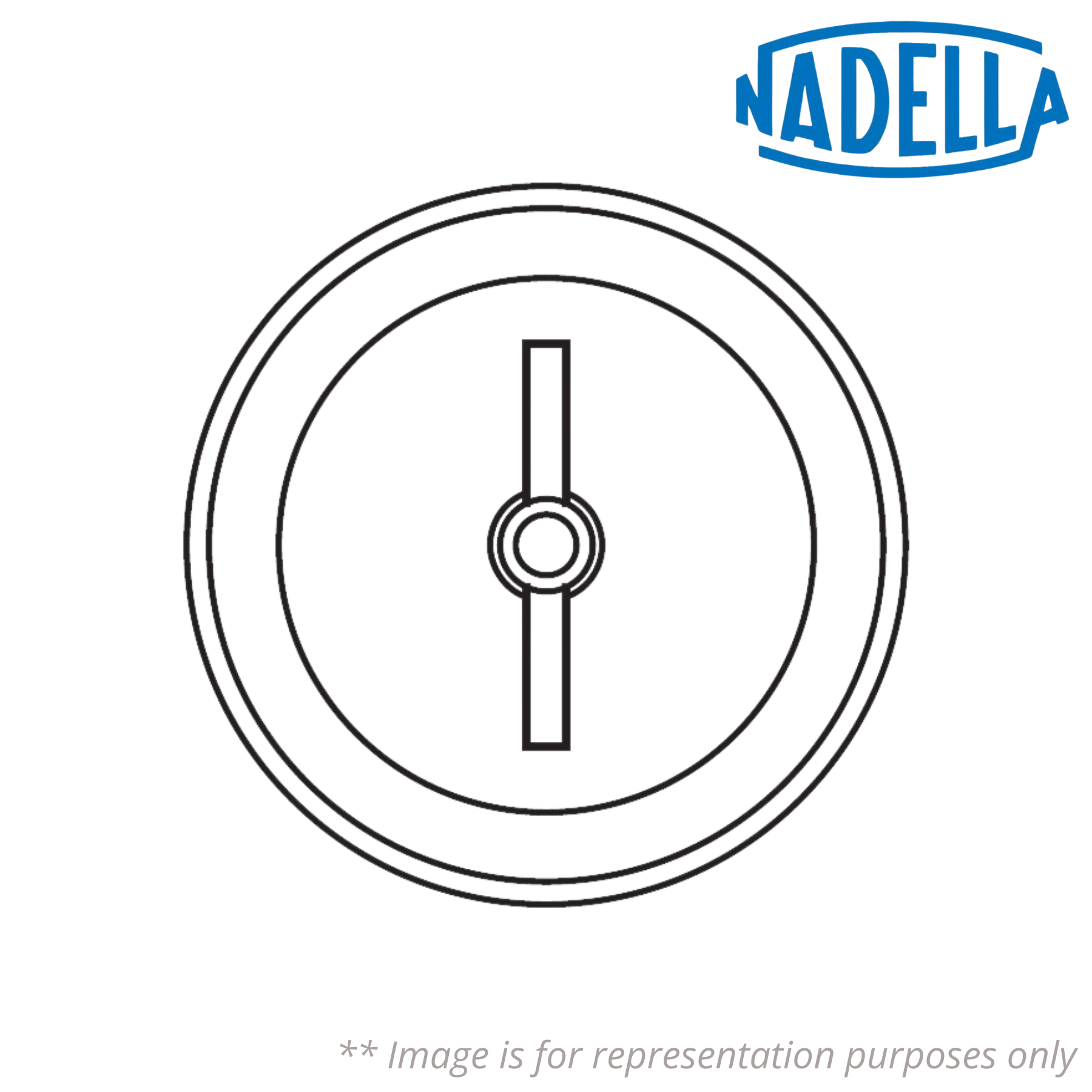

♦♦ Images are for representation purposes only
