GC110XP0 RBC

Brand - RBC
Item Number - GC110XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

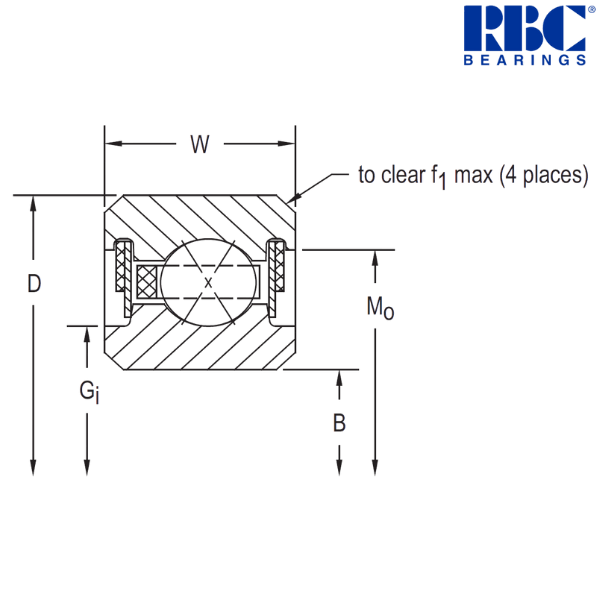

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 11.75 inch
Width (W) - 0.375 inch
Recess Diameter (Gi) - 11.188 inch
Groove Diameter (Mo) - 11.516 inch
Housing Fillet (f1) - 0.04 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 91 pcs.
Approximate Weight - 1.16 lbs
Radial Static Load - 5470 lbf
Radial Dynamic Load - 2496 lbf
Thrust Static Load - 13680 lbf
Thrust Dynamic Load - 4180 lbf
Moment Static Load - 31110 lbf
Moment Dynamic Load - 10651 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 279.4 mm
Outside Diameter (D) - 298.45 mm
Width (W) - 9.525 mm
Recess Diameter (Gi) - 284.18 mm
Groove Diameter (Mo) - 292.51 mm
Housing Fillet (f1) - 1.02 mm
Approximate Weight - 0.526 kg
Radial Static Load - 24330 N
Radial Dynamic Load - 11100 N
Thrust Static Load - 60850 N
Thrust Dynamic Load - 18590 N
Moment Static Load - 3510 Nm
Moment Dynamic Load - 1200 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
C - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
