Description
Brand - NADELLA
Item Number - GC10 NADELLA
Category - Cam Followers with Stud

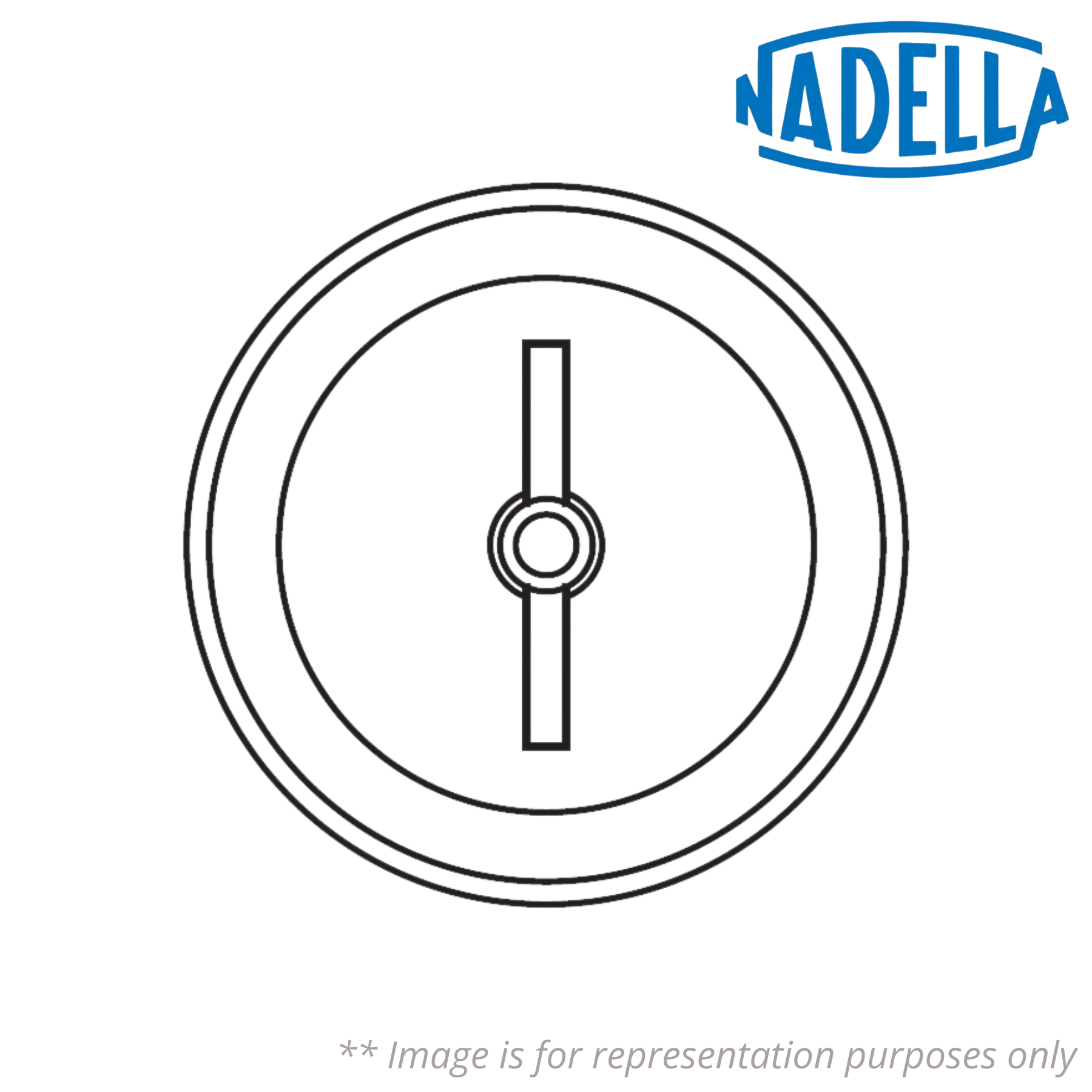

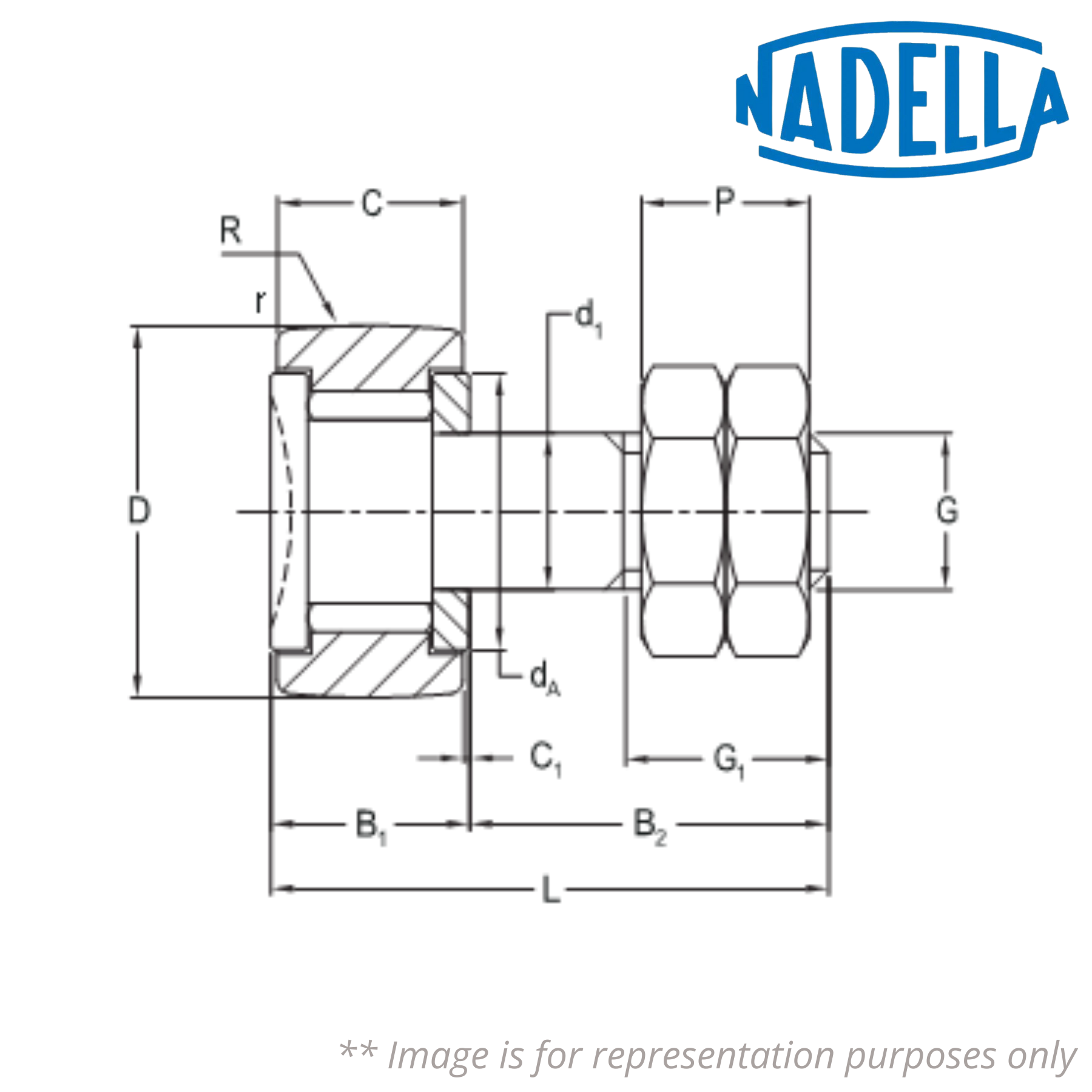

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (D) - 10 mm
Hole Diameter (d1) * - 4 mm
Dimension (L) - 19.5 mm
Dimension (B1) - 8.5 mm
Dimension (B2) - 11 mm
Threading (G) - M4x0.7
Dimension (G1) - 6 mm
Dimension (C) - 8 mm
Dimension (C1) - 0.25 mm
Dimension (dA) - 8.4 mm
Dimension (r) - 0.2 mm
Convex Radius (R) ** - 130 mm
Dimension (P) - 6 mm
Load Coefficients (Cw) - 2100 N
Dynamic Load Coefficients (Fr) - 520 N
Static Load Coefficients (For) - 960 N
Speed Limit with Grease - 7500 RPM
Weight - 0.006 kg
Clamping Torque - 0.9 Nm
Description of Prefix:
GC - Concentric Cam Follower with Stud with Convex Outer Ring
Other salient points to be noted:
* Hole diameter for assembly d1 H7
** Convex radius for GC version
• The concentric cam followers with stud in the GC Mini series are supplied with two clamping nuts
♦♦ Images are for representation purposes only
