GC055CP0 RBC

Brand - RBC
Item Number - GC055CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

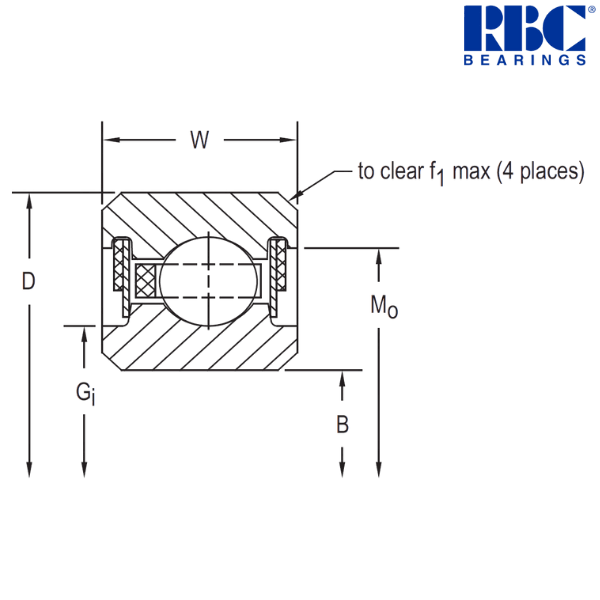

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5.5 inch
Outside Diameter (D) - 6.25 inch
Width (W) - 0.375 inch
Recess Diameter (Gi) - 5.688 inch
Groove Diameter (Mo) - 6.016 inch
Housing Fillet (f1) - 0.04 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 47 pcs.
Approximate Weight - 0.59 lbs
Radial Static Load - 2830 lbf
Radial Dynamic Load - 1440 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 139.7 mm
Outside Diameter (D) - 158.75 mm
Width (W) - 9.525 mm
Recess Diameter (Gi) - 144.48 mm
Groove Diameter (Mo) - 152.81 mm
Housing Fillet (f1) - 1.02 mm
Approximate Weight - 0.268 kg
Radial Static Load - 12590 N
Radial Dynamic Load - 6410 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
C - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

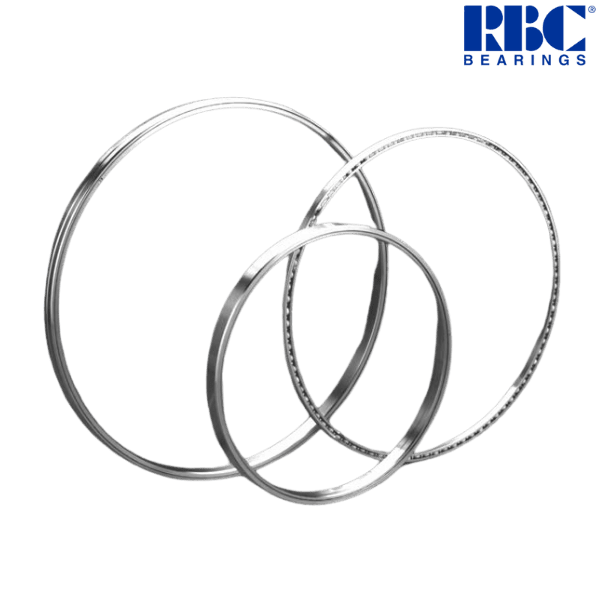

♦ ♦ Images are for representation purposes only
