GC 85 EEM SW NADELLA

Brand - NADELLA
Item Number - GC 85 EEM SW NADELLA
Also Known As - GC85EEMSW
Category - Cam Followers with Stud

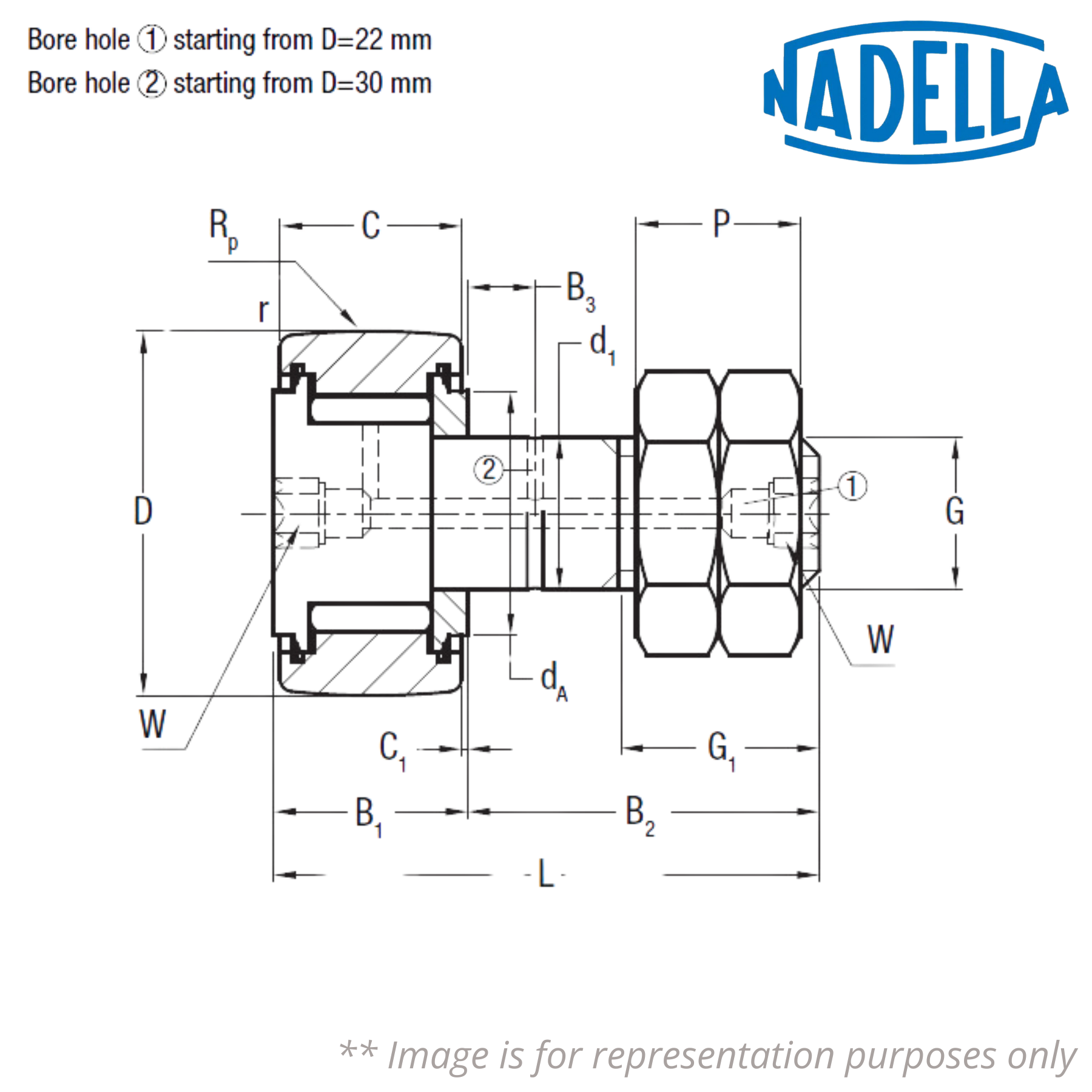

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 85 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 30 mm
Dimension (L) - 100 mm
Dimension (B1) - 37 mm
Dimension (B2) - 63 mm
Threading (G) - M30x1.5
Dimension (G1) - 32 mm
Dimension (C) - 35 mm
Dimension (C1) - 1 mm
Dimension (dA) - 68 mm
Dimension (B3) - 61 mm
Dimension (r) - 1 mm
Convex Radius (Rp) * - 1700 mm
Dimension (W) - 14 mm
Dimension (P) ** - 30 mm
Load Coefficient (Cw) - 61000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 50000 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 93000 N
Speed Limit with Grease - 900 RPM
Weight - 2.235 kg
Clamping Torque - 450 Nm

Description of Suffixes and Prefixes:
GC - Concentric Cam Follower with Stud with Optimised Outer Ring
EEM - Metal Seal

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** The GC concentric cam followers with stud are supplied with two clamping nuts
*** Fr and For load for cam follower without stud, with no eccentric collar.

• Seal - Metal Seal

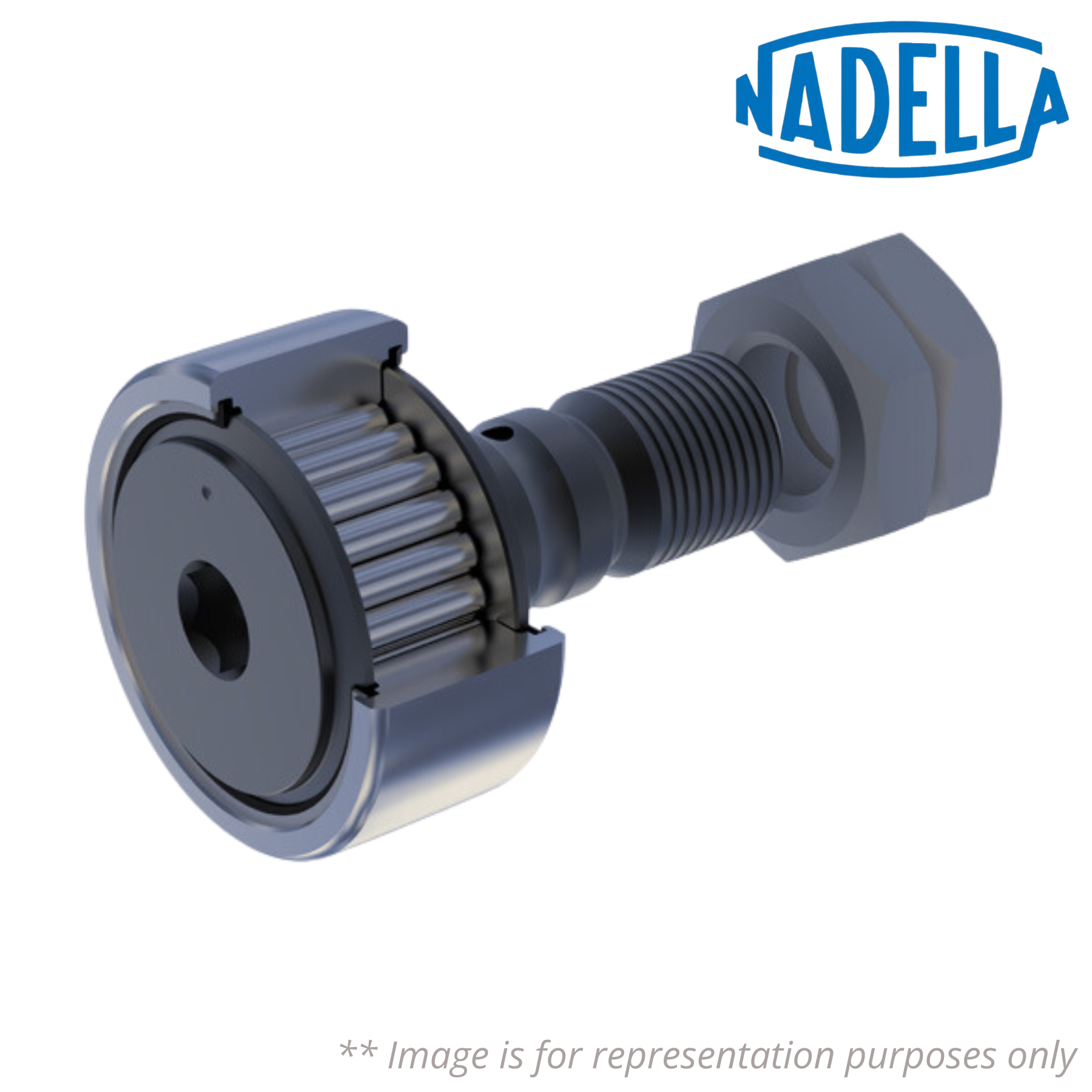

♦♦ Images are for representation purposes only
