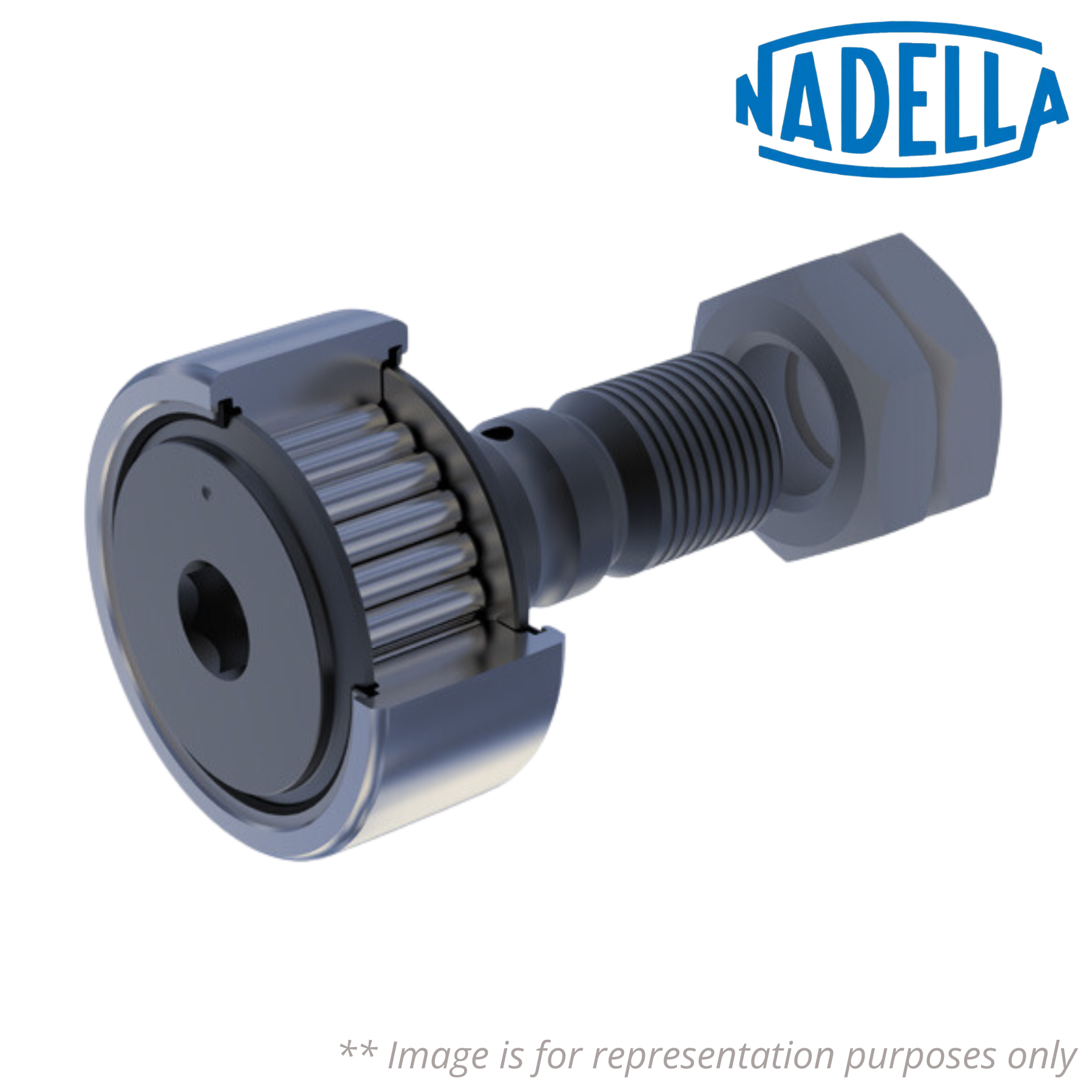

GC 72 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GC 72 NADELLA
Also Known As - GC72
Category - Cam Followers with Stud
Outer Diameter (D) mm - 72
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 24
L (mm) - 80
B1 (mm) - 30.6
B2 (mm) - 49.5
Threading (G) mm - M24x1.5
G1 (mm) - 25
C (mm) - 29
C1 (mm) - 0.8
dA (mm) - 45
B3 (mm) - 11
r (mm) - 1
Convex Radius (Rp) mm - 1500
W (mm) - 12
P (mm) - 24
Load Coefficient (Cw) N - 46000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 31000
Static Load Coefficient for Cam Followers without Stud (For) N - 58000
Speed Limit with Grease (min-1) - 1200
Weight (kg) - 1278
Clamping Torque (Nm) - 220
GC - Concentric Cam Follower with Stud with Optimised Outer Ring
Seal - Without Seal
