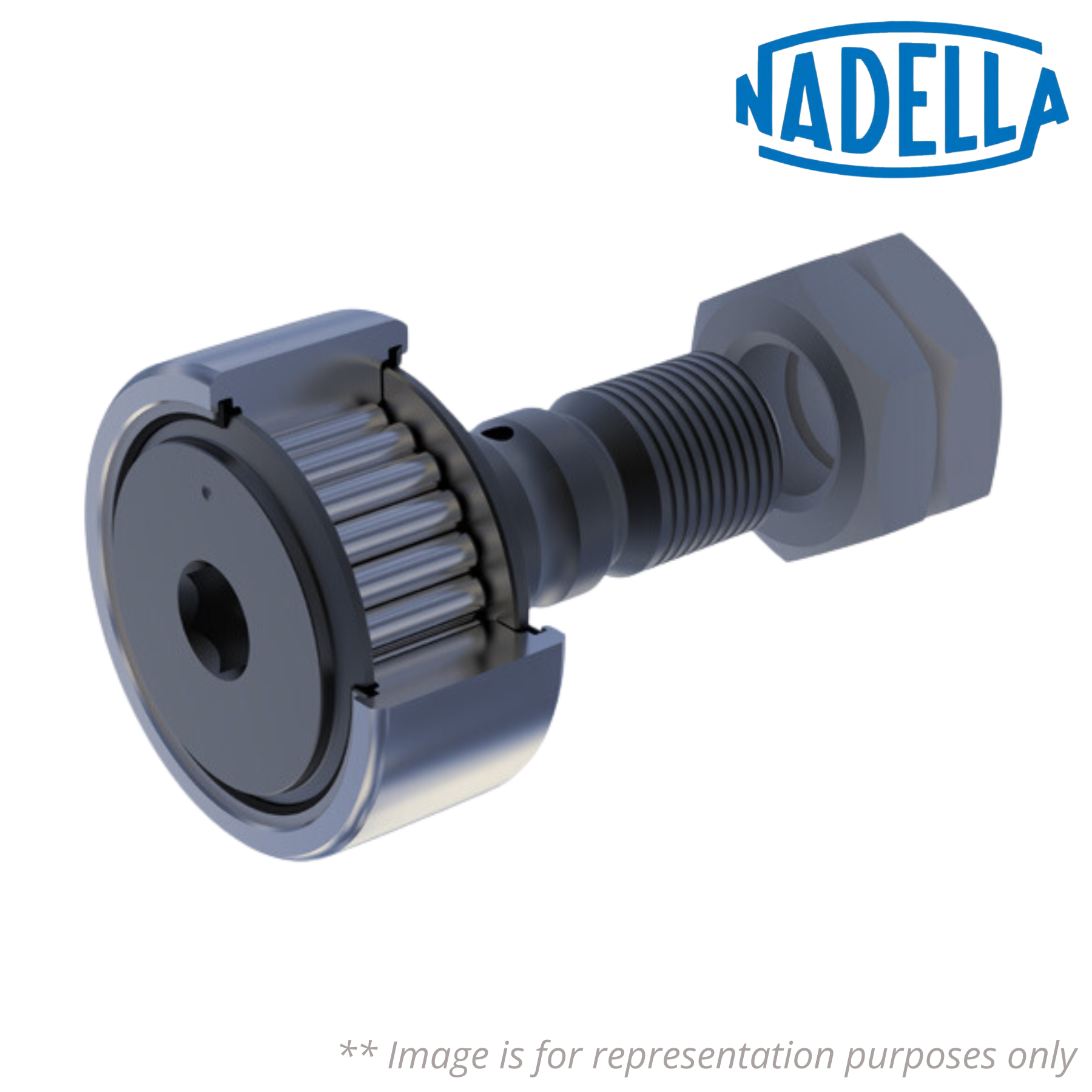

GC 62 EEM SW NADELLA

Brand - NADELLA
Item Number - GC 62 EEM SW NADELLA
Also Known As - GC62EEMSW
Category - Cam Followers with Stud

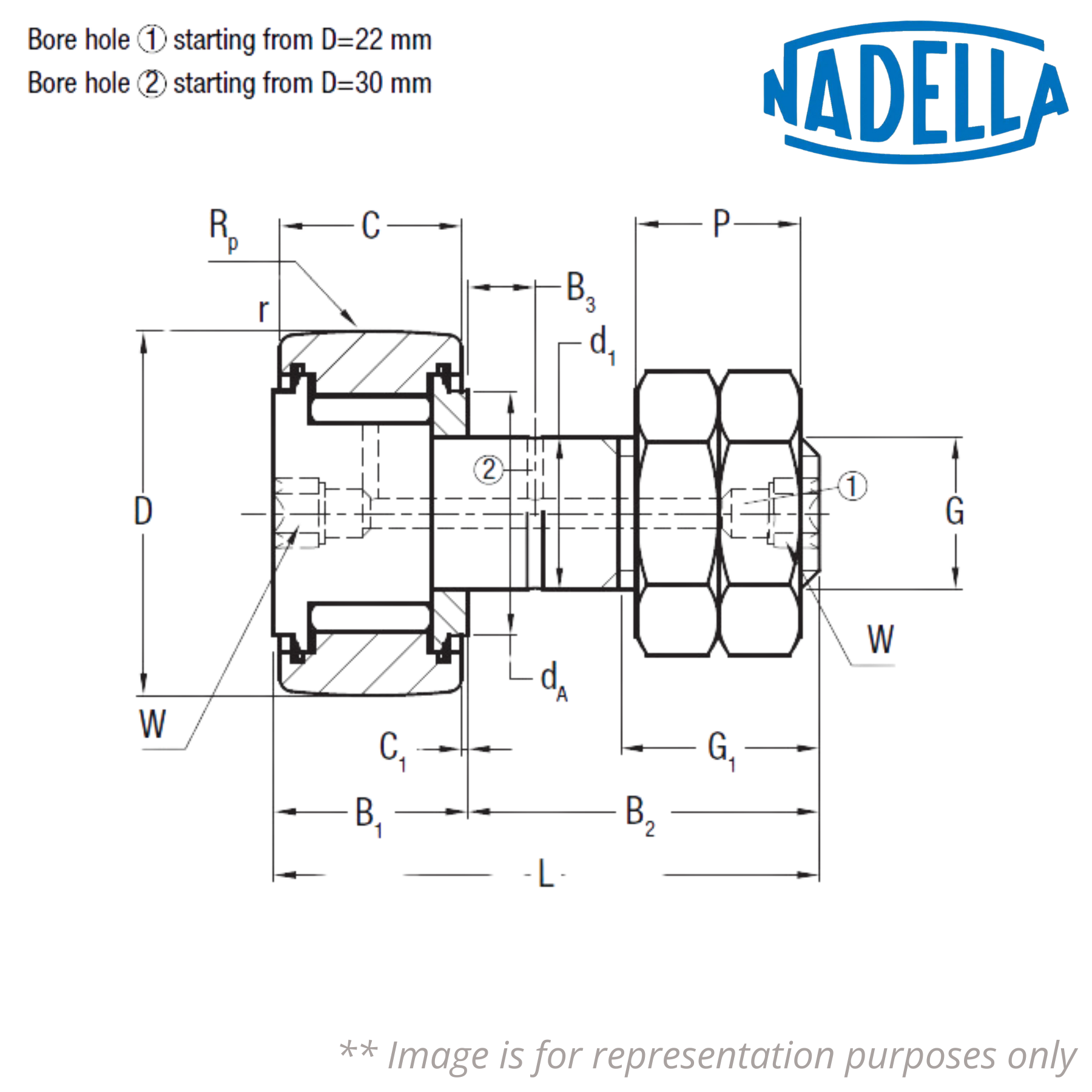

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 62 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 24 mm
Dimension (L) - 80 mm
Dimension (B1) - 30.6 mm
Dimension (B2) - 49.5 mm
Threading (G) - M24x1.5
Dimension (G1) - 25 mm
Dimension (C) - 29 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 52 mm
Dimension (B3) - 45 mm
Dimension (r) - 1 mm
Convex Radius (Rp) * - 1500 mm
Dimension (W) - 12 mm
Dimension (P) ** - 24 mm
Load Coefficient (Cw) - 42000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 31000 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 58000 N
Speed Limit with Grease - 1200 RPM
Weight - 1.035 kg
Clamping Torque - 220 Nm

Description of Suffixes and Prefixes:
GC - Concentric Cam Follower with Stud with Optimised Outer Ring
EEM - Metal Seal

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** The GC concentric cam followers with stud are supplied with two clamping nuts
*** Fr and For load for cam follower without stud, with no eccentric collar.

• Seal - Metal Seal

♦♦ Images are for representation purposes only
