GC 52 NADELLA

Brand - NADELLA
Item Number - GC 52 NADELLA
Also Known As - GC52
Category - Cam Followers with Stud

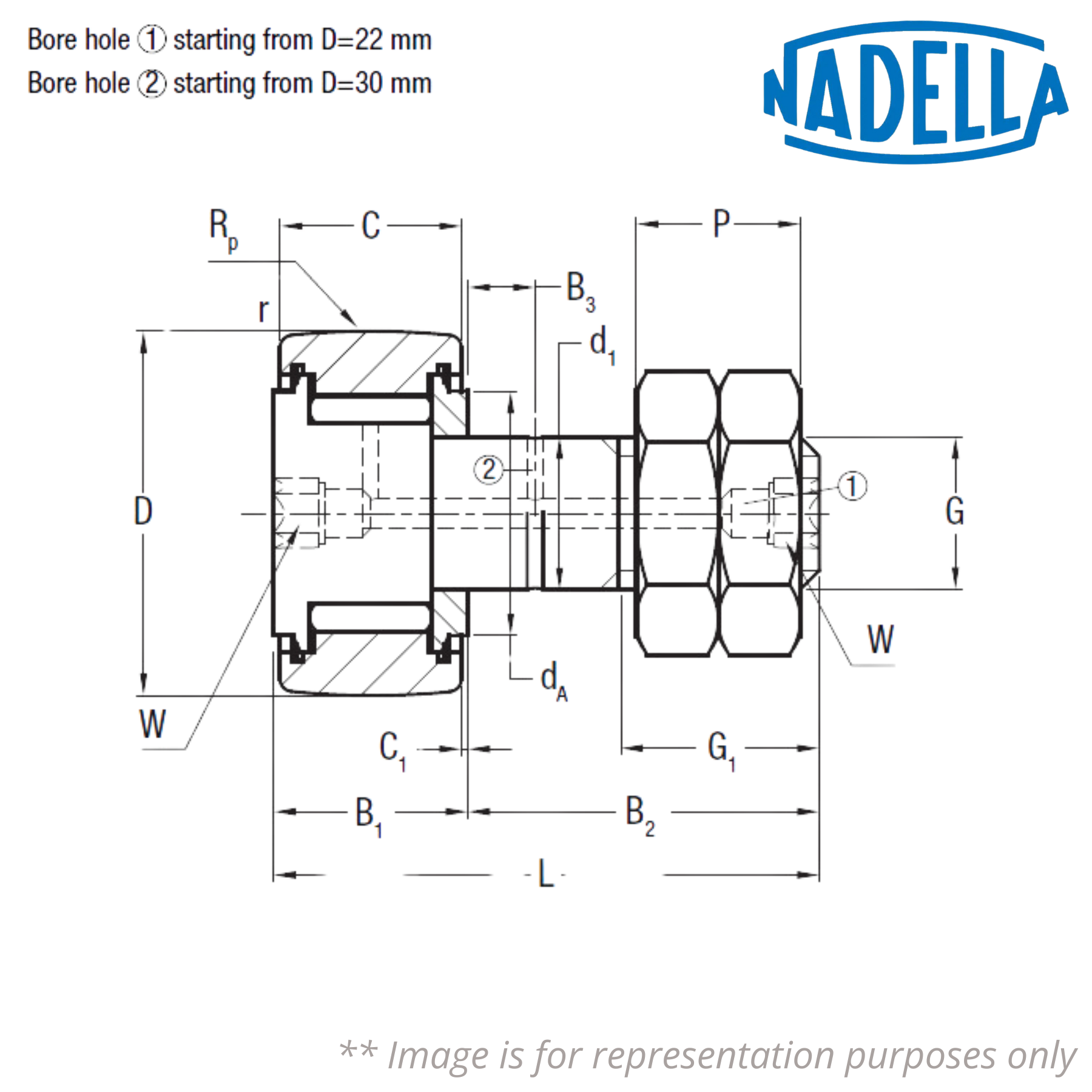

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 52 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 20 mm
Dimension (L) - 66 mm
Dimension (B1) - 25.6 mm
Dimension (B2) - 40.5 mm
Threading (G) - M20x1.5
Dimension (G1) - 21 mm
Dimension (C) - 24 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 35 mm
Dimension (B3) - 9 mm
Dimension (r) - 1 mm
Convex Radius (Rp) * - 1200 mm
Dimension (W) - 14 mm
Dimension (P) ** - 20 mm
Load Coefficient (Cw) - 33000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 22000 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 40000 N
Speed Limit with Grease - 1500 RPM
Weight - 0.568 kg
Clamping Torque - 120 Nm

Description of Prefix:
GC - Concentric Cam Follower with Stud with Optimised Outer Ring

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** The GC concentric cam followers with stud are supplied with two clamping nuts
*** Fr and For load for cam follower without stud, with no eccentric collar.

• Seal - Without Seal

♦♦ Images are for representation purposes only
