GC 35 EE SW NADELLA

Brand - NADELLA
Item Number - GC 35 EE SW NADELLA
Also Known As - GC35EESW
Category - Cam Followers with Stud

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 35 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 16 mm
Dimension (L) - 52 mm
Dimension (B1) - 19.6 mm
Dimension (B2) - 32.5 mm
Threading (G) - M16x1.5
Dimension (G1) - 17 mm
Dimension (C) - 18 mm
Dimension (C1) - 0.8 mm
Dimension (dA) - 28.8 mm
Dimension (B3) - 26 mm
Dimension (r) - 0.6 mm
Convex Radius (Rp) * - 800 mm
Dimension (W) - 10 mm
Dimension (P) ** - 16 mm
Load Coefficient (Cw) - 18000 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 14000 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 23000 N
Speed Limit with Grease - 2100 RPM
Weight - 0.22 kg
Clamping Torque - 64 Nm

Description of Suffixes and Prefixes:
GC - Concentric Cam Follower with Stud with Optimised Outer Ring
EE - Plastic seal

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** The GC concentric cam followers with stud are supplied with two clamping nuts
*** Fr and For load for cam follower without stud, with no eccentric collar.

• Seal - Plastic Seal

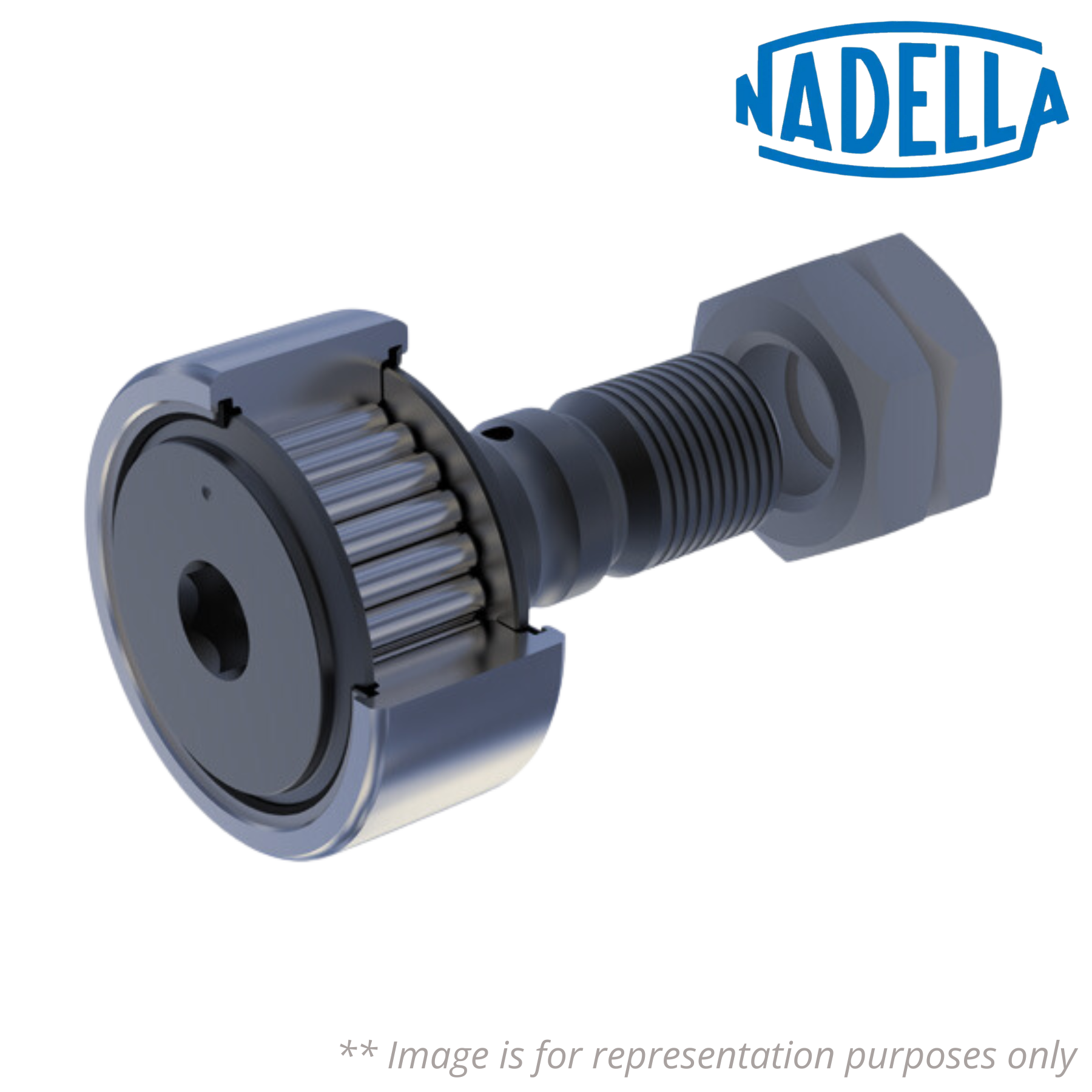

♦♦ Images are for representation purposes only
