GC 35 EE NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GC 35 EE NADELLA
Also Known As - GC35EE
Category - Cam Followers with Stud

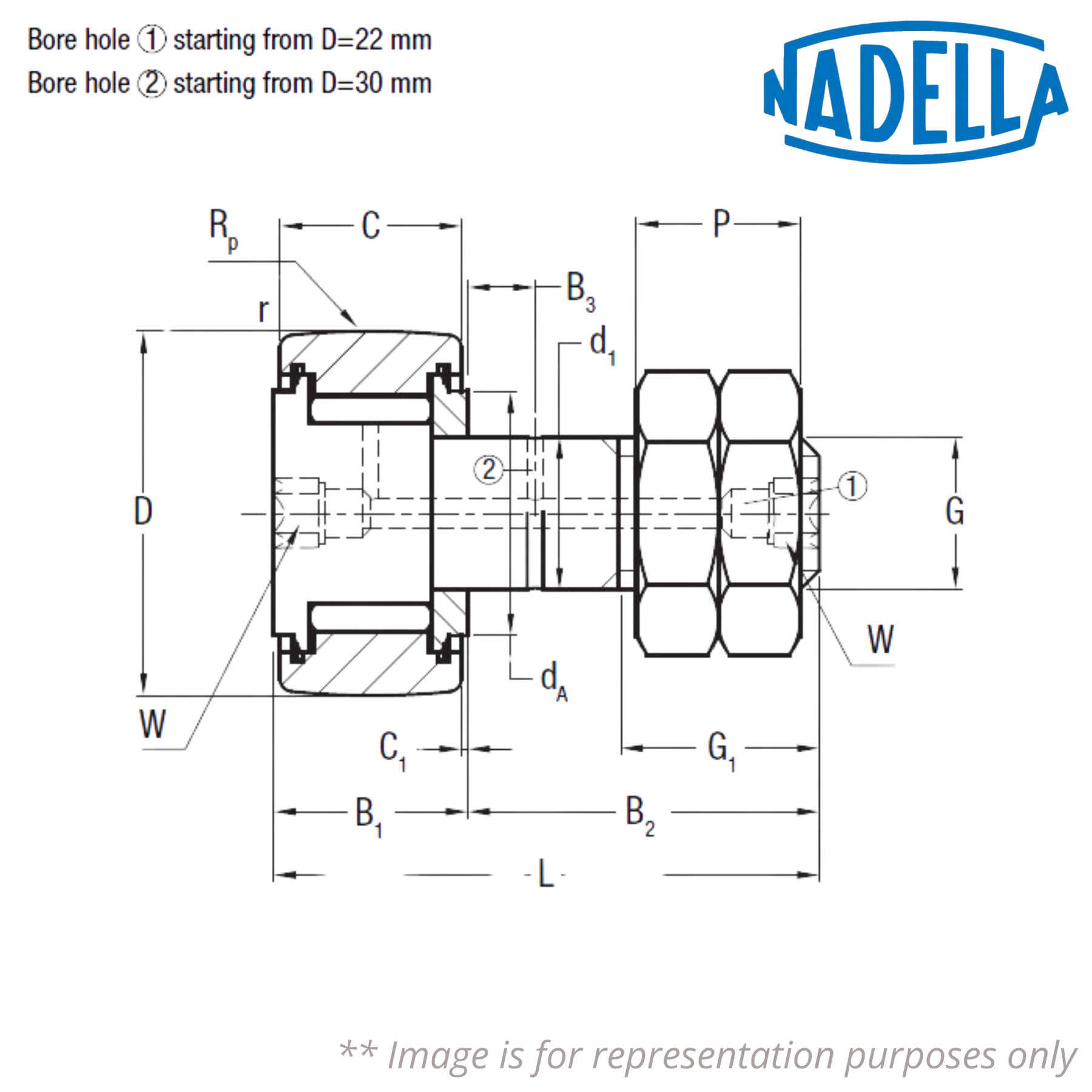

Outer Diameter (D) mm - 35
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 16
L (mm) - 52
B1 (mm) - 19.6
B2 (mm) - 32.5
Threading (G) mm - M16x1.5
G1 (mm) - 17
C (mm) - 18
C1 (mm) - 0.8
dA (mm) - 28.8
B3 (mm) - 26
r (mm) - 0.6
Convex Radius (Rp) mm - 800
W (mm) - 10
P (mm) - 16
Load Coefficient (Cw) N - 18000
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 14000
Static Load Coefficient for Cam Followers without Stud (For) N - 23000
Speed Limit with Grease (min-1) - 2100
Weight (kg) - 0.22
Clamping Torque (Nm) - 64

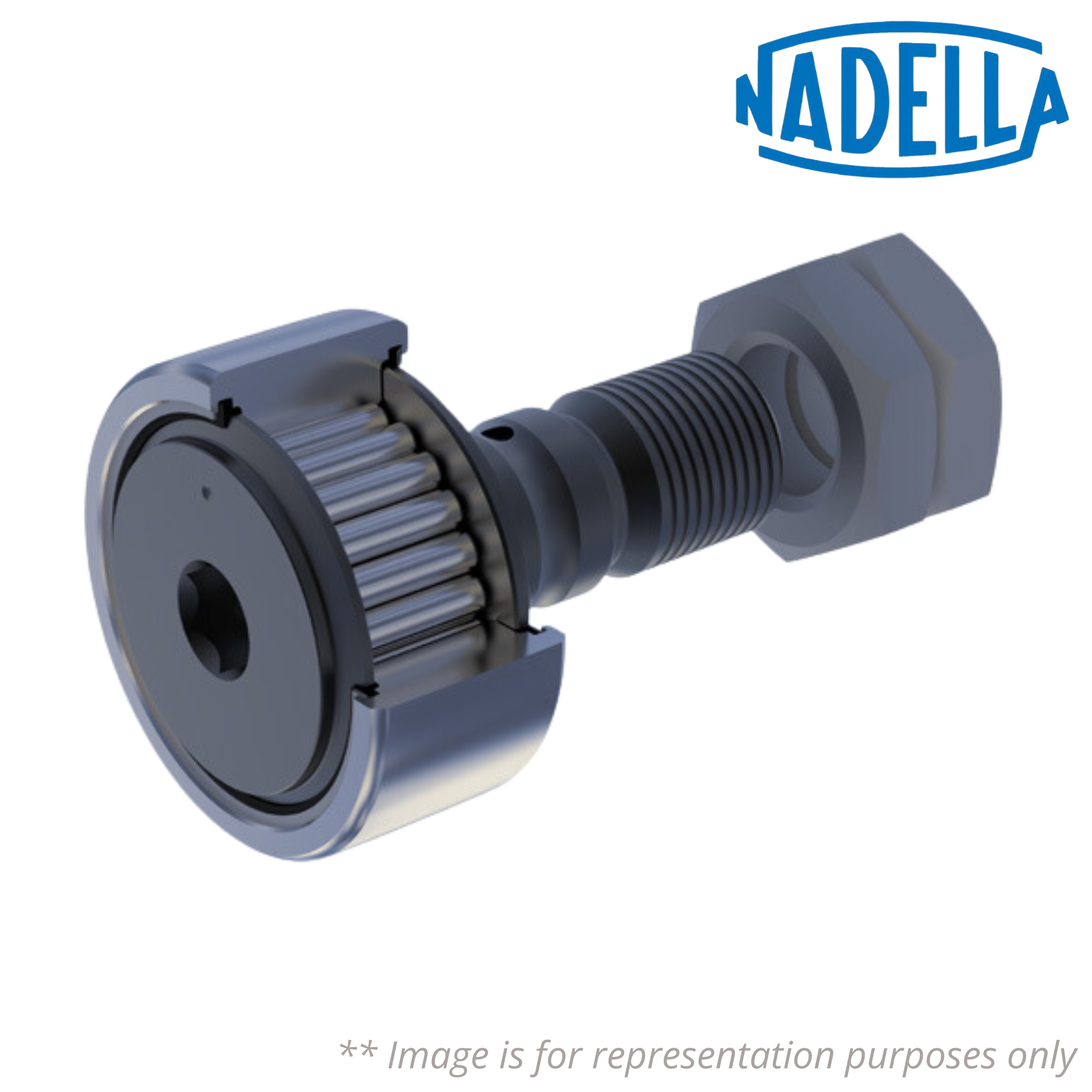

GC - Concentric Cam Follower with Stud with Optimised Outer Ring
Seal - Plastic Seal
