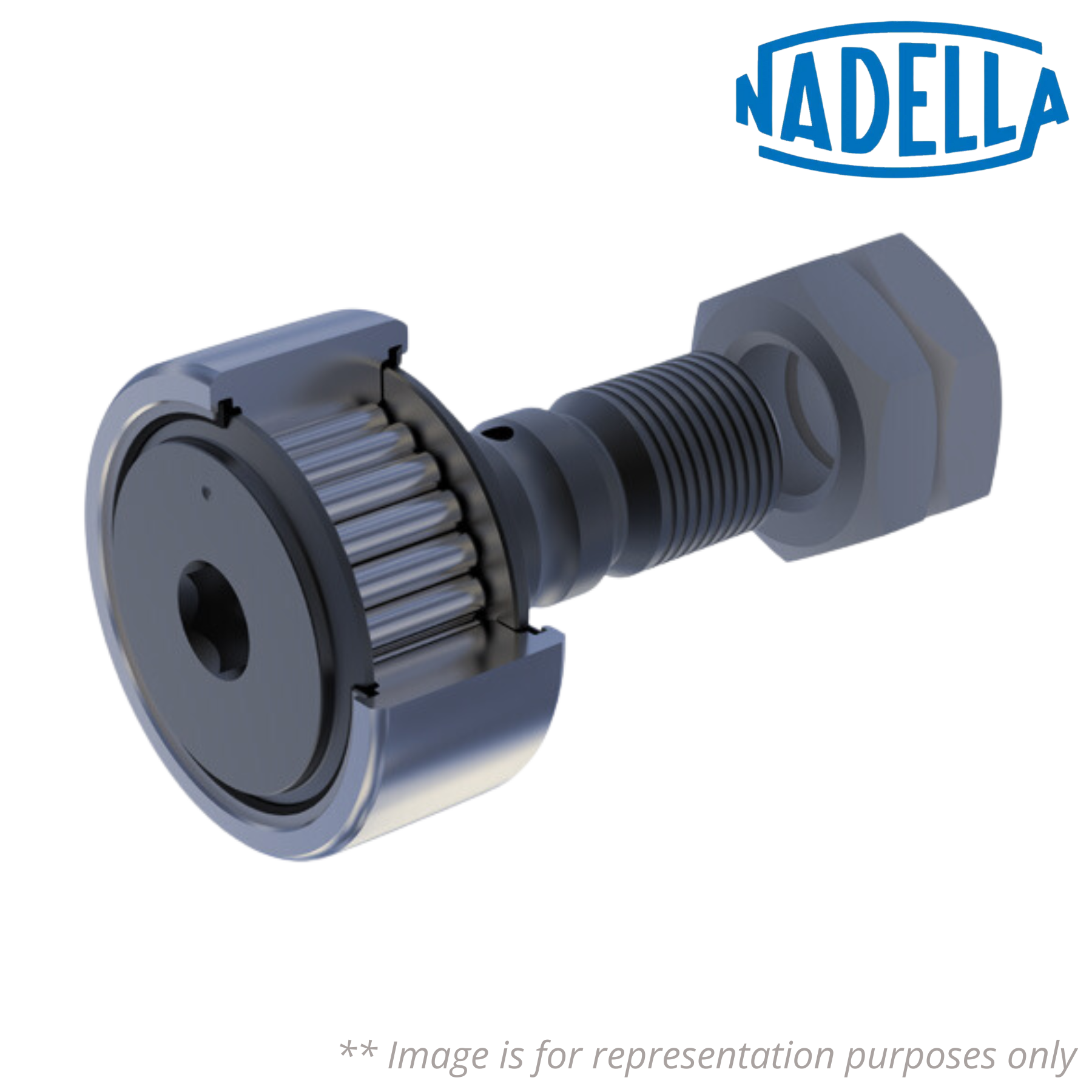

GC 24 NADELLA

Brand - NADELLA
Item Number - GC 24 NADELLA
Also Known As - GC24
Category - Cam Followers with Stud

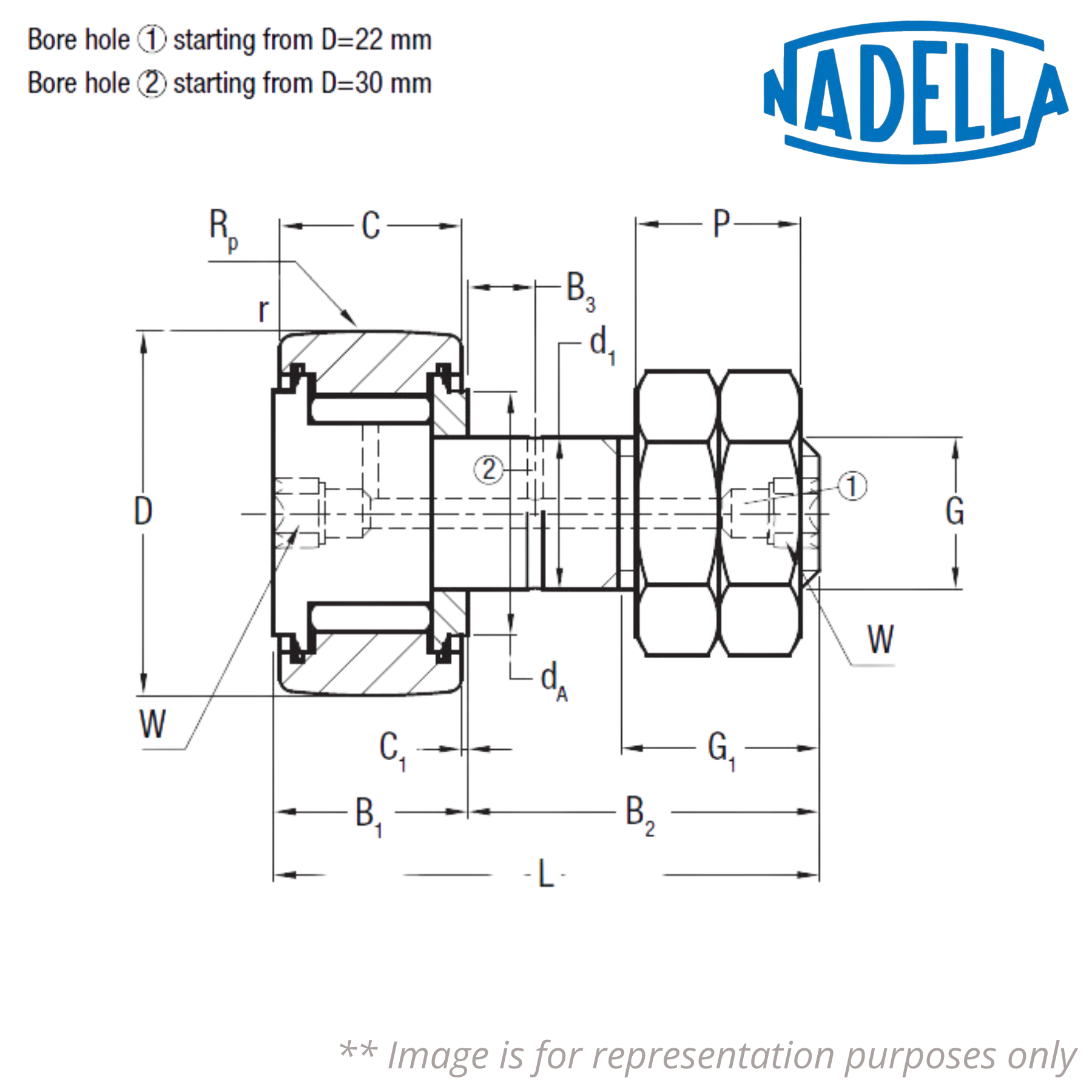

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 24 mm
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) - 10 mm
Dimension (L) - 36 mm
Dimension (B1) - 13.2 mm
Dimension (B2) - 23 mm
Threading (G) - M10x1.25
Dimension (G1) - 12 mm
Dimension (C) - 12 mm
Dimension (C1) - 0.6 mm
Dimension (dA) - 15.5 mm
Dimension (r) - 0.3 mm
Convex Radius (Rp) * - 600 mm
Dimension (W) - 4 mm
Dimension (P) ** - 10 mm
Load Coefficient (Cw) - 7600 N
Dynamic Load Coefficient for Cam Followers without Stud (Fr) *** - 5300 N
Static Load Coefficient for Cam Followers without Stud (For) *** - 9800 N
Speed Limit with Grease - 3400 RPM
Weight - 0.072 kg
Clamping Torque - 20 Nm

Description of Prefix:
GC - Concentric Cam Follower with Stud with Optimised Outer Ring

Other salient points to be noted:
* Convex radius in the central part to contact pressure calculation
** The GC concentric cam followers with stud are supplied with two clamping nuts
*** Fr and For load for cam follower without stud, with no eccentric collar.

• Seal - Without Seal
