GC 16 NADELLA


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - NADELLA
Item Number - GC 16 NADELLA
Also Known As - GC16
Category - Cam Followers with Stud
Outer Diameter (D) mm - 16
Hole Diameter for Assembly of Concentric Cam Followers Without Stud (d1) mm - 6
L (mm) - 28
B1 (mm) - 12.2
B2 (mm) - 16
Threading (G) mm - M6x1
G1 (mm) - 8
C (mm) - 11
C1 (mm) - 0.6
dA (mm) - 10.4
r (mm) - 0.3
Convex Radius (Rp) mm - 500
W (mm) - 4
P (mm) - 6.4
Load Coefficient (Cw) N - 4900
Dynamic Load Coefficient for Cam Followers without Stud (Fr) N - 1200
Static Load Coefficient for Cam Followers without Stud (For) N - 2300
Speed Limit with Grease (min-1) - 5000
Weight (kg) - 0.024
Clamping Torque (Nm) - 3

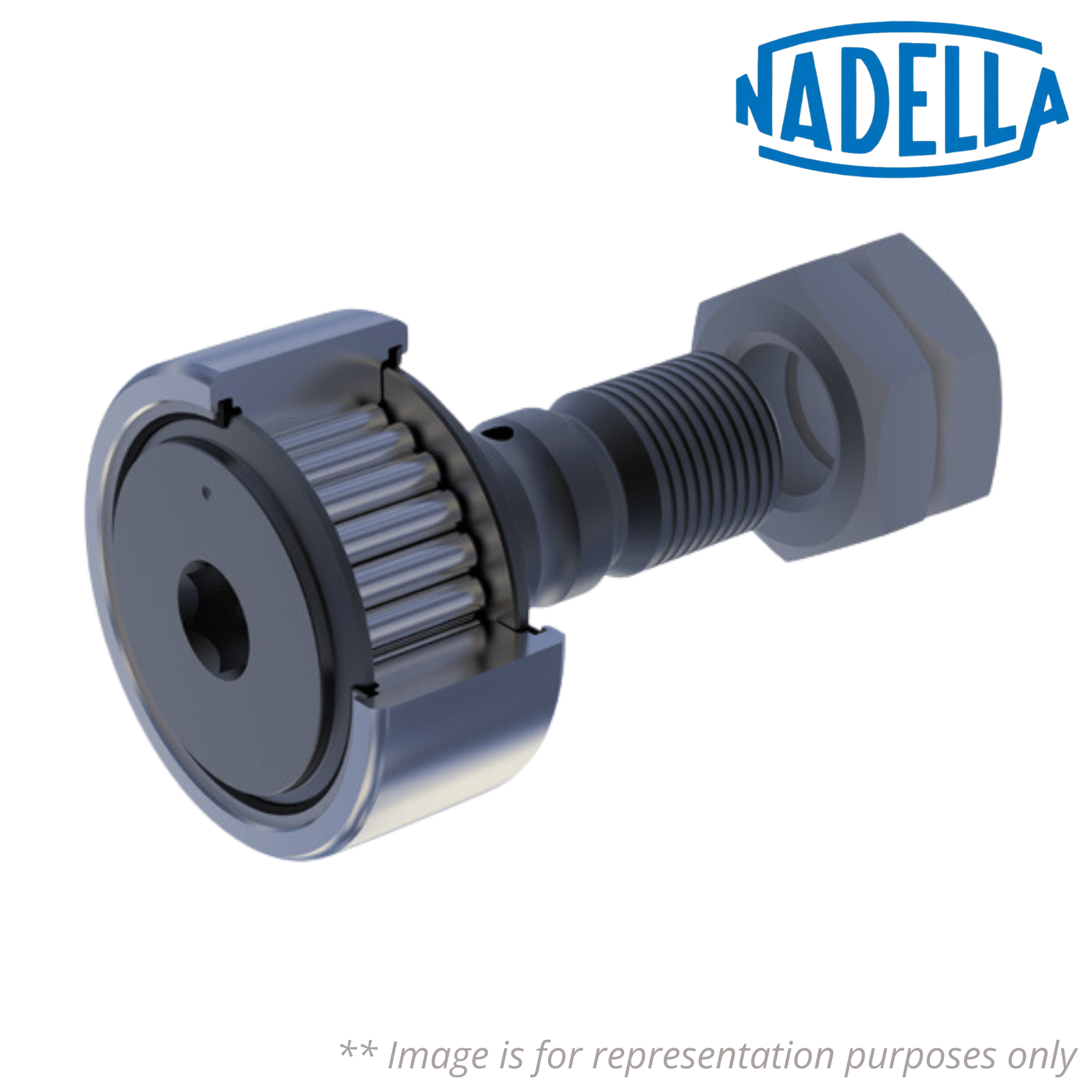

GC - Concentric Cam Follower with Stud with Optimised Outer Ring
Seal - Without Seal
