GB110XP0 RBC

Brand - RBC
Item Number - GB110XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

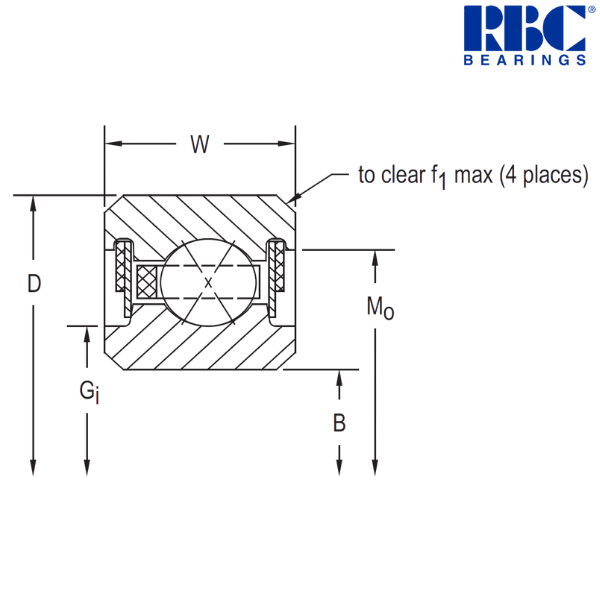

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 11.625 inch
Width (W) - 0.3125 inch
Recess Diameter (Gi) - 11.156 inch
Groove Diameter (Mo) - 11.43 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 113 pcs.
Approximate Weight - 0.75 lbs
Radial Static Load - 4590 lbf
Radial Dynamic Load - 1945 lbf
Thrust Static Load - 11480 lbf
Thrust Dynamic Load - 3280 lbf
Moment Static Load - 25970 lbf
Moment Dynamic Load - 8254 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 279.4 mm
Outside Diameter (D) - 295.275 mm
Width (W) - 7.938 mm
Recess Diameter (Gi) - 283.36 mm
Groove Diameter (Mo) - 290.32 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.34 kg
Radial Static Load - 20420 N
Radial Dynamic Load - 8650 N
Thrust Static Load - 51070 N
Thrust Dynamic Load - 14590 N
Moment Static Load - 2930 Nm
Moment Dynamic Load - 930 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

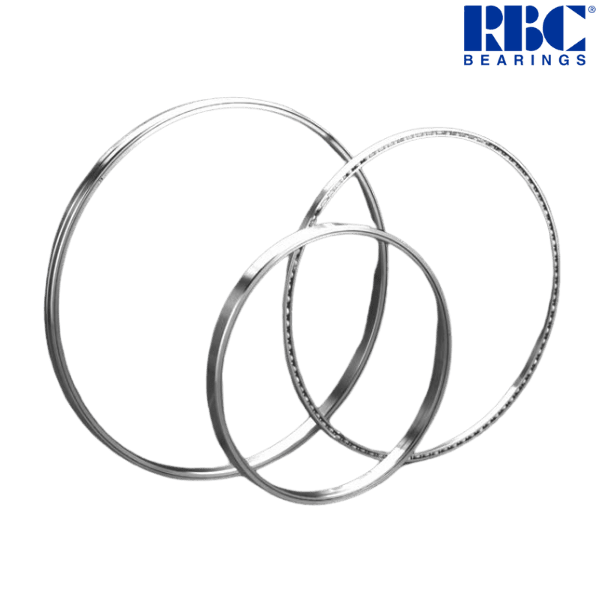

♦ ♦ Images are for representation purposes only
