Description
Brand - ZEN
Item Number - GAR80-UK-2RS ZEN
Category - Rod Ends

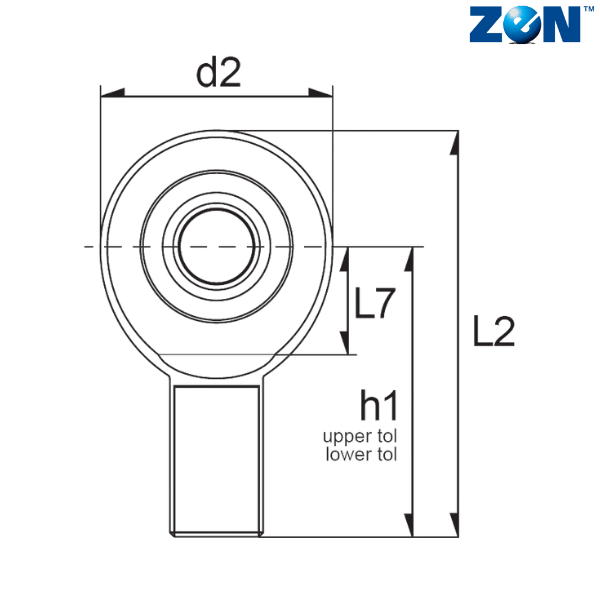

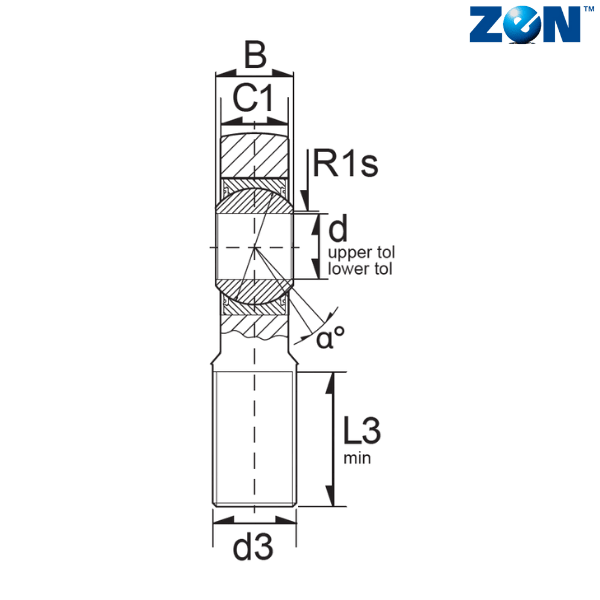

d (mm) - 80
d2 (mm) - 180
L2 (mm) - 360
B (mm) - 55
C1 (mm) - 47
D (mm) - 120
d1 (mm) - 89.4
d3 - M64X4
Dk (mm) - 105
h (mm) - 270
L1 (mm) - 140
L7 (mm) - 100
R1 (mm) - 1
α - 6
Weight (kg) - 12.5
Dynamic Load Rating (N) - 1012500
Static Load Rating (N) - 620100
Radial Clearance - 0-0.072
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
