Description
Brand - ZEN
Item Number - GAR8-UK ZEN
Category - Rod Ends

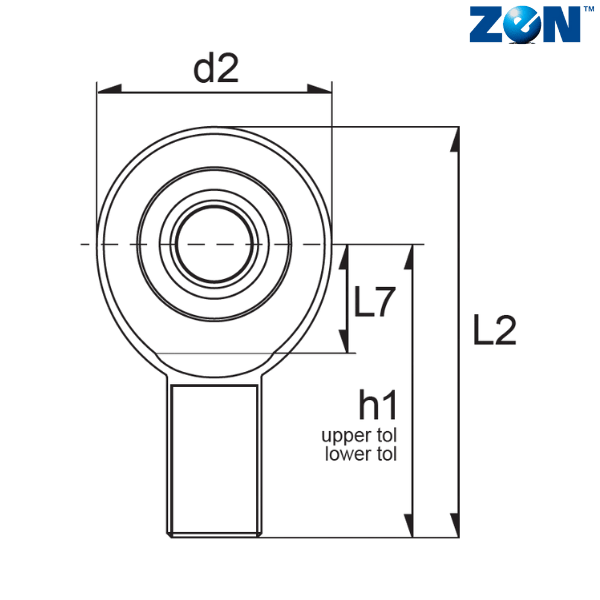

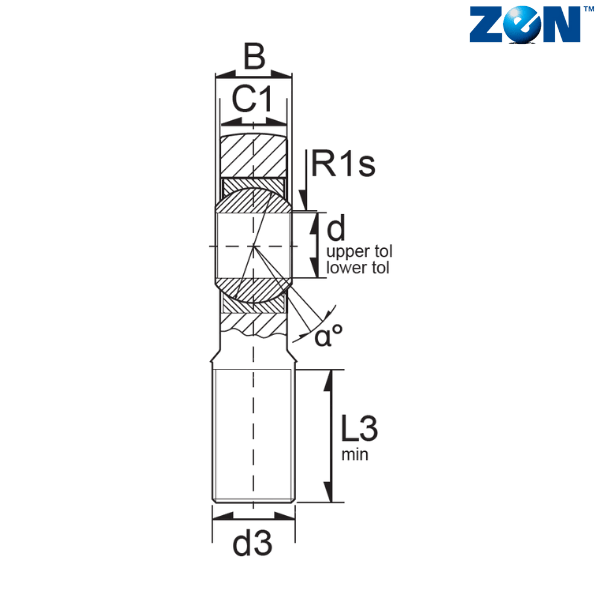

d (mm) - 8
d2 (mm) - 24
L2 (mm) - 54
B (mm) - 8
C1 (mm) - 6
D (mm) - 16
d1 (mm) - 10.2
d3 - M8
Dk (mm) - 13
h (mm) - 42
L1 (mm) - 22
L7 (mm) - 14
R1 (mm) - 0.3
α - 15
Weight (kg) - 0.033
Dynamic Load Rating (N) - 5265
Static Load Rating (N) - 11610
Radial Clearance - 0-0.032
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
