Description
Brand - ZEN
Item Number - GAR60-UK-2RS ZEN
Category - Rod Ends

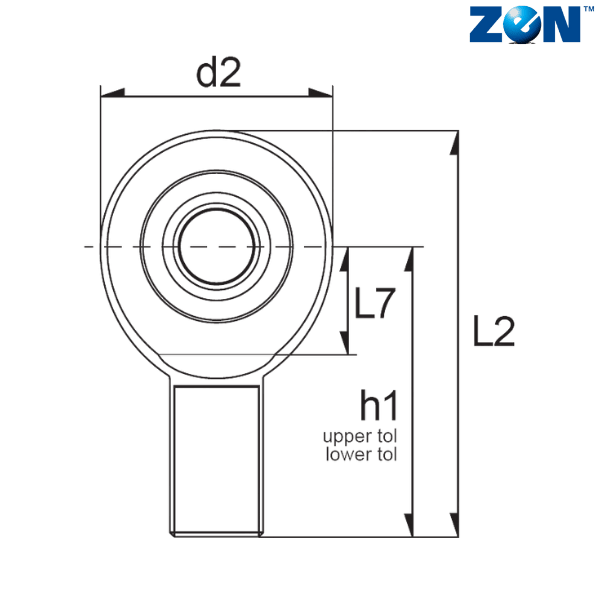

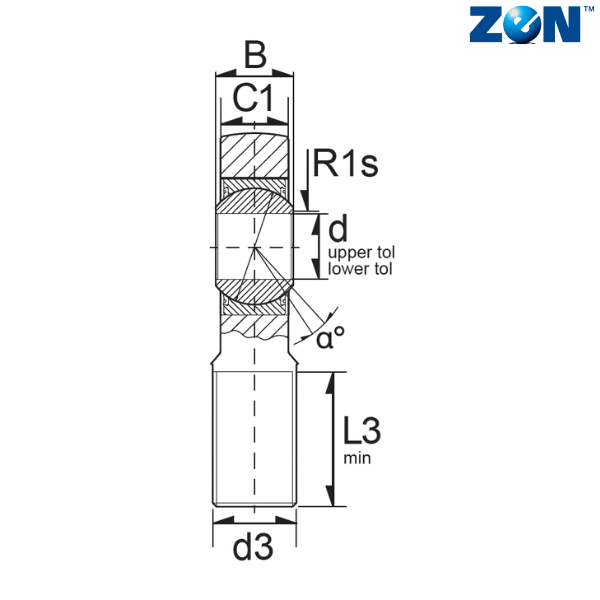

d (mm) - 60
d2 (mm) - 135
L2 (mm) - 277.5
B (mm) - 44
C1 (mm) - 38
D (mm) - 90
d1 (mm) - 66.8
d3 - M52X3
Dk (mm) - 80
h (mm) - 210
L1 (mm) - 115
L7 (mm) - 75
R1 (mm) - 1
α - 6
Weight (kg) - 5.91
Dynamic Load Rating (N) - 621000
Static Load Rating (N) - 436500
Radial Clearance - 0-0.060
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
