Description
Brand - ZEN
Item Number - GAR6-UK ZEN
Category - Rod Ends

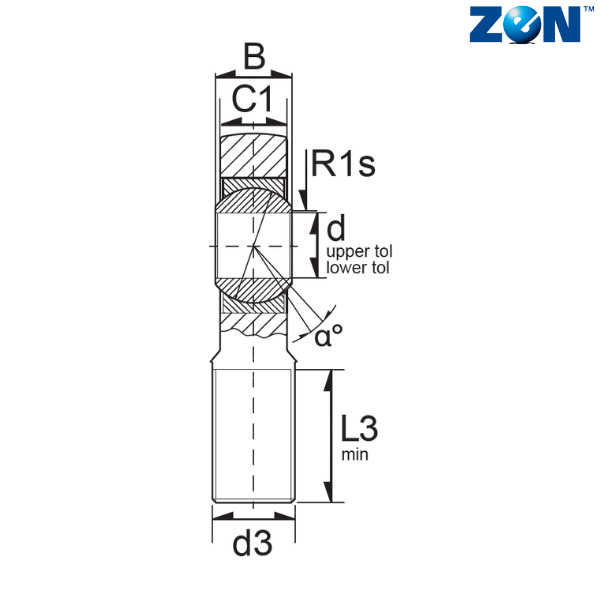

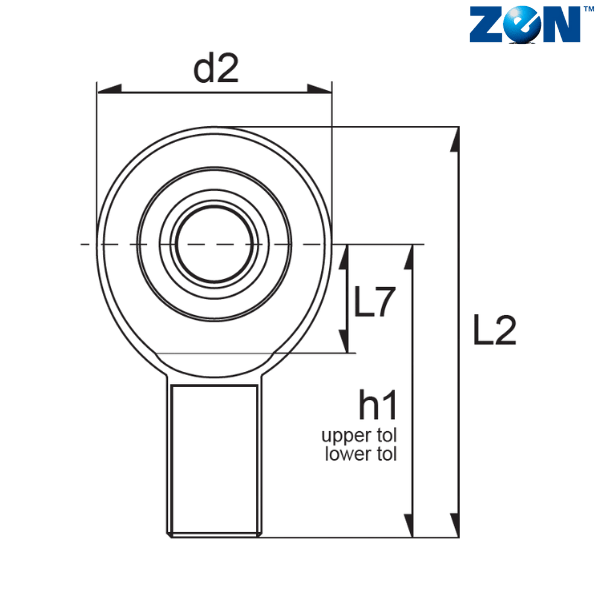

d (mm) - 6
d2 (mm) - 21
L2 (mm) - 46.5
B (mm) - 6
C1 (mm) - 4.4
D (mm) - 14
d1 (mm) - 8
d3 - M6
Dk (mm) - 10
h (mm) - 36
L1 (mm) - 18
L7 (mm) - 12
R1 (mm) - 0.3
α - 13
Weight (kg) - 0.018
Dynamic Load Rating (N) - 3240
Static Load Rating (N) - 6237
Radial Clearance - 0-0.032
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
