Description
Brand - ZEN
Item Number - GAR50-DO-2RS ZEN
Category - Rod Ends

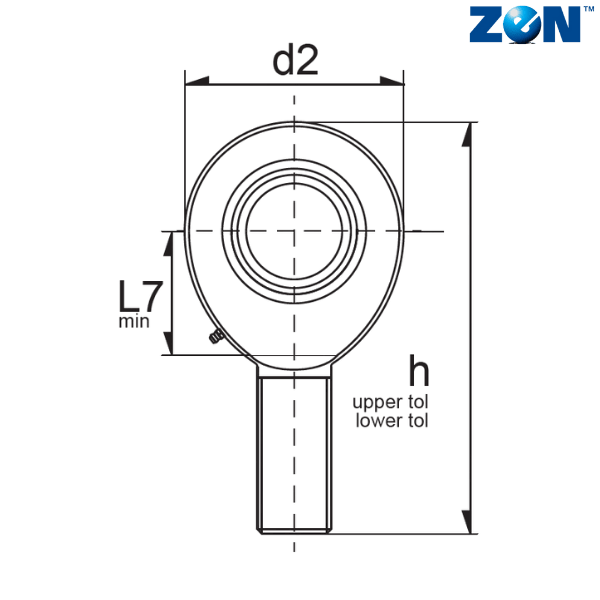

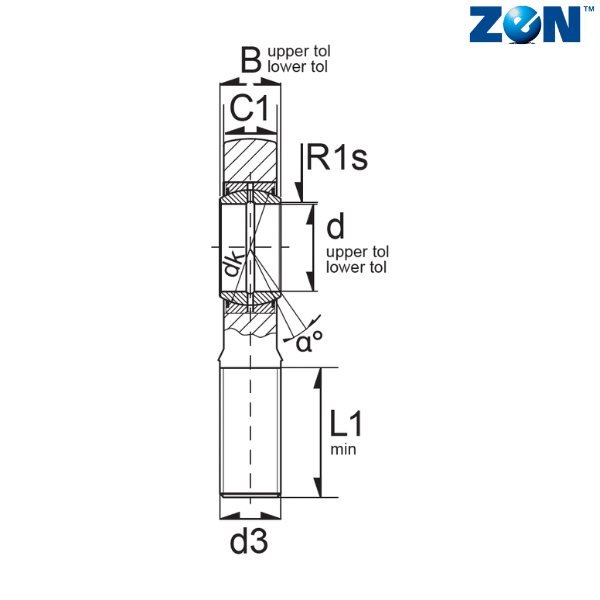

d (mm) - 50
d2 (mm) - 112
L2 (mm) - 241
B (mm) - 35
C1 (mm) - 30
D (mm) - 75
d1 (mm) - 56
d3 - M45X3
Dk (mm) - 66
h (mm) - 185
L1 (mm) - 107
L7 (mm) - 60
R1 (mm) - 0.6
α - 6
Weight (kg) - 3.53
Dynamic Load Rating (N) - 141300
Static Load Rating (N) - 282600
Radial Clearance - 0.043-0.12
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
