Description
Brand - ZEN
Item Number - GAR40-DO-2RS ZEN
Category - Rod Ends

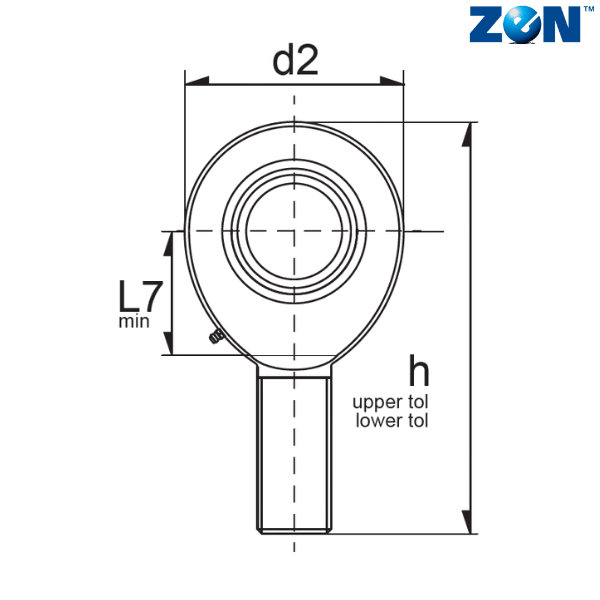

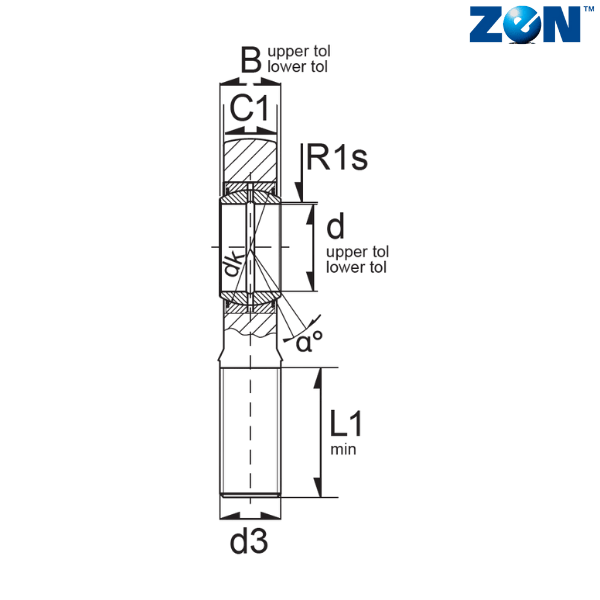

d (mm) - 40
d2 (mm) - 92
L2 (mm) - 196
B (mm) - 28
C1 (mm) - 23
D (mm) - 62
d1 (mm) - 45
d3 - M39X3
Dk (mm) - 53
h (mm) - 150
L1 (mm) - 86
L7 (mm) - 48
R1 (mm) - 0.6
α - 7
Weight (kg) - 1.97
Dynamic Load Rating (N) - 89190
Static Load Rating (N) - 174600
Radial Clearance - 0.043-0.12
Notes :
2RS - Rubber Seals
Requiring Maintenance
** Images are for representation purposes only
