Description
Brand - ZEN
Item Number - GAR35-UK-2RS ZEN
Category - Rod Ends

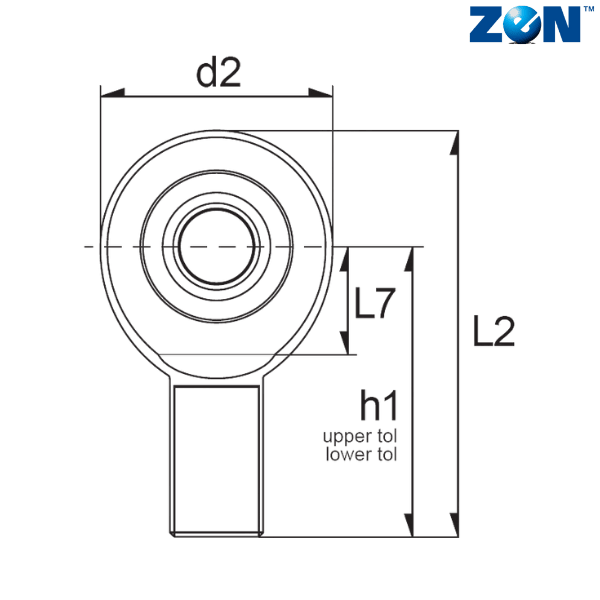

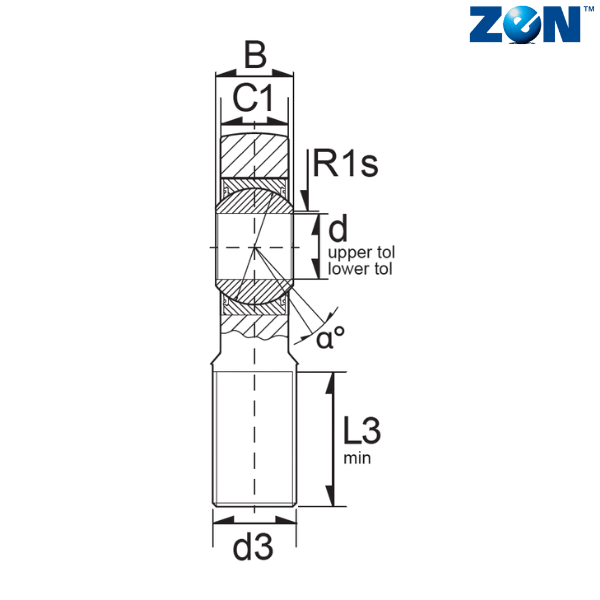

d (mm) - 35
d2 (mm) - 82
L2 (mm) - 181
B (mm) - 25
C1 (mm) - 21
D (mm) - 55
d1 (mm) - 39.8
d3 - M36X3
Dk (mm) - 47
h (mm) - 140
L1 (mm) - 82
L7 (mm) - 42
R1 (mm) - 0.6
α - 6
Weight (kg) - 1.53
Dynamic Load Rating (N) - 189000
Static Load Rating (N) - 143100
Radial Clearance - 0-0.050
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
