Description
Brand - ZEN
Item Number - GAR30-DO ZEN
Category - Rod Ends

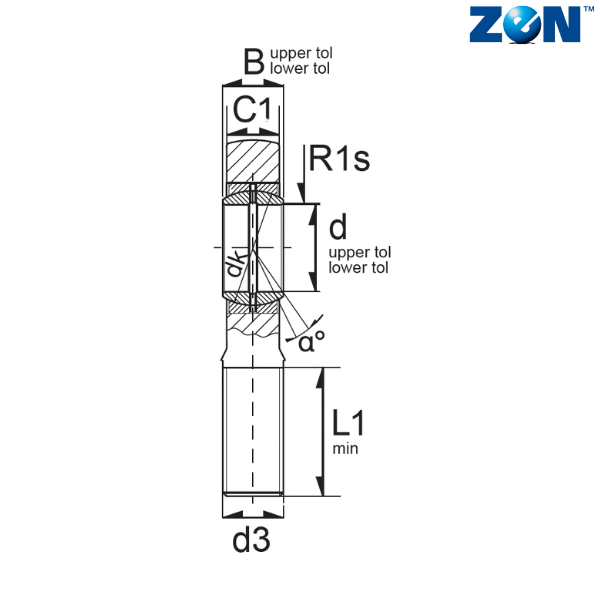

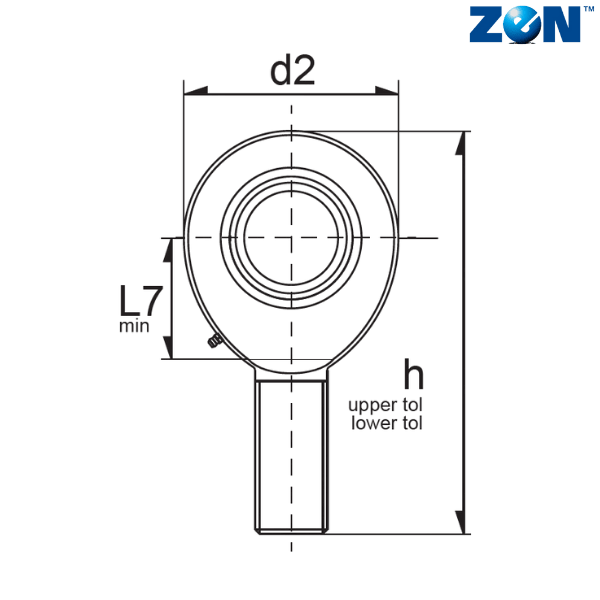

d (mm) - 30
d2 (mm) - 73
L2 (mm) - 146.5
B (mm) - 22
C1 (mm) - 19
D (mm) - 47
d1 (mm) - 34.2
d3 - M30X2
Dk (mm) - 40.7
h (mm) - 110
L1 (mm) - 65
L7 (mm) - 37
R1 (mm) - 0.6
α - 6
Weight (kg) - 0.95
Dynamic Load Rating (N) - 56070
Static Load Rating (N) - 107100
Radial Clearance - 0.037-0.11
Notes :
Requiring Maintenance
** Images are for representation purposes only
