Description
Brand - ZEN
Item Number - GAR25-UK ZEN
Category - Rod Ends

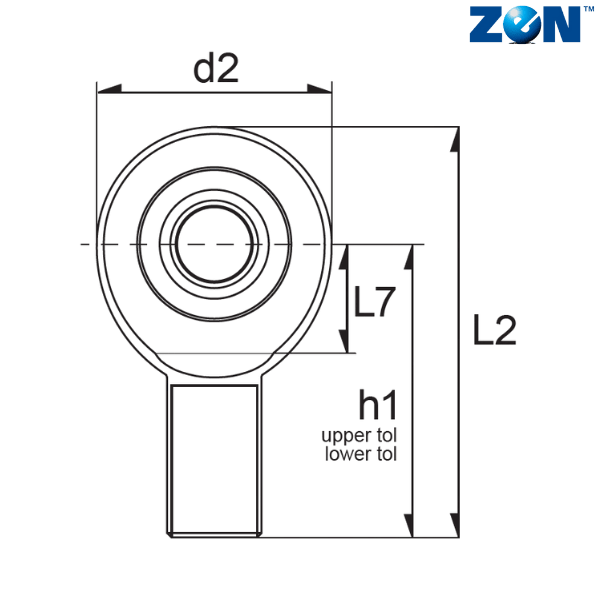

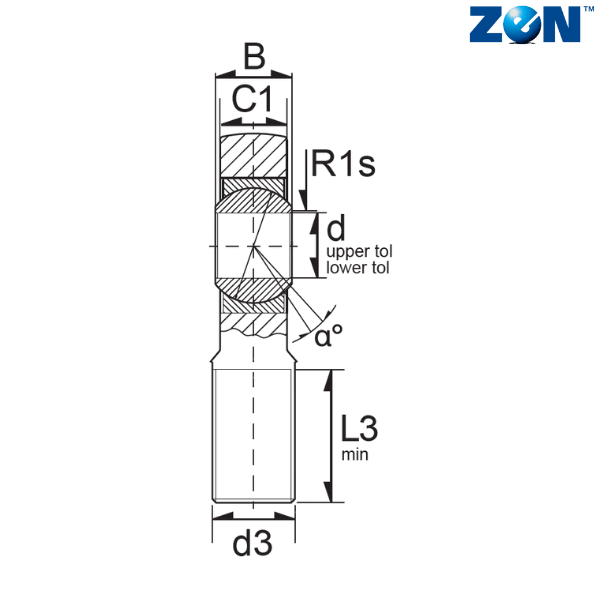

d (mm) - 25
d2 (mm) - 64
L2 (mm) - 126
B (mm) - 20
C1 (mm) - 17
D (mm) - 42
d1 (mm) - 29.3
d3 - M24X2
Dk (mm) - 35.5
h (mm) - 94
L1 (mm) - 53
L7 (mm) - 32
R1 (mm) - 0.6
α - 7
Weight (kg) - 0.6
Dynamic Load Rating (N) - 45990
Static Load Rating (N) - 94500
Radial Clearance - 0-0.05
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
