Description
Brand - ZEN
Item Number - GAR15-DO ZEN
Category - Rod Ends

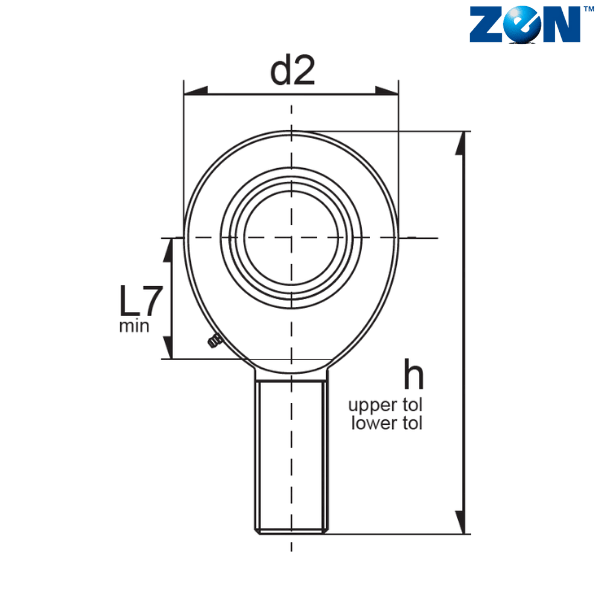

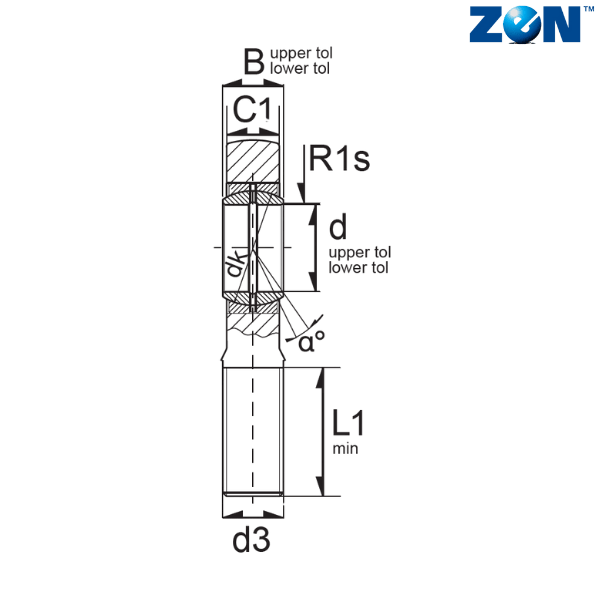

d (mm) - 15
d2 (mm) - 40
L2 (mm) - 83
B (mm) - 12
C1 (mm) - 10
D (mm) - 26
d1 (mm) - 18.4
d3 - M14
Dk (mm) - 22
h (mm) - 63
L1 (mm) - 34
L7 (mm) - 20
R1 (mm) - 0.3
α - 8
Weight (kg) - 0.15
Dynamic Load Rating (N) - 15210
Static Load Rating (N) - 37440
Radial Clearance - 0.030-0.082
Notes :
Requiring Maintenance
** Images are for representation purposes only
