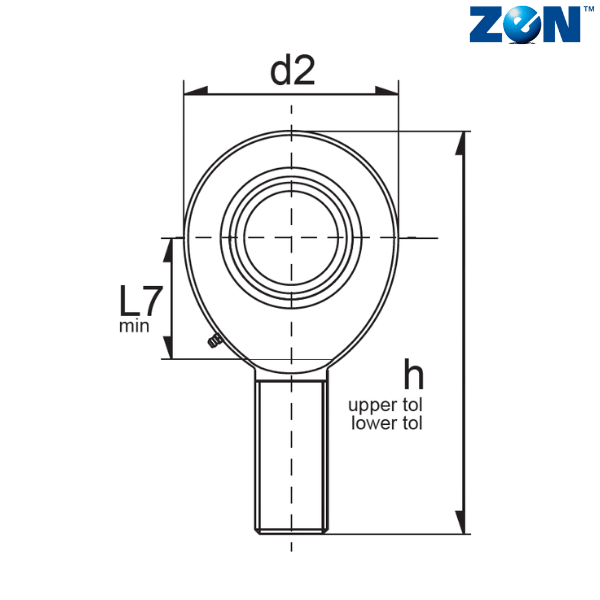

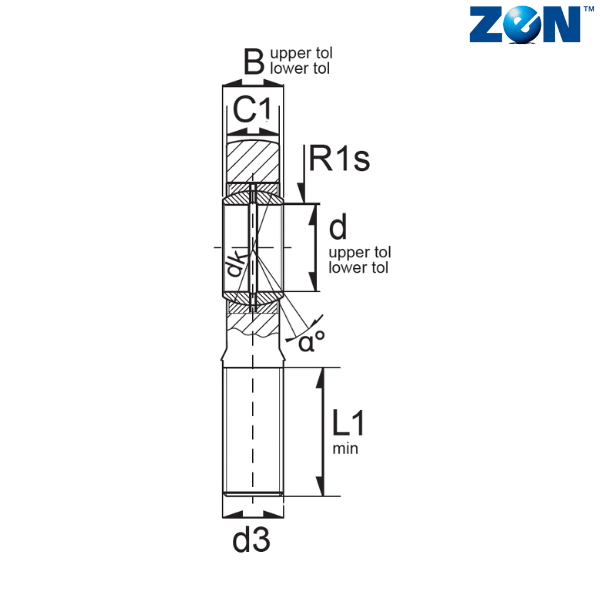

Description
Brand - ZEN
Item Number - GAR12-DO ZEN
Category - Rod Ends
d (mm) - 12
d2 (mm) - 34
L2 (mm) - 71
B (mm) - 10
C1 (mm) - 8
D (mm) - 22
d1 (mm) - 14.9
d3 - M12
Dk (mm) - 18
h (mm) - 54
L1 (mm) - 28
L7 (mm) - 18
R1 (mm) - 0.3
α - 11
Weight (kg) - 0.086
Dynamic Load Rating (N) - 9720
Static Load Rating (N) - 27180
Radial Clearance - 0.023-0.068
Notes :
Requiring Maintenance
** Images are for representation purposes only
