Description
Brand - ZEN
Item Number - GAR10-UK ZEN
Category - Rod Ends

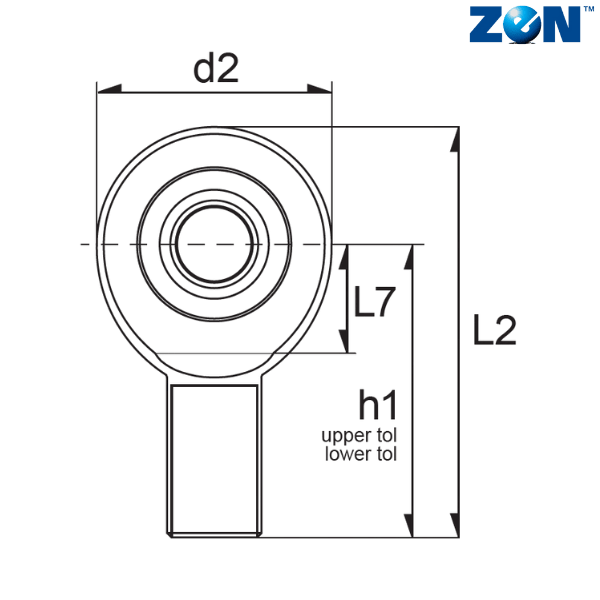

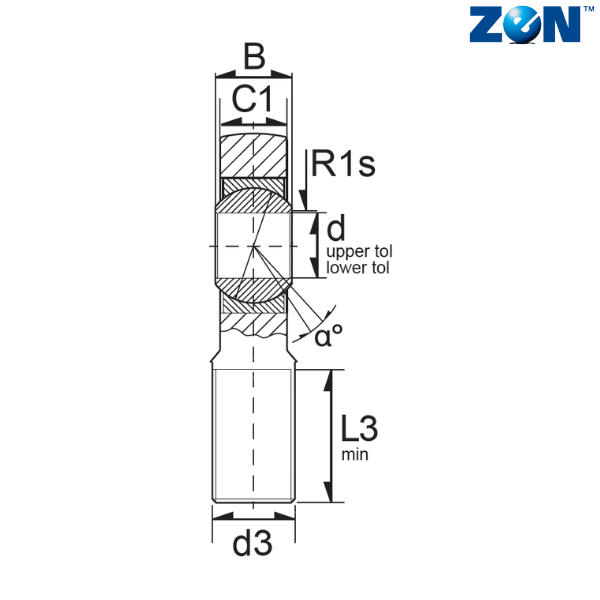

d (mm) - 10
d2 (mm) - 29
L2 (mm) - 62.5
B (mm) - 9
C1 (mm) - 7
D (mm) - 19
d1 (mm) - 13.2
d3 - M10
Dk (mm) - 16
h (mm) - 48
L1 (mm) - 26
L7 (mm) - 15
R1 (mm) - 0.3
α - 12
Weight (kg) - 0.056
Dynamic Load Rating (N) - 7776
Static Load Rating (N) - 18540
Radial Clearance - 0-0.032
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
