Description
Brand - ZEN
Item Number - GAL70-UK-2RS ZEN
Category - Rod Ends

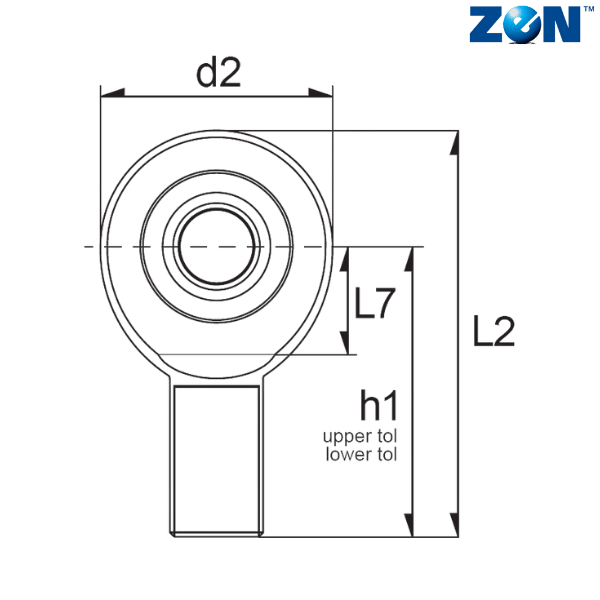

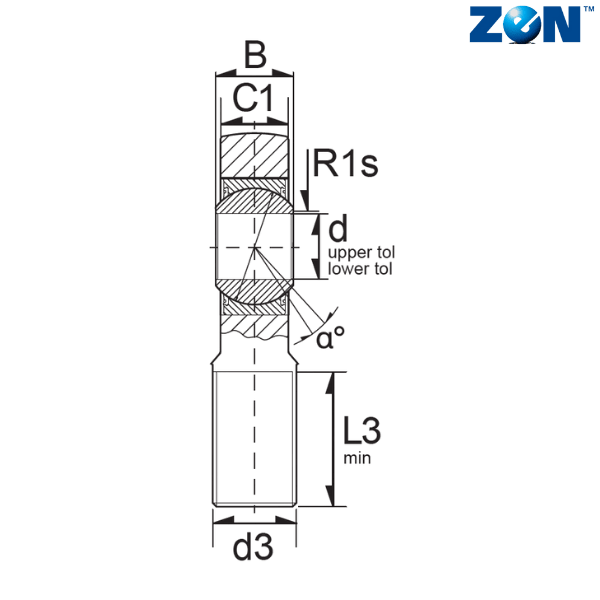

d (mm) - 70
d2 (mm) - 160
L2 (mm) - 315
B (mm) - 49
C1 (mm) - 42
D (mm) - 105
d1 (mm) - 77.9
d3 - M56X4
Dk (mm) - 92
h (mm) - 235
L1 (mm) - 125
L7 (mm) - 87
R1 (mm) - 1
α - 6
Weight (kg) - 8.51
Dynamic Load Rating (N) - 796500
Static Load Rating (N) - 507600
Radial Clearance - 0-0.060
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
