Description
Brand - ZEN
Item Number - GAL45-UK-2RS ZEN
Category - Rod Ends

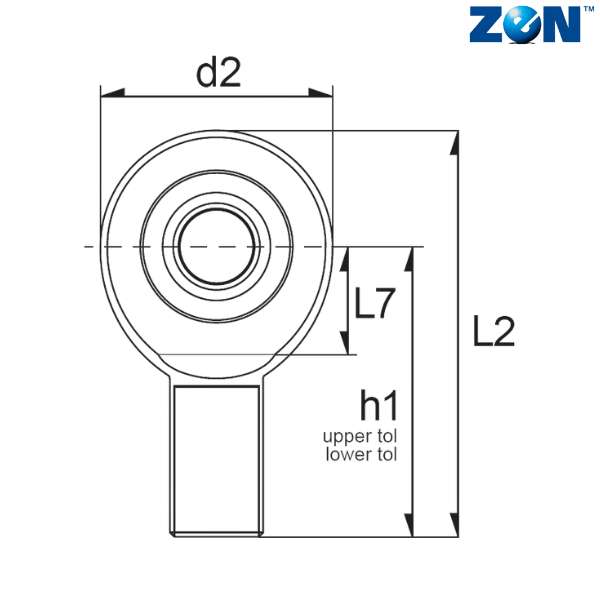

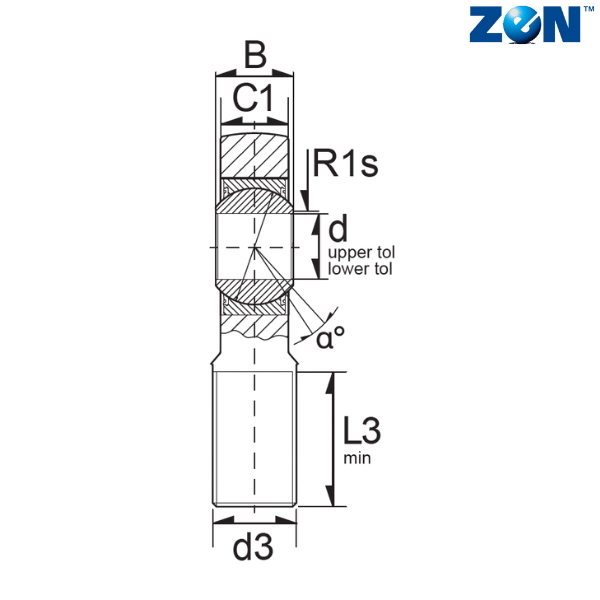

d (mm) - 45
d2 (mm) - 102
L2 (mm) - 214
B (mm) - 32
C1 (mm) - 27
D (mm) - 68
d1 (mm) - 50.8
d3 - M42X3
Dk (mm) - 60
h (mm) - 163
L1 (mm) - 94
L7 (mm) - 52
R1 (mm) - 0.6
α - 7
Weight (kg) - 2.65
Dynamic Load Rating (N) - 324000
Static Load Rating (N) - 233100
Radial Clearance - 0-0.060
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
