Description
Brand - ZEN
Item Number - GAL20-UK ZEN
Category - Rod Ends

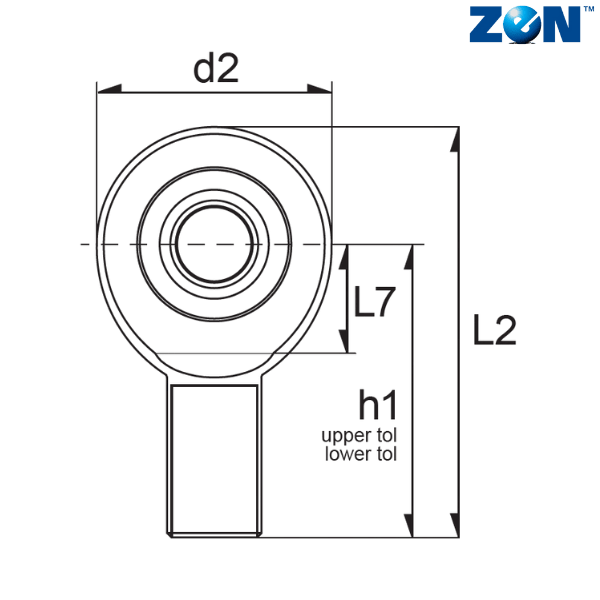

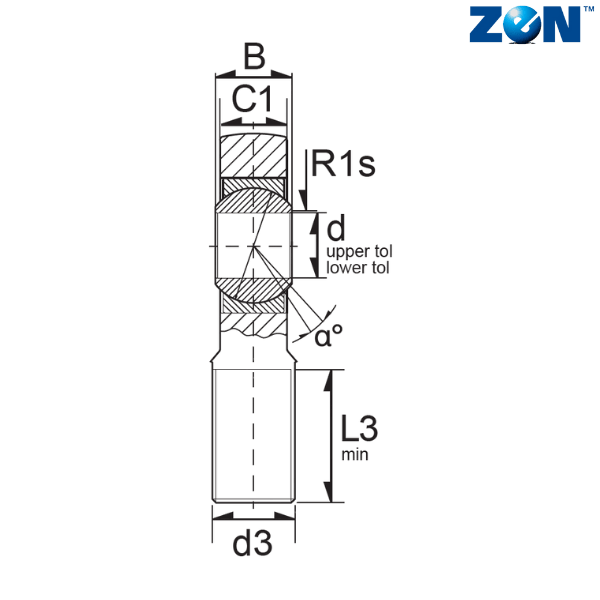

d (mm) - 20
d2 (mm) - 53
L2 (mm) - 104.5
B (mm) - 16
C1 (mm) - 13
D (mm) - 35
d1 (mm) - 24.2
d3 - M20X1.5
Dk (mm) - 29
h (mm) - 78
L1 (mm) - 43
L7 (mm) - 27
R1 (mm) - 0.3
α - 9
Weight (kg) - 0.33
Dynamic Load Rating (N) - 28170
Static Load Rating (N) - 68040
Radial Clearance - 0-0.04
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
