Description
Brand - ZEN
Item Number - GAL17-UK-2RS ZEN
Category - Rod Ends

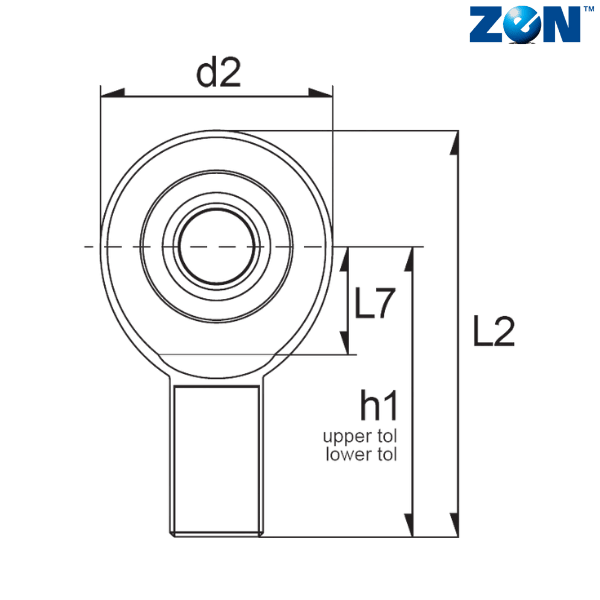

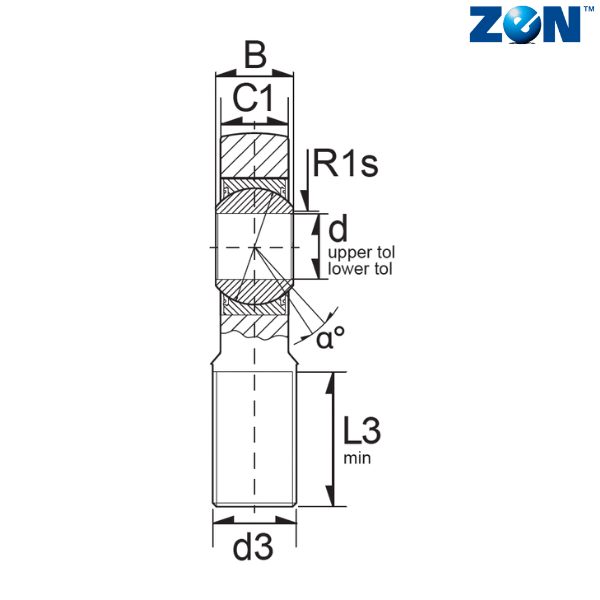

d (mm) - 17
d2 (mm) - 46
L2 (mm) - 92
B (mm) - 14
C1 (mm) - 11
D (mm) - 30
d1 (mm) - 20.7
d3 - M16
Dk (mm) - 25
h (mm) - 69
L1 (mm) - 36
L7 (mm) - 23
R1 (mm) - 0.3
α - 10
Weight (kg) - 0.2
Dynamic Load Rating (N) - 20250
Static Load Rating (N) - 50850
Radial Clearance - 0-0.040
Notes :
2RS - Rubber Seals
Maintenance-Free Rod Ends
** Images are for representation purposes only
