Description
Brand - ZEN
Item Number - GAKR8-PB ZEN
Category - Rod Ends

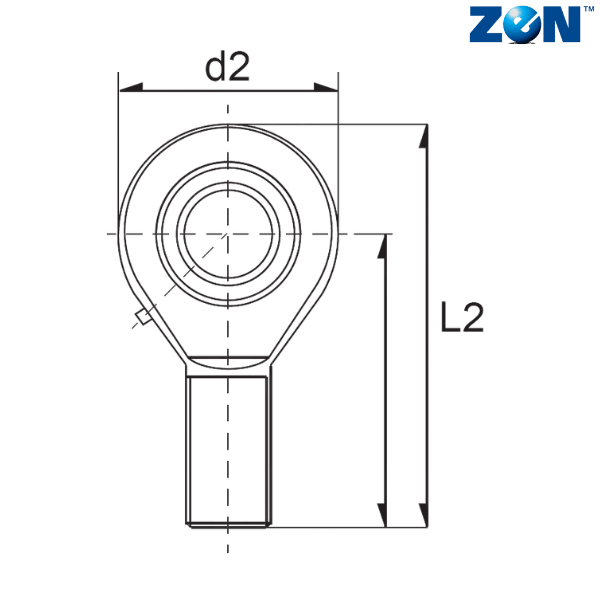

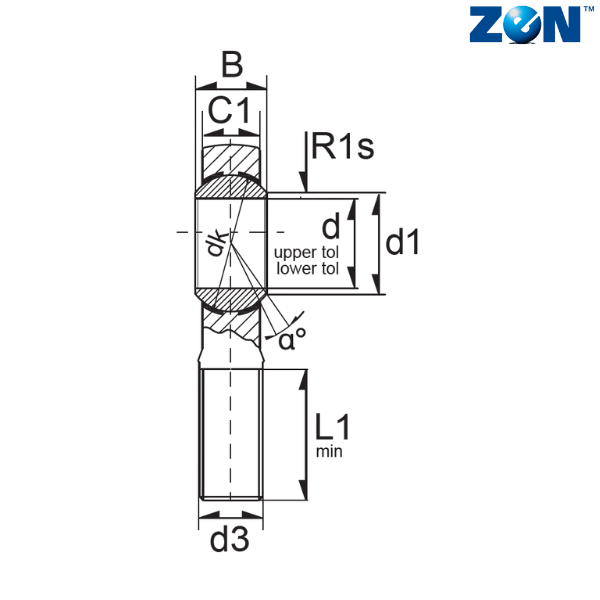

d (mm) - 8
d2 (mm) - 24
L2 (mm) - 54
B (mm) - 12
C1 (mm) - 9
D (mm) - 19
d1 (mm) - 10.3
d3 - M8
Dk (mm) - 15.875
h (mm) - 42
L1 (mm) - 25
R1 (mm) - 0.3
α - 14
Weight (kg) - 0.038
Dynamic Load Rating (N) - 6426
Static Load Rating (N) - 11610
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
