Description
Brand - ZEN
Item Number - GAKR6-PW ZEN
Category - Rod Ends

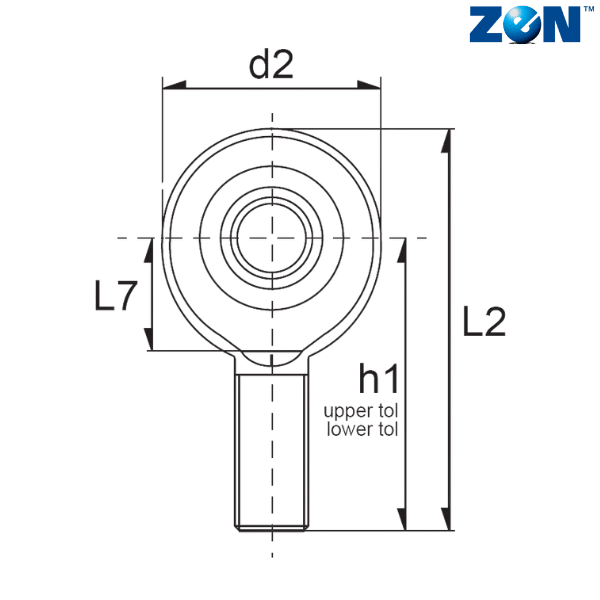

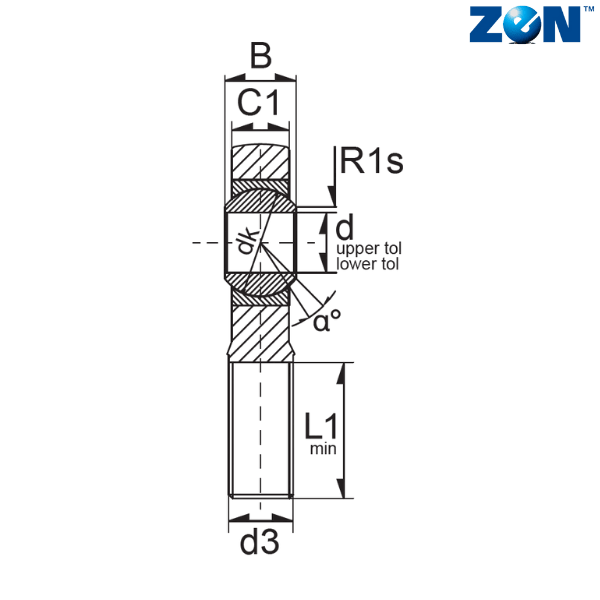

d (mm) - 6
d2 (mm) - 20
L2 (mm) - 46
B (mm) - 9
C1 (mm) - 6.75
D (mm) - 16
d1 (mm) - 9
d3 - M6
Dk (mm) - 12.7
h (mm) - 36
L1 (mm) - 21
R1 (mm) - 0.3
α - 13
Weight (kg) - 0.022
Dynamic Load Rating (N) - 6975
Static Load Rating (N) - 6237
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
