Description
Brand - ZEN
Item Number - GAKR5-PB ZEN
Category - Rod Ends

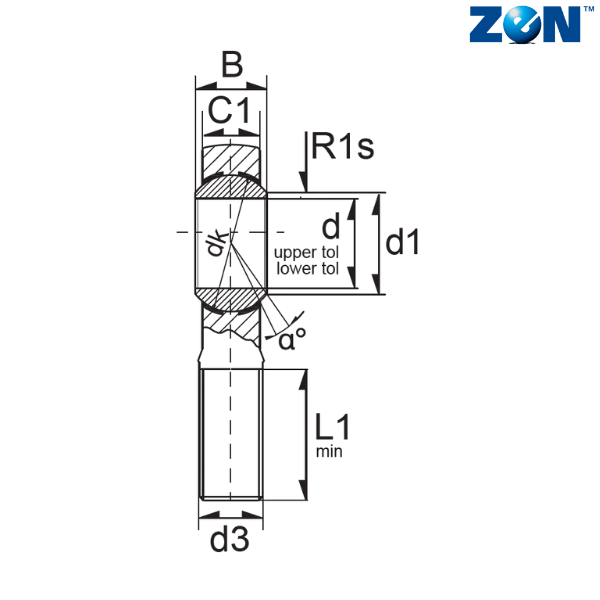

d (mm) - 5

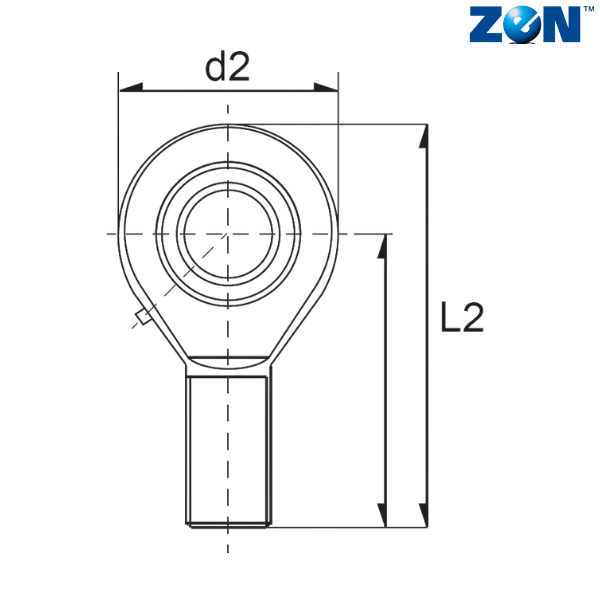

d2 (mm) - 18
L2 (mm) - 42
B (mm) - 8
C1 (mm) - 6
D (mm) - 16
d1 (mm) - 7.7
d3 - M5x0.8
Dk (mm) - 11.11
h (mm) - 33
L1 (mm) - 19
R1 (mm) - 0.3
α - 13
Weight (kg) - 0.013
Dynamic Load Rating (N) - 5130
Static Load Rating (N) - 5400
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
