Description
Brand - ZEN
Item Number - GAKR30-PW ZEN
Category - Rod Ends

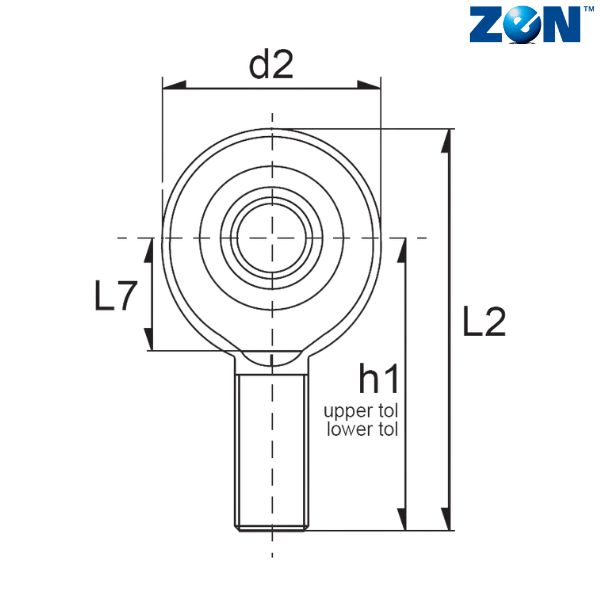

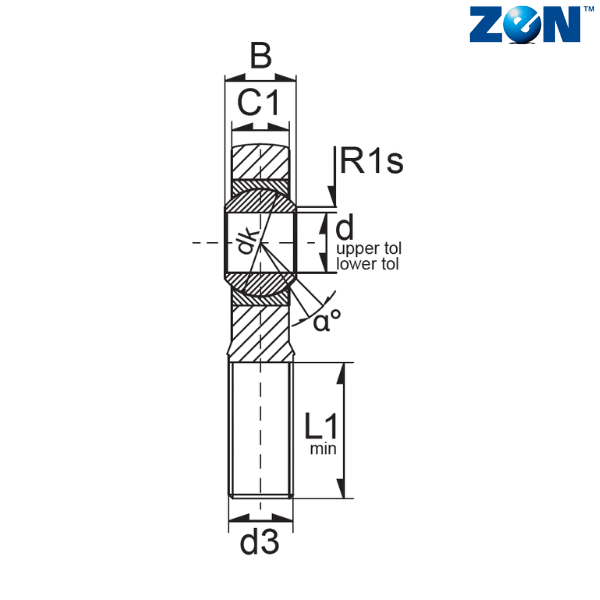

d (mm) - 30
d2 (mm) - 70
L2 (mm) - 145
B (mm) - 37
C1 (mm) - 25
D (mm) - 55
d1 (mm) - 34.8
d3 - M30x2
Dk (mm) - 50.8
h (mm) - 110
L1 (mm) - 66
L7 (mm) - 37
R1 (mm) - 0.3
α - 17
Weight (kg) - 1.1
Dynamic Load Rating (N) - 102600
Static Load Rating (N) - 86310
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
