Description
Brand - ZEN
Item Number - GAKR25-PW ZEN
Category - Rod Ends

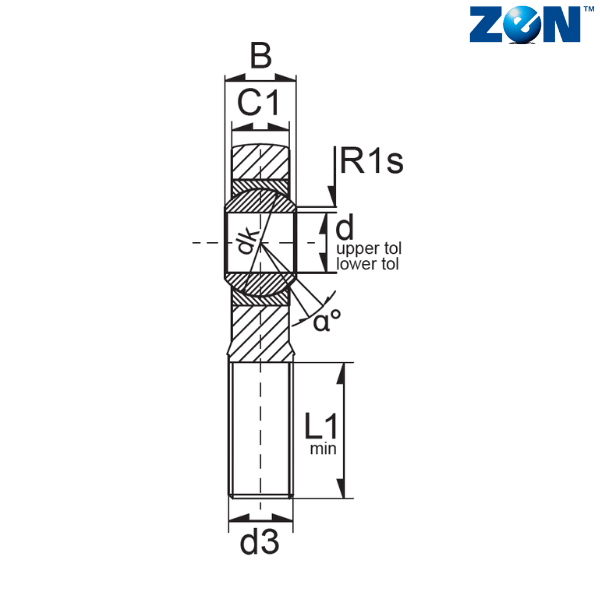

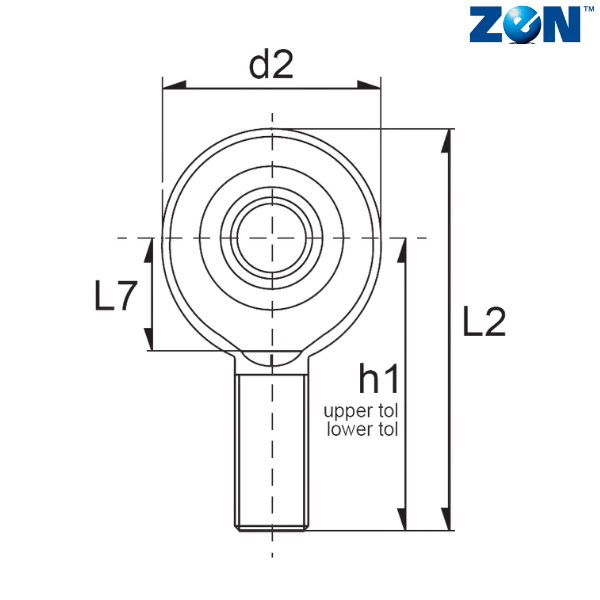

d (mm) - 25
d2 (mm) - 60
L2 (mm) - 124
B (mm) - 31
C1 (mm) - 22
D (mm) - 47
d1 (mm) - 29.6
d3 - M24x2
Dk (mm) - 42.85
h (mm) - 94
L1 (mm) - 55
L7 (mm) - 32
R1 (mm) - 0.3
α - 15
Weight (kg) - 0.67
Dynamic Load Rating (N) - 76320
Static Load Rating (N) - 65610
Radial Clearance - 0-0.035
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
