Description
Brand - ZEN
Item Number - GAKR18-PW ZEN
Category - Rod Ends

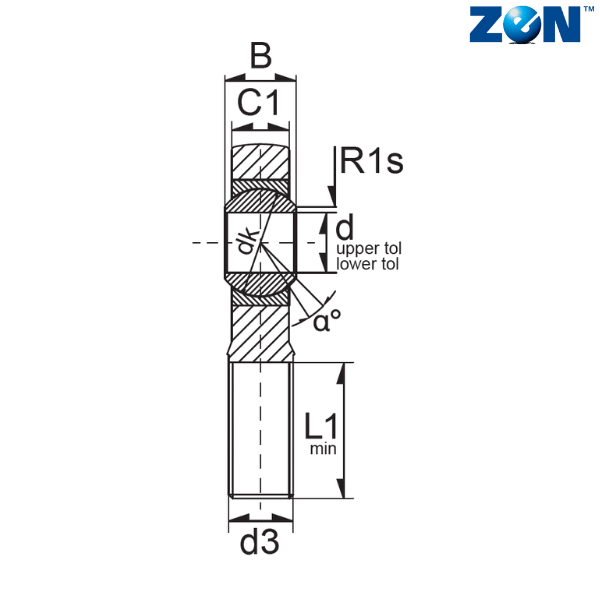

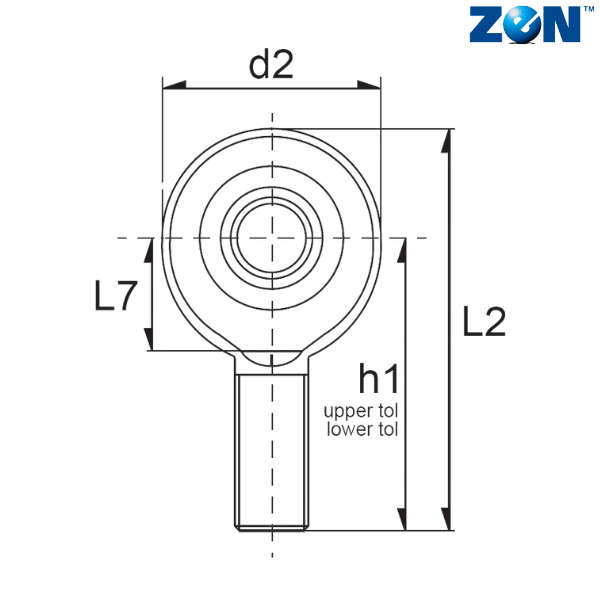

d (mm) - 18
d2 (mm) - 46
L2 (mm) - 95
B (mm) - 23
C1 (mm) - 16.5
D (mm) - 35
d1 (mm) - 21.8
d3 - M18X1.5
Dk (mm) - 31.75
h (mm) - 72
L1 (mm) - 41
L7 (mm) - 25
R1 (mm) - 0.3
α - 15
Weight (kg) - 0.28
Dynamic Load Rating (N) - 42570
Static Load Rating (N) - 42300
Radial Clearance - 0-0.036
Notes :
Maintenance-Free Rod Ends
** Images are for representation purposes only
