Description
Brand - ZEN
Item Number - GAKR16-PB ZEN
Category - Rod Ends

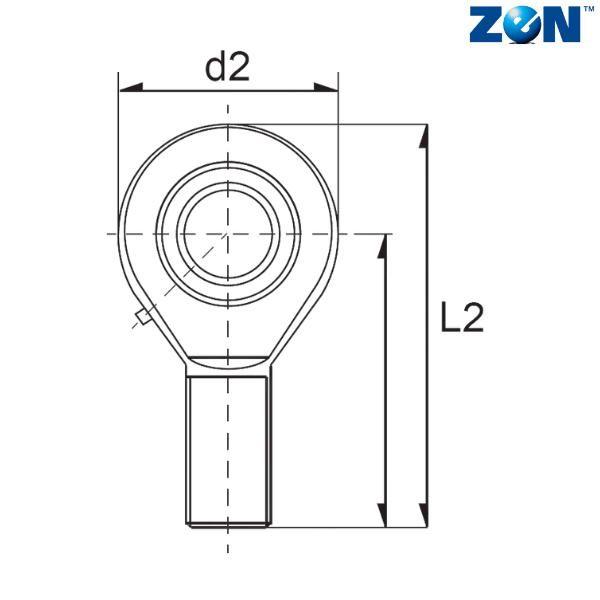

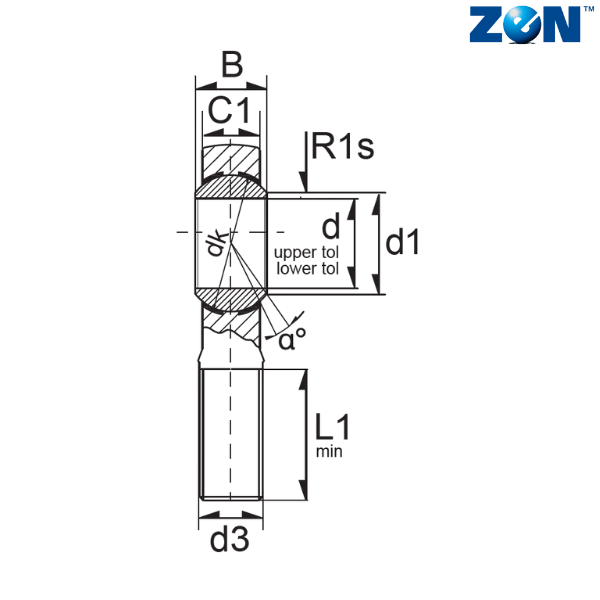

d (mm) - 16
d2 (mm) - 42
L2 (mm) - 87
B (mm) - 21
C1 (mm) - 15
D (mm) - 32
d1 (mm) - 19.3
d3 - M16
Dk (mm) - 28.575
h (mm) - 66
L1 (mm) - 37
L7 (mm) - 23
R1 (mm) - 0.3
α - 15
Weight (kg) - 0.21
Dynamic Load Rating (N) - 19260
Static Load Rating (N) - 40770
Radial Clearance - 0-0.035
Notes :
Requiring Maintenance
** Images are for representation purposes only
